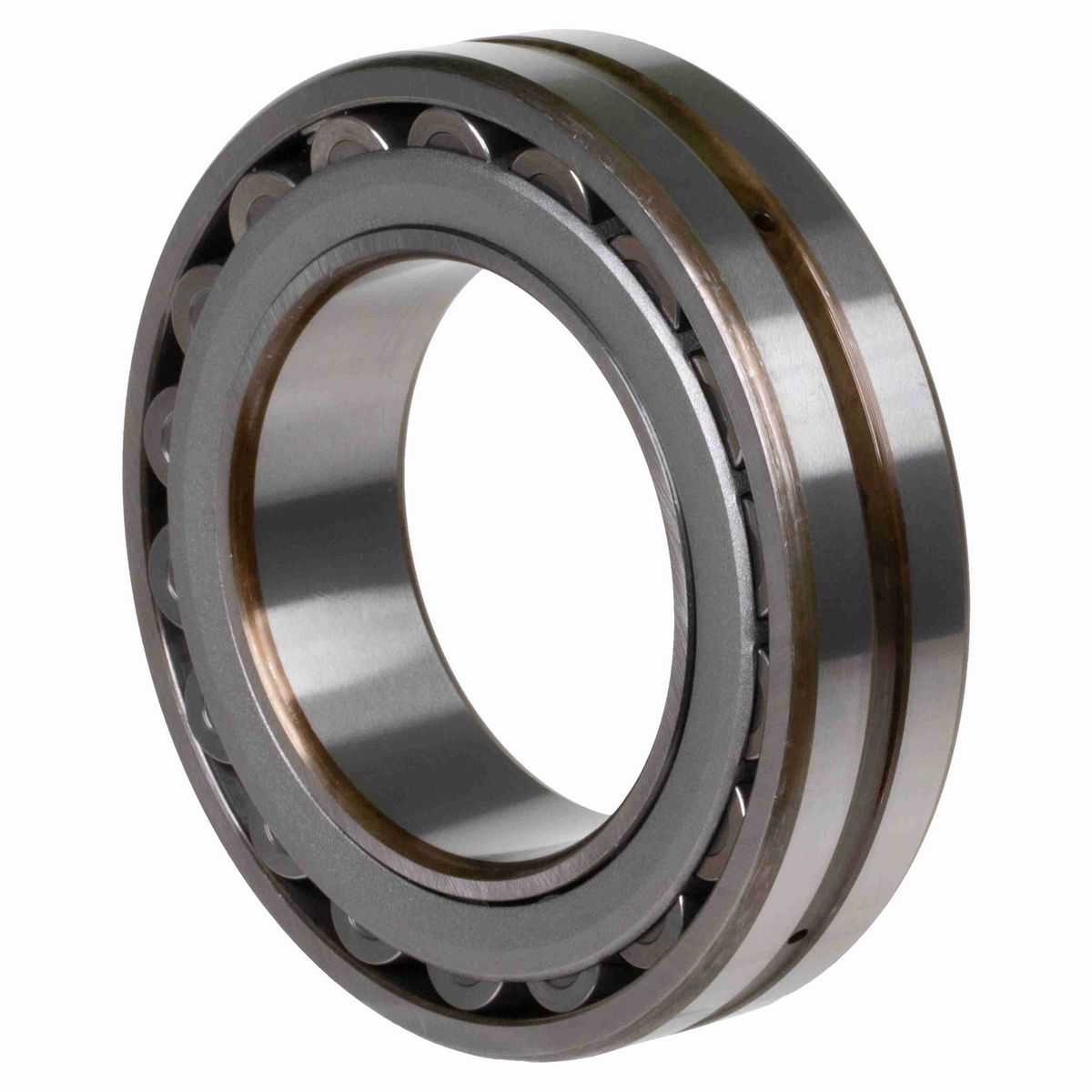

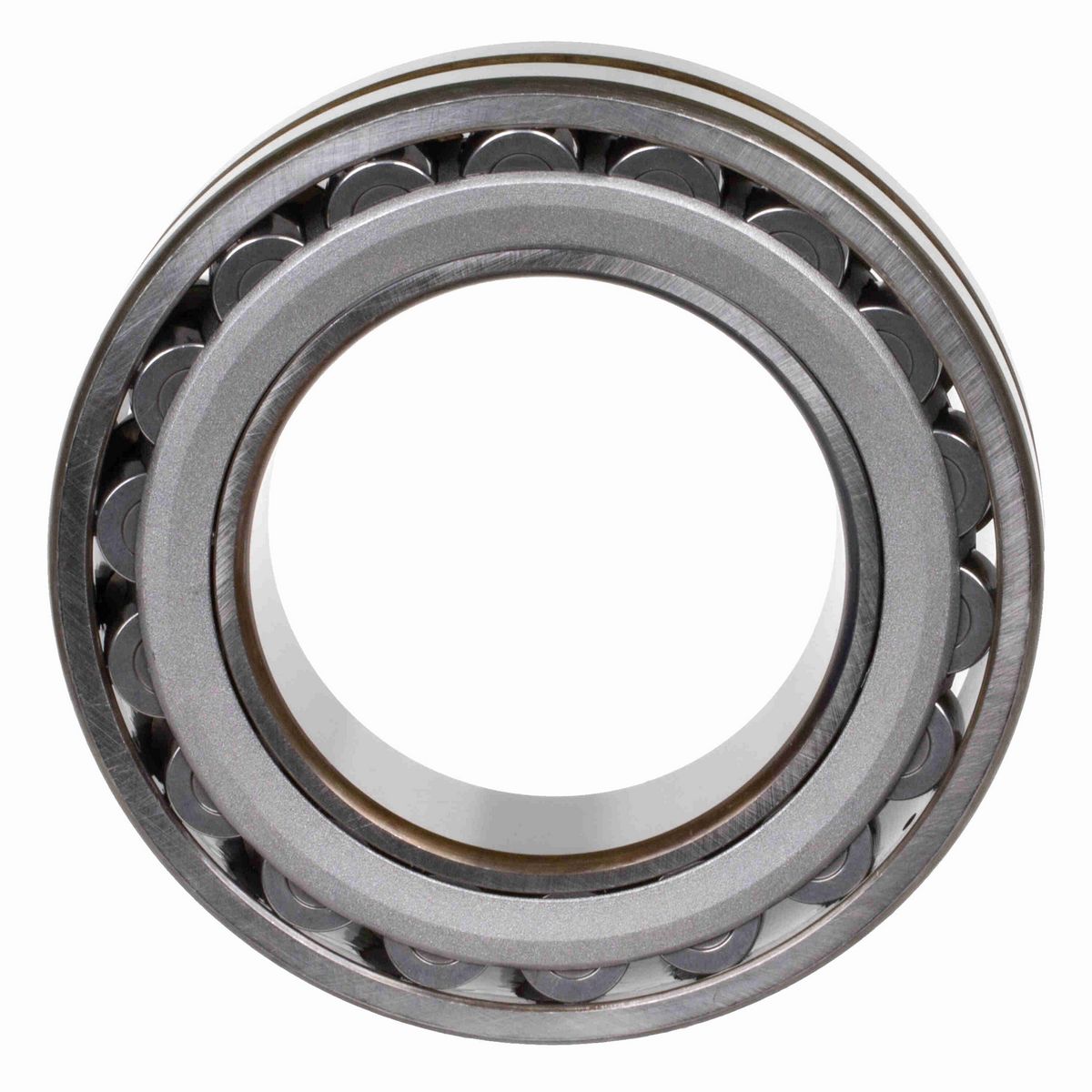

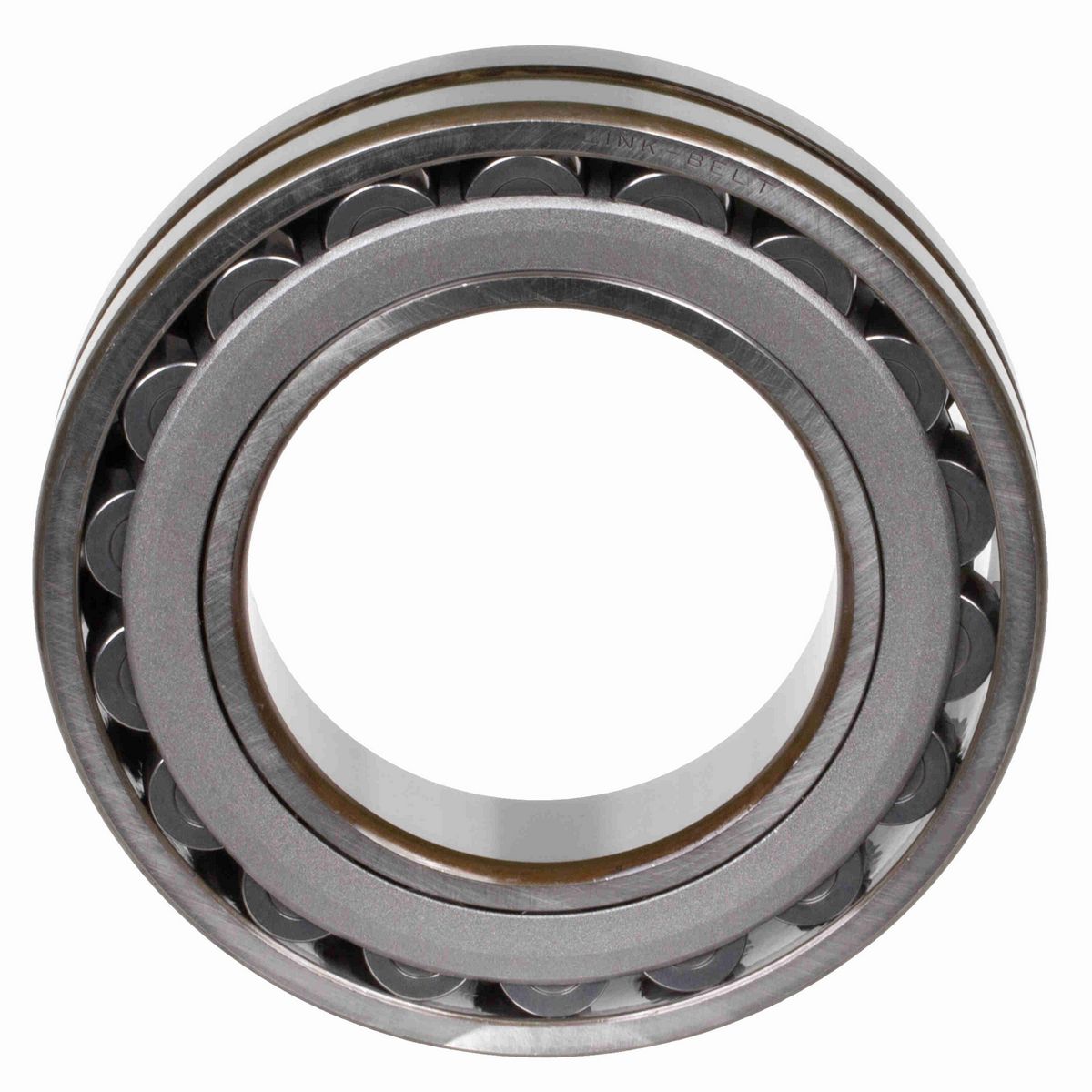

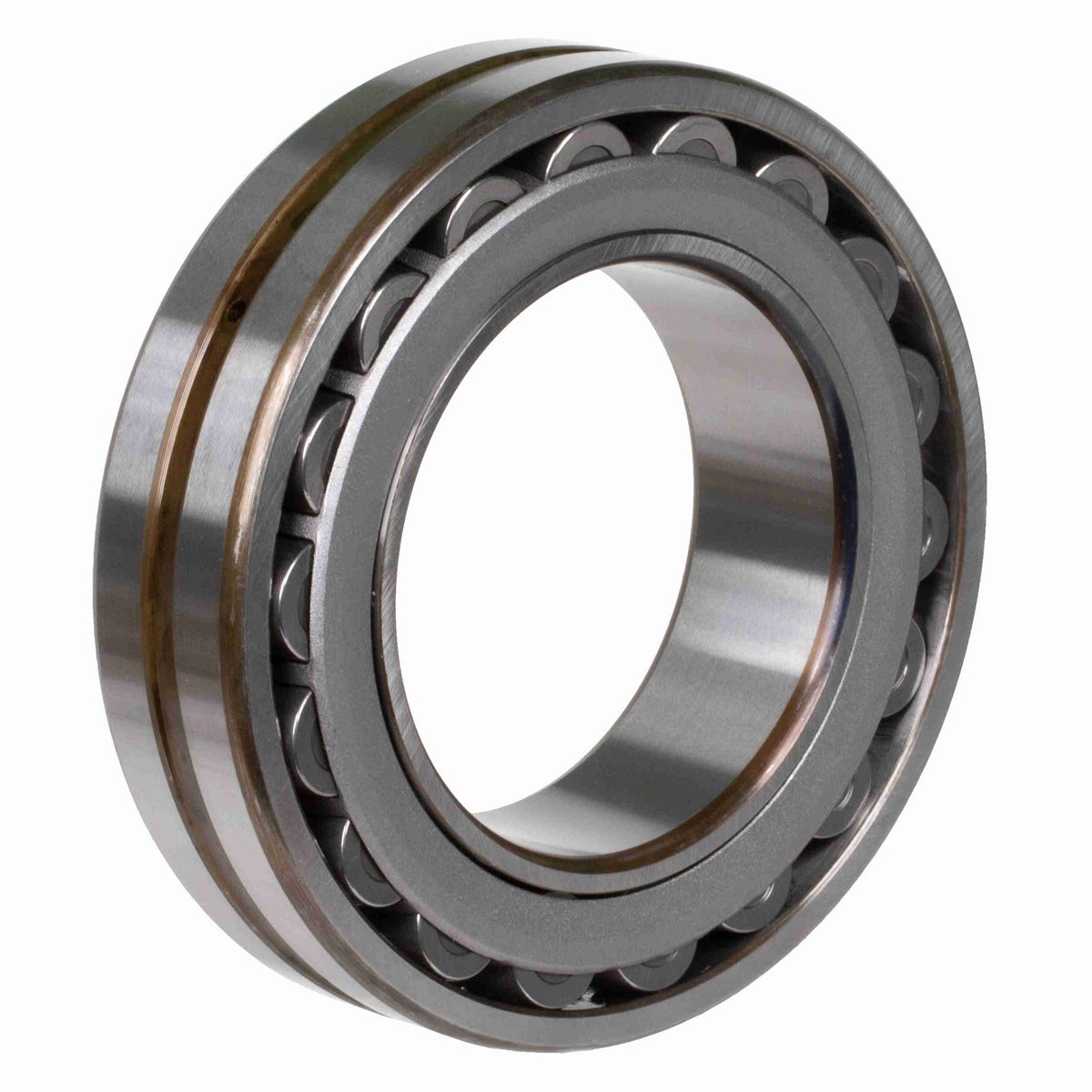

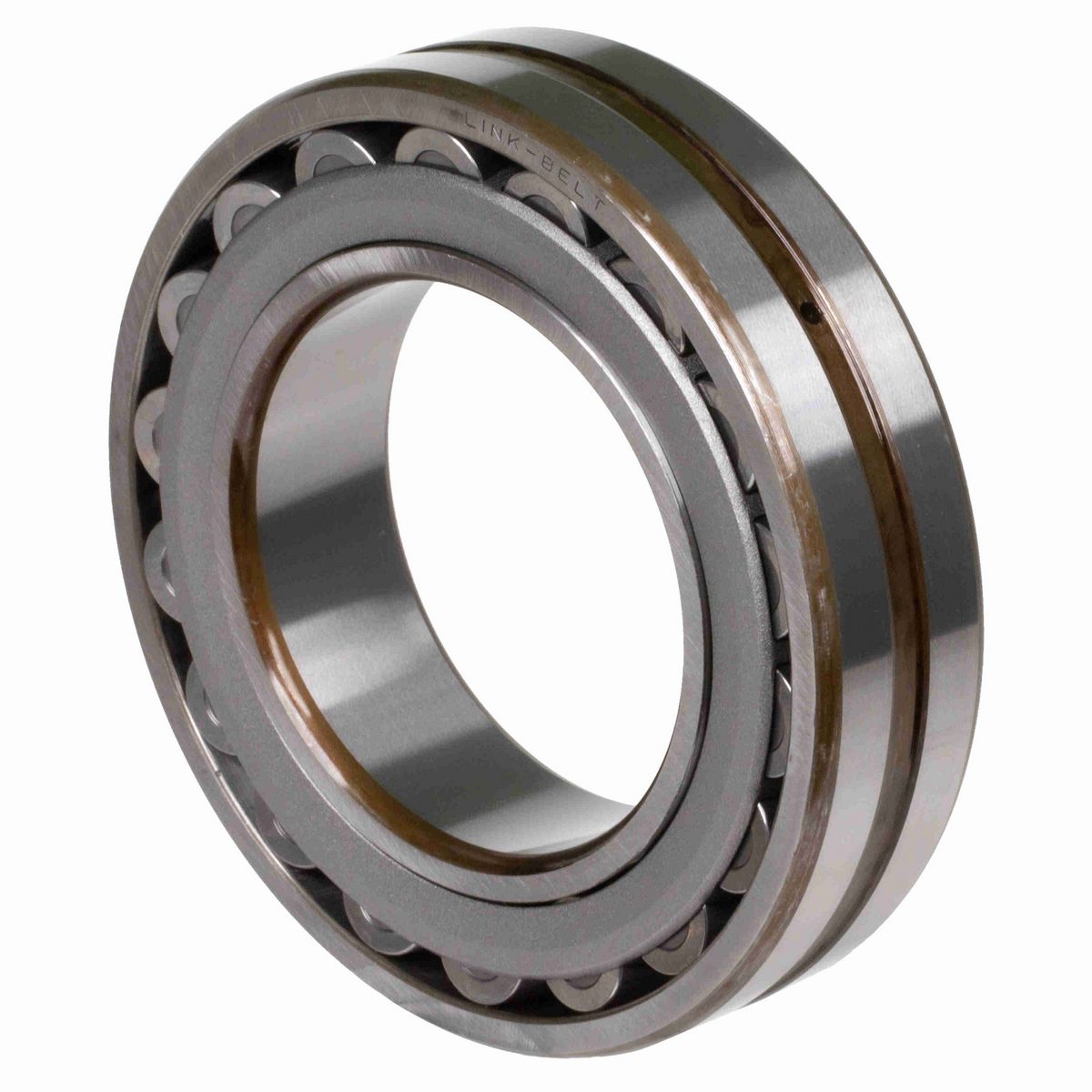

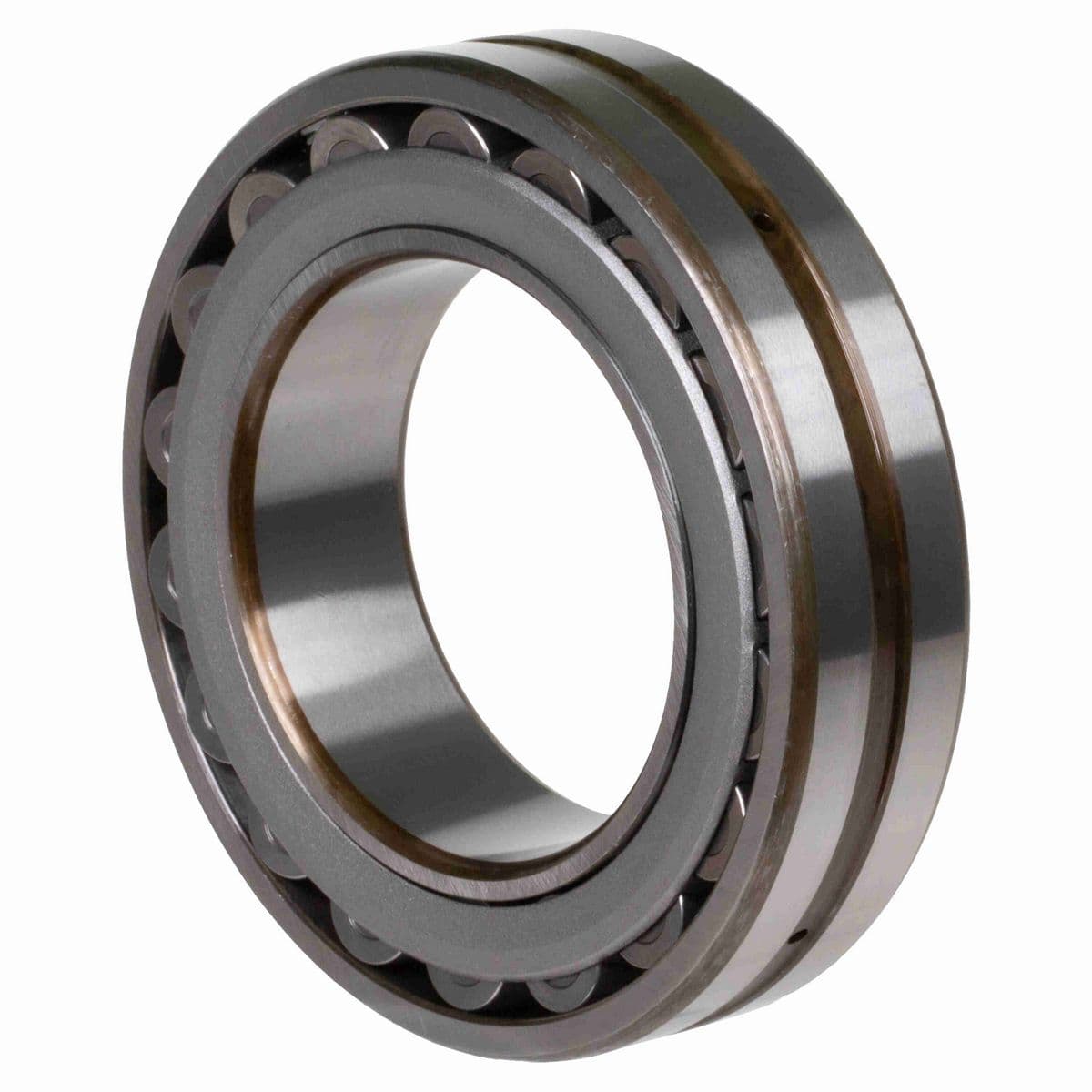

• 75 mm Unmounted Spherical Roller Bearing, Adapter Mounted, Tapered Bore

Dimensions

Bore Size (mm)	75 mm
Bore Size (in)	2.9528 in

Technical Specifications

Bearing Brand	LINK-BELT SPHER SPLIT BLKS TU
Minimum Shoulder Diameter (in)	3.30 in
Mounted Clearance	C3 GREATER THAN C0 NORMAL
C Dynamic Load Rating	41500 lb
Maximum Speed Using Grease (RPM)	3400 rpm
Maximum Shoulder Diameter (in)	4.80 in
Bore Type	Tapered
Bearing Type	SPHERICAL ROLLER BRG
Housing Fillet Radius (in)	0.06 in
Co Static Load Rating	53000 lb
Retainer Type	STEEL
Locking Type	Tapered Bore
Size Code	22215
Sealed	None
Maximum Speed (RPM)	3400 GREASE - 3700 OIL rpm
Maximum Speed Using Oil (RPM)	3700 rpm
Outside Diameter (in)	5.1181 in
Vibration Frequency Outer Ring Defect	0.1438 cps
Vibration Frequency Fundamental Train	0.0072 cps
Vibration Frequency Roller Spin	0.0591 cps
Product	22200LBK
Vibration Frequency Inner Ring Defect	0.1890 cps

General Specifications

UPC	782935474261
Weight	3.70 LB
Packaged Length	10.88 IN
Packaged Width	6.13 IN
Packaged Height	5.38 IN
HTC	8482300080
Country of Origin	China
