Линейный комплект Bosch Rexroth LSHDR2-20-WV-500 [R072152080]

Shaft diameter d [mm]

20

Format of linear bushings

H - Sleeve design

Series

Torque

Dynamic load capacity C [N]

1550

Note: dynamic load capacity C

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Dynamic torsional moment load capacity Mt [Nm]

12

Mass m (kg/m) [kg/m]

2.45

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

2.23

Static load capacity C0 [N]

1050

Note: static load capacity C0

The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

Type

Linear set

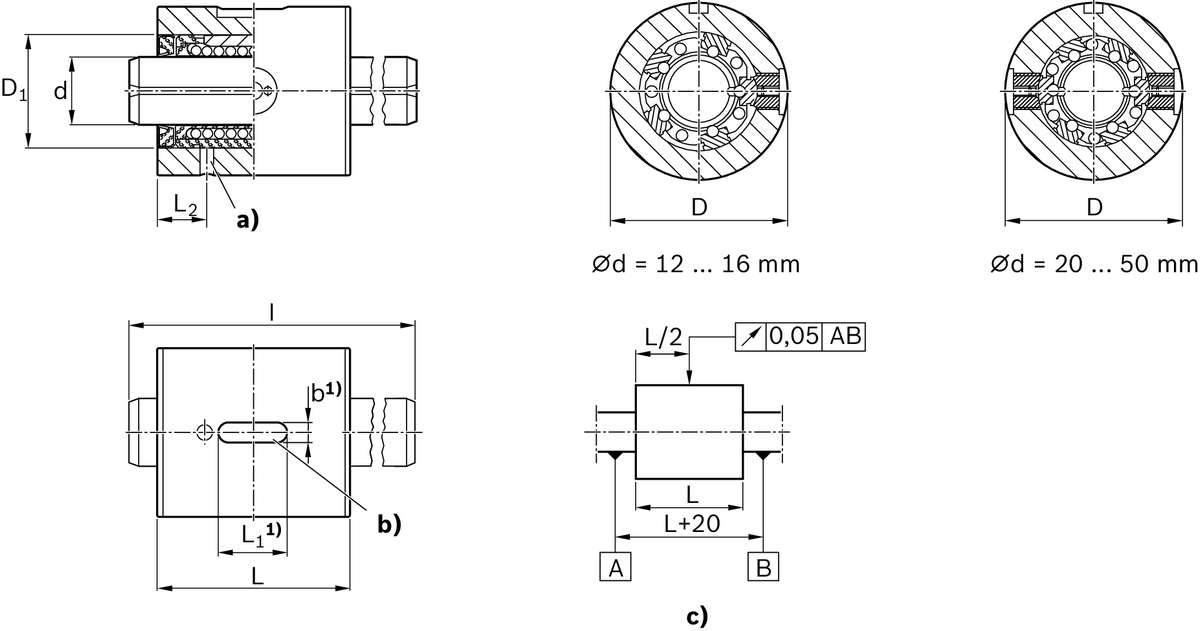

Dimension b P9 [mm]

5

Dimension D1 [mm]

32

Dimension D h6 [mm]

48

Dimension L H11 [mm]

55

Dimension L1

20

Dimension L2 [mm]

14

Dimension t [mm]

3

Standard length l of the shaft footnote [mm]

R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm

Standard length l of the shaft [mm]

500
