Линейный комплект Bosch Rexroth LSGF-M-50 [R108115000]

Shaft diameter d [mm]

50

Format of linear bushings

F - Flange

Series

Standard (metal)

Dynamic load capacity C [N]

8260

Note: dynamic load capacity C

The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

2

Outer diameter D [mm]

75

Permissible ambient temperature (min. ... max.)

-10 °C ... +100 °C

Note: permissible ambient temperature (min. ... max.)

for standard linear bushings without wiper seals

Weight [kg]

0.1

Static load capacity C0 [N]

6470

Note: static load capacity C0

The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Footnote shaft radial clearance h6

“Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the linear bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the “h6/H7" column under "Ra*

Footnote friction force FR

Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]

30

Type

Linear set

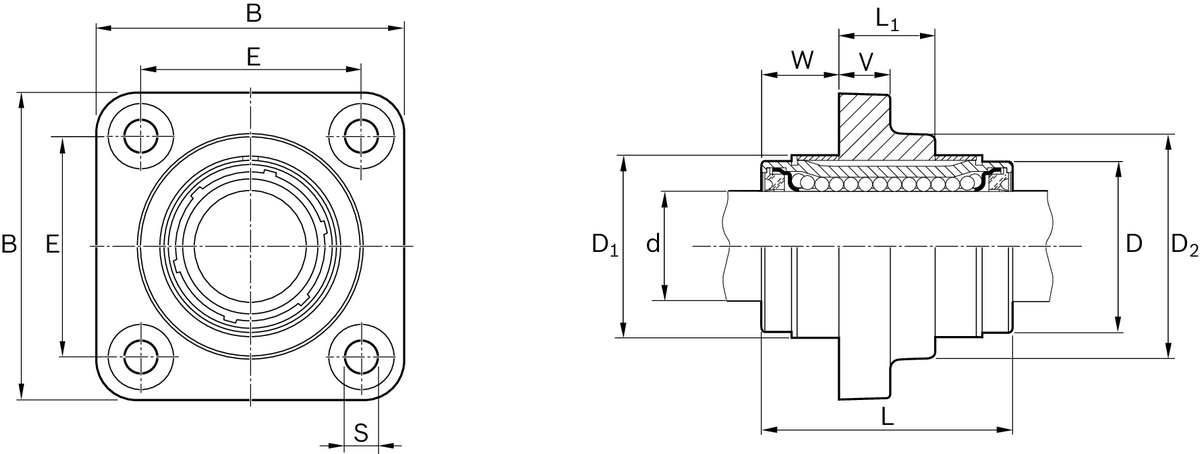

Dimension B (profiled rail systems) [mm]

130

Dimension D [mm]

75

Dimension D1 [mm]

81

Dimension D1 tolerance

+0.8

Dimension D2 [mm]

98

Dimension E [mm]

98

Dimension L

100

Dimension L1

72

Dimension S H13 [mm]

11

Dimension V [mm]

18

Dimension W [mm]

14
