Линейный комплект Bosch Rexroth LSG-A-20-DD [R106562040]

Shaft diameter d [mm]

20

Format of linear bushings

– Closed

Series

Super A (with self-alignment feature)

Dynamic load capacity C [N]

2470

Note: dynamic load capacity C

The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 12 and 16: f = 0.82, f0 = 0.86, Ø d 20 to 5*

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Note: maximum permissible speed vmax

Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Outer diameter D [mm]

32

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

0.45

Static load capacity C0 [N]

1340

Note: static load capacity C0

The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 12 and 16: f = 0.82, f0 = 0.86, Ø d 20 to 5*

Footnote friction force FR

Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]

3

Type

Linear set

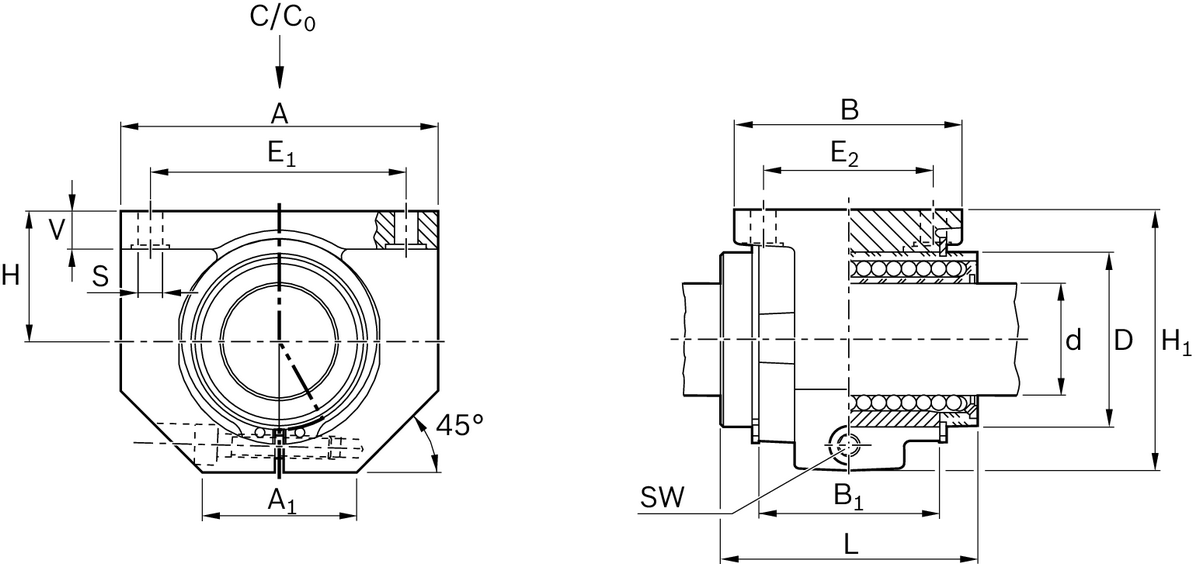

Dimension A (profiled rail systems) [mm]

60

Dimension A1 (profiled rail systems) [mm]

28

Dimension B (profiled rail systems) [mm]

42

Dimension B1 [mm]

28

Dimension D [mm]

32

Dimension E1 [mm]

45

Dimension E2 [mm]

32

Dimension H [mm]

25

Dimension H1 (profiled rail systems) [mm]

50

Dimension L

45

Dimension S [mm]

4.5

Dimension SW [mm]

3

Dimension V [mm]

8

Footnote Dimension H1

Tolerance ISO 8062-3 - DCTG 9.
