Линейный комплект Bosch Rexroth LSATO-A-12-DD [R108761220]

Shaft diameter d [mm]

12

Format of linear bushings

TO - Tandem, open

Series

Super A (with self-alignment feature)

Dynamic load capacity C [N]

1720

Note: dynamic load capacity C

Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Note: maximum permissible speed vmax

Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]

11

Outer diameter D [mm]

22

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

0.22

Static load capacity C0 [N]

1020

Note: static load capacity C0

Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.

Static longitudinal moment load capacity ML0 [Nm]

7

Footnote shaft radial clearance h6

Clamped (fastened).

Footnote friction force FR

Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]

1.5

Type

Linear set

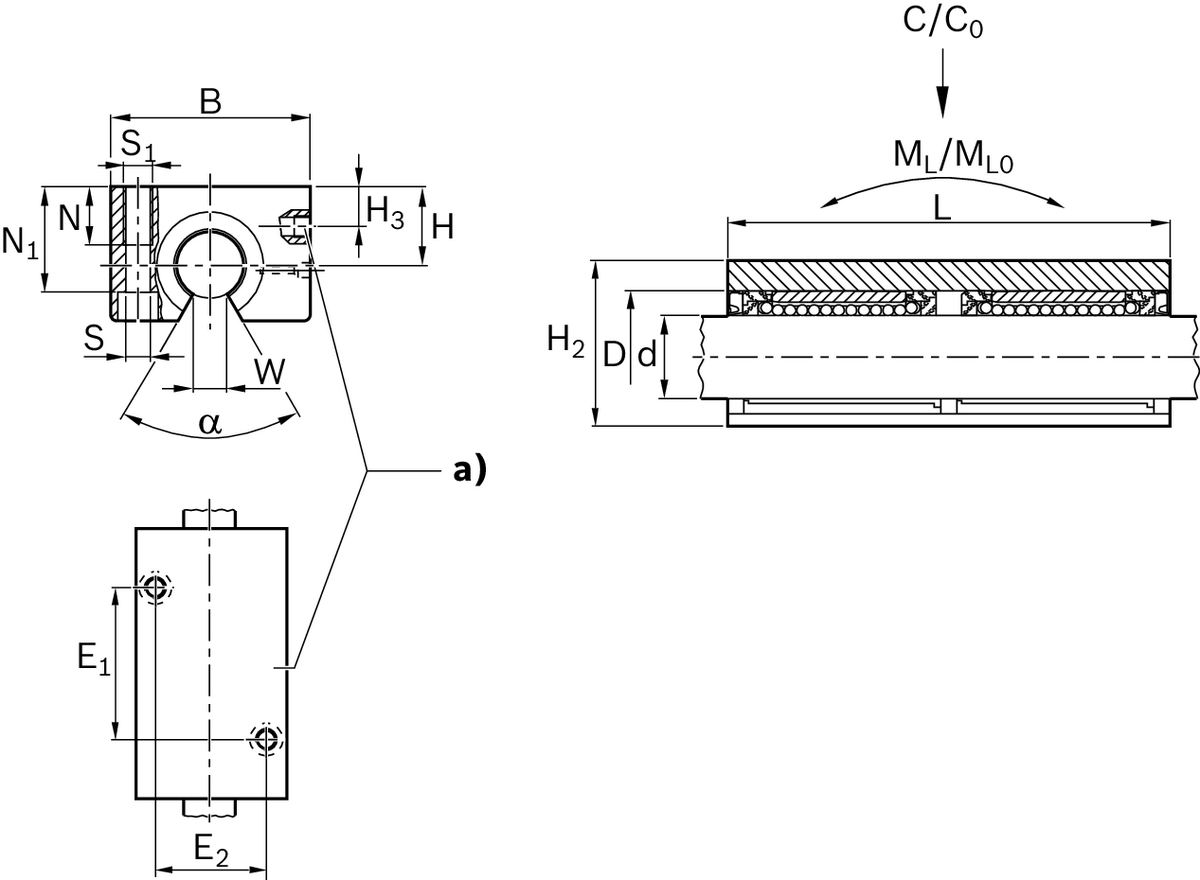

Dimension B (profiled rail systems) [mm]

42

Dimension D [mm]

22

Dimension E1 [mm]

40

Dimension E2 [mm]

30

Dimension H [mm]

18

Dimension H3 [mm]

10

Dimension L

76

Dimension N [mm]

13

Dimension N1 (profiled rail systems) [mm]

25

Dimension S [mm]

5.3

Dimension W [mm]

6.5

Angle α [°]

66
