Линейный комплект Bosch Rexroth LSATE-A-12-DD [R103261220]

Shaft diameter d [mm]

12

Format of linear bushings

TE - Tandem, adjustable

Series

Super A (with self-alignment feature)

Dynamic load capacity C [N]

1660

Note: dynamic load capacity C

Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following facto*

Maximum acceleration rate amax [m/s²]

150

Maximum permissible linear speed vmax [m/s]

3

Note: maximum permissible speed vmax

Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Dynamic longitudinal moment load capacity ML [Nm]

26

Radial clearance

Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]

22

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Weight [kg]

0.25

Static load capacity C0 [N]

980

Note: static load capacity C0

Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following facto*

Static longitudinal moment load capacity ML0 [Nm]

16

Footnote friction force FR

Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]

1.5

Type

Linear set

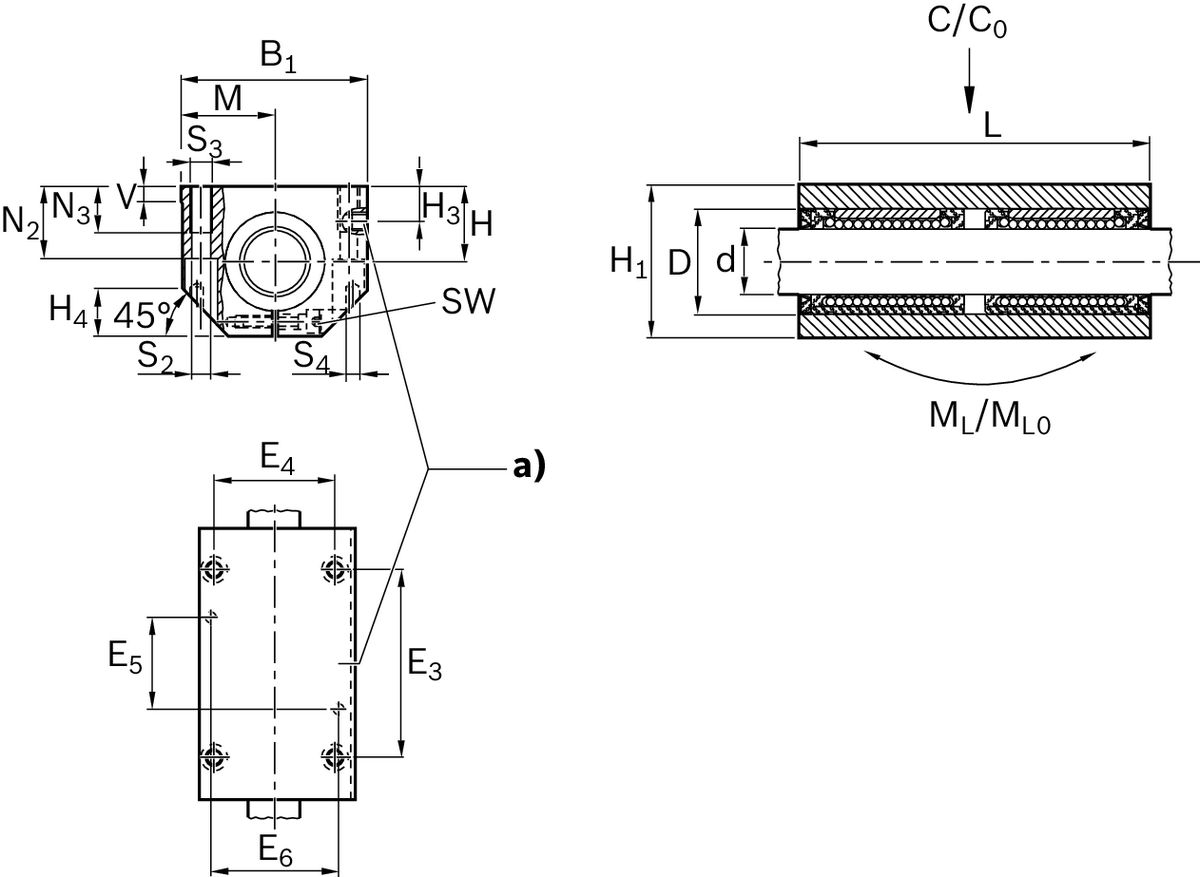

Dimension B1 [mm]

43

Dimension D [mm]

22

Dimension E3 (profiled rail systems) [mm]

56

Dimension E3 tolerance [mm]

±0.15

Dimension E4 [mm]

32

Dimension E5 [mm]

24

Dimension E6 [mm]

34

Dimension H [mm]

18

Dimension H1 (profiled rail systems) [mm]

35

Dimension H3 [mm]

10

Dimension H4 [mm]

10

Dimension L

76

Dimension M [mm]

21.5

Dimension N2 (profiled rail systems) [mm]

16.5

Dimension N3 (profiled rail systems) [mm]

11

Dimension S2 [mm]

4.3

Dimension S4 [mm]

4

Dimension SW [mm]

2.5

Dimension V [mm]

5
