Линейный комплект Bosch Rexroth KB-RCS-E-30-VD & [R161330000]

Shaft diameter d [mm]

30

Format of linear bushings

OE - Open, adjustable

Series

Radial compact set

Dynamic load capacity C [N]

8500

Note: dynamic load capacity C

The stated load capacities apply for the main direction of loading ρ = 0°.

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

2

Radial clearance

Comes with an h5 shaft (lower limit) and set to zero-clearance before delivery

Permissible ambient temperature (min. ... max.)

-20 °C ... +100 °C

Friction coefficient μ

0.001 ... 0.002

Note: friction coefficient μ

Friction coefficients of unsealed radial linear bushings when lubricated with oil.

Weight [kg]

1.76

Static load capacity C0 [N]

9520

Note: static load capacity C0

The stated load capacities apply for the main direction of loading ρ = 0°.

Breakaway force [N]

24

Type

Linear bushing

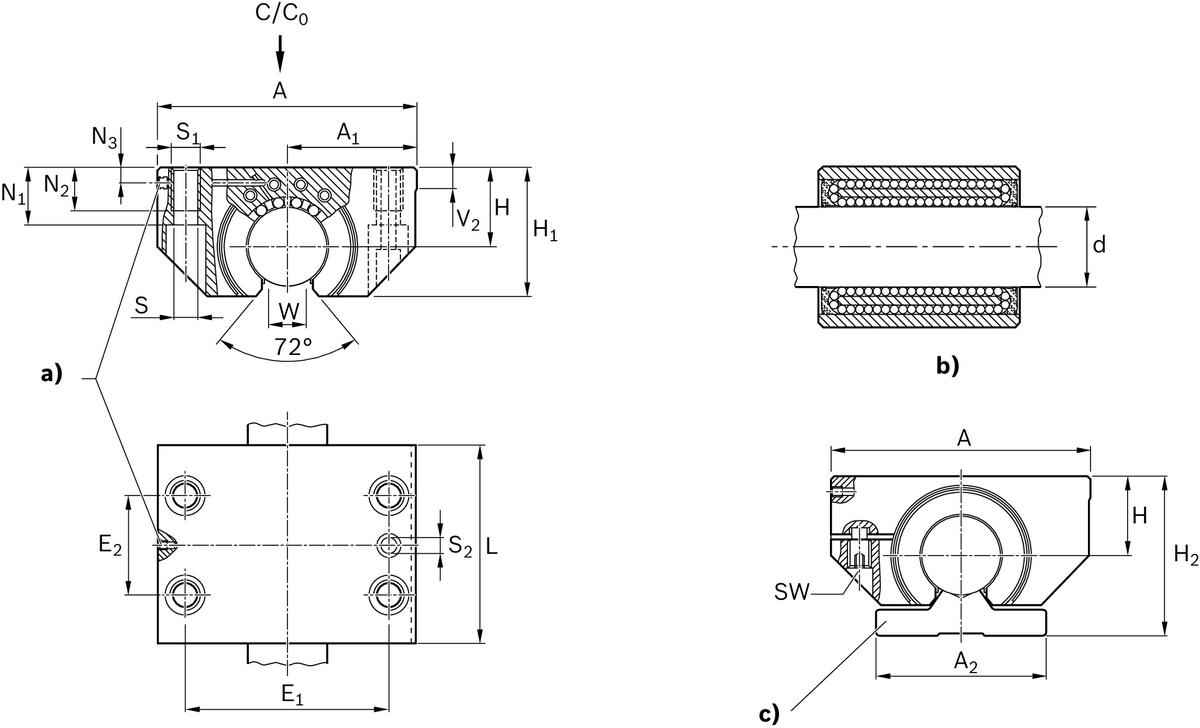

Dimension A (profiled rail systems) [mm]

100

Dimension A1 (profiled rail systems) [mm]

50

Dimension A1 tolerance [mm]

±0.008

Dimension A2 (profiled rail systems) [mm]

68

Dimension E1 [mm]

76

Dimension E2 [mm]

40

Dimension H [mm]

32

Dimension H1 (profiled rail systems) [mm]

53

Dimension L

75

Dimension N1 (profiled rail systems) [mm]

21

Dimension N2 (profiled rail systems) [mm]

15

Dimension N3 (profiled rail systems) [mm]

9

Dimension S [mm]

10.5

Dimension S2 [mm]

7.7

Dimension SW [mm]

5

Dimension V2 [mm]

6

Dimension W [mm]

14
