• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power. specifications
• IRIS® Class F insulation system offers superior protection for use with a variable frequency drive.
• Constant torque operation from 0 to base speed of vector drive.
• LEESON® motors. Motors and solutions at our core™

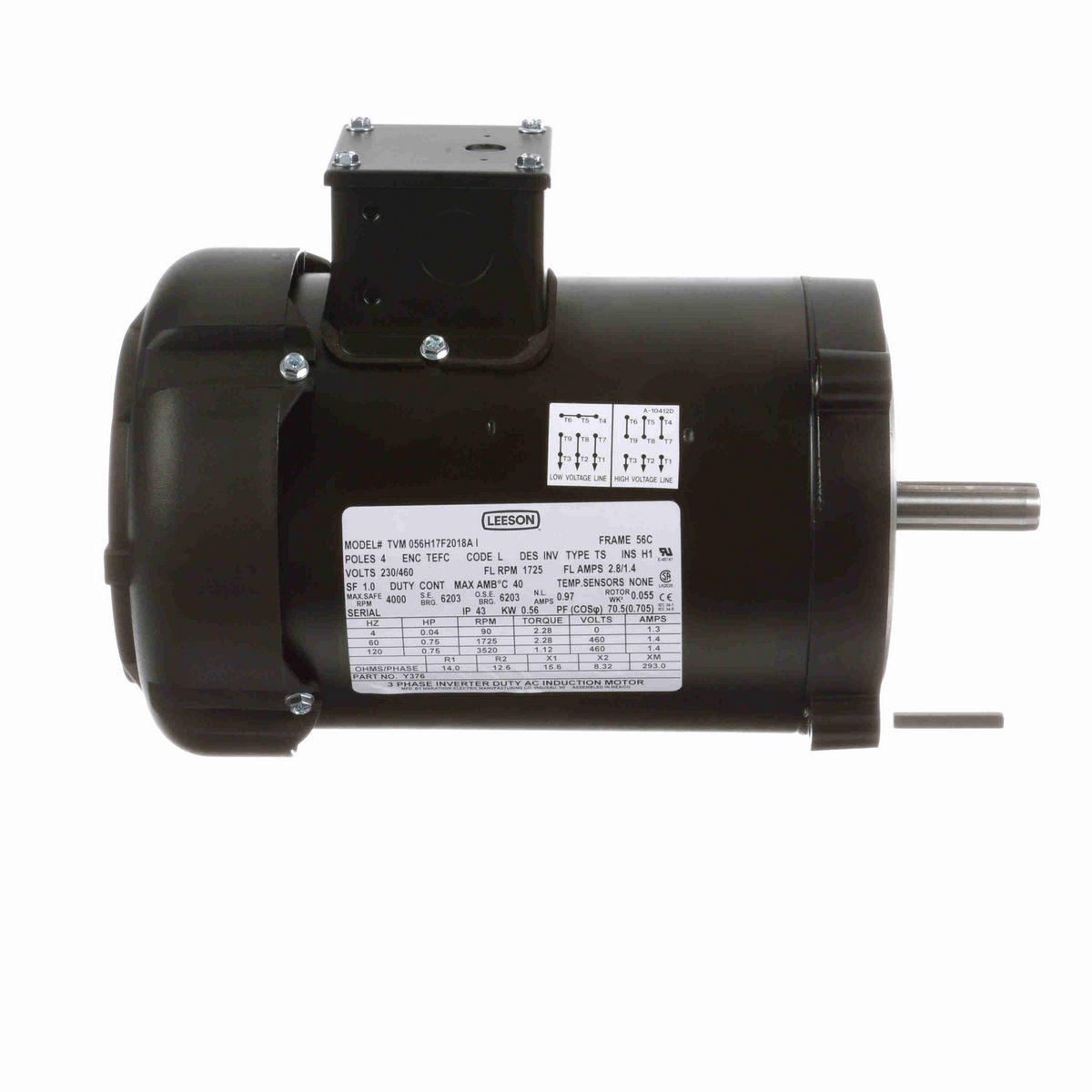

Nameplate Specifications

Phase	3
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	230/460 V
Speed	1725 rpm
Service Factor	1.0
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	75.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.8/1.4 A
Power Factor	70.5
Duty	Continuous
Insulation Class	H
Design Code	INV
KVA Code	L
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Duty
Starting Method	Inverter Only
Poles	4
Rotation	Reversible
Resistance Main	23 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	11.19 in
Frame Length	6.25 in
Shaft Diameter	0.625 in
Shaft Extension	2.06 in
Assembly/Box Mounting	F3
Inverter Load	CONSTANT 20:1

General Specifications

UPC	722856024336
Weight	21.00 LB
Packaged Length	12.44 IN
Packaged Width	9.13 IN
Packaged Height	8.06 IN
HTC	8501.51.4040
Country of Origin	Mexico
