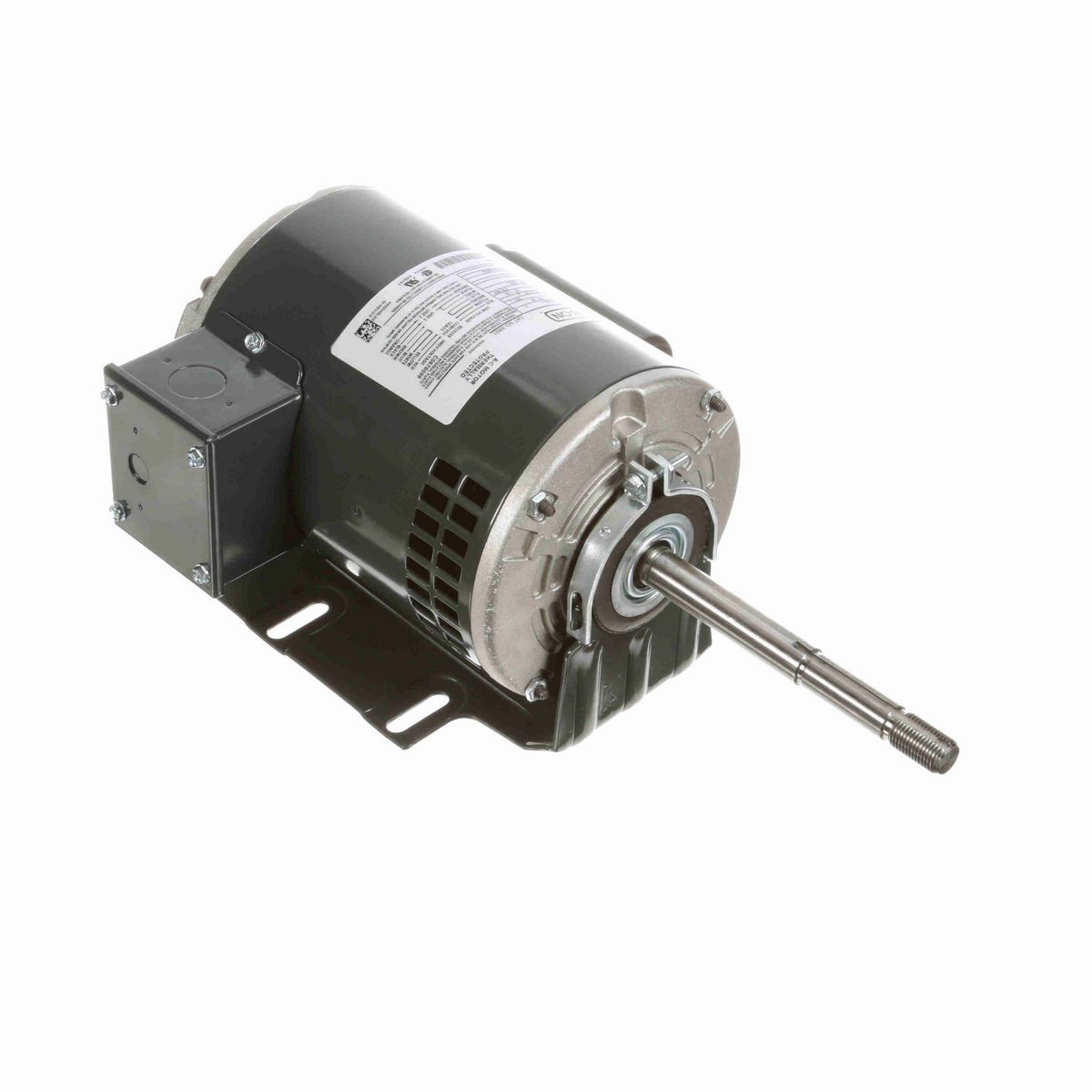

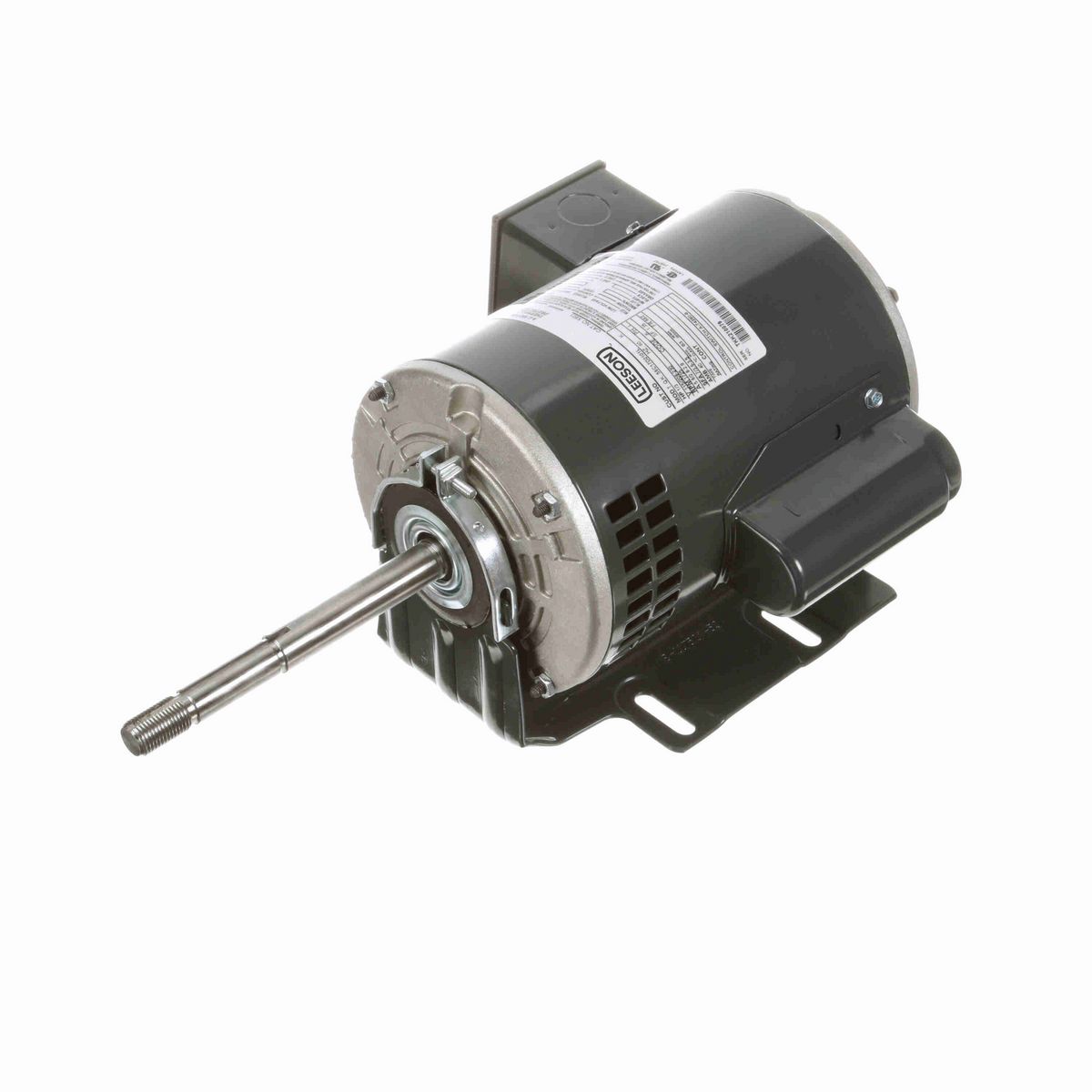

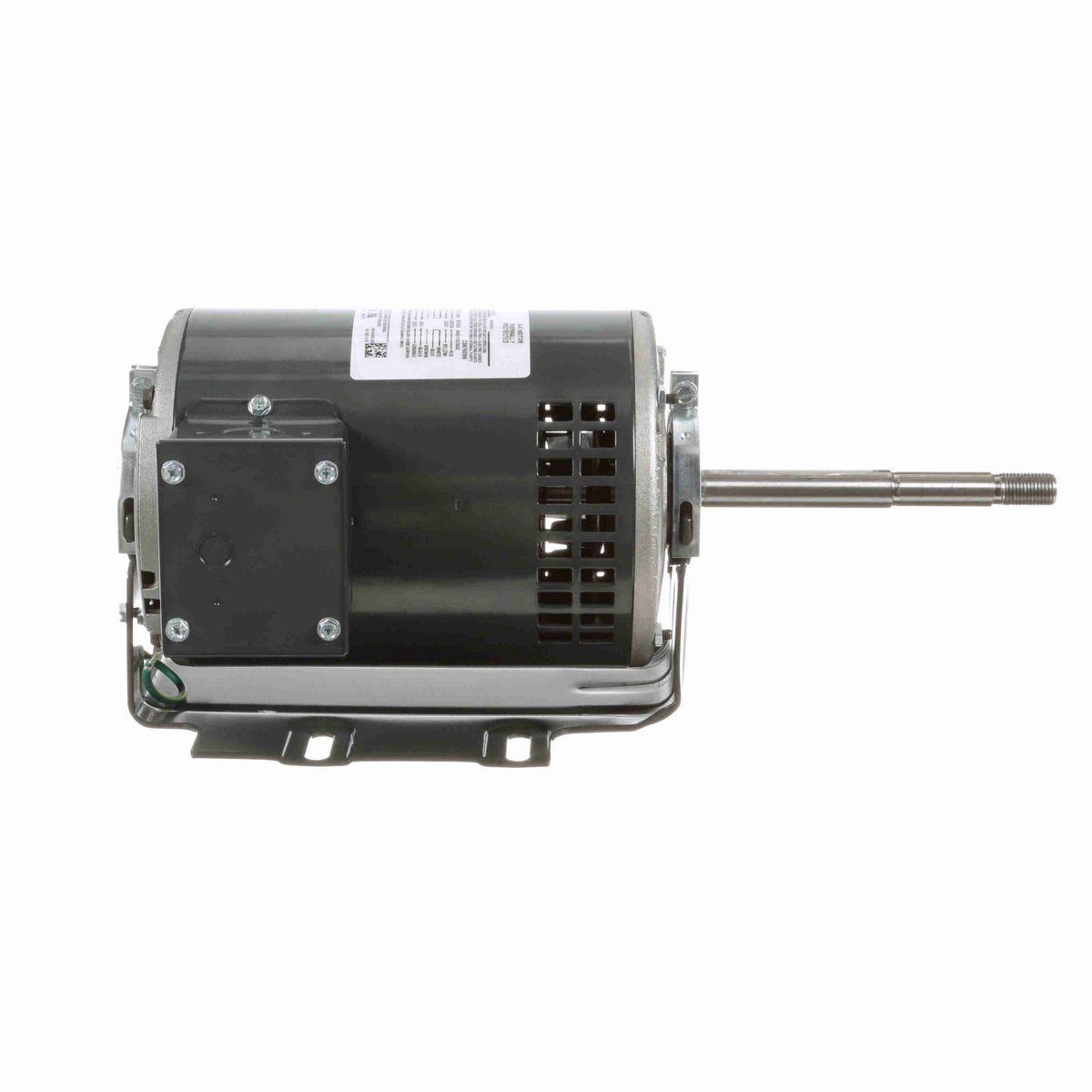

• Replaces Huebsch commercial laundry dryer motors
• Automatic reset thermal protection
• Special threaded shaft extension
• Ball bearings

Nameplate Specifications

Phase	1
Output HP	0.33 Hp
Output KW	0.25 kW
Voltage	115/208-230 V
Speed	1725 rpm
Service Factor	1.35
Frame	56Z
Enclosure	Drip Proof
Thermal Protection	Automatic
Efficiency	62 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.8/2.8-2.9 A
Power Factor	64
Duty	Continuous
Insulation Class	B
Design Code	NO DESIGN CODE
KVA Code	K
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	22
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Fixed Counterclockwise
Resistance Main	0 Ohms
Mounting	Resilient Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Overall Length	14.41 in
Frame Length	6.75 in
Shaft Diameter	0.625 in
Shaft Extension	5.66 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	722856042026
Weight	20.00 LB
Packaged Length	19.88 IN
Packaged Width	10.25 IN
Packaged Height	8.12 IN
HTC	8501.40.4040
Country of Origin	Mexico
