• White epoxy coating maintains superior resistance to corrosion.
• Precision machined in-line steel gears.
• Frame, end shields, armature, and interior components are protected by enamel and polyester compounds for resistance to moisture, acids, alkalies and oil.
• Lubrication is permanent semi-fluid grease, reducing possibility of leakage.

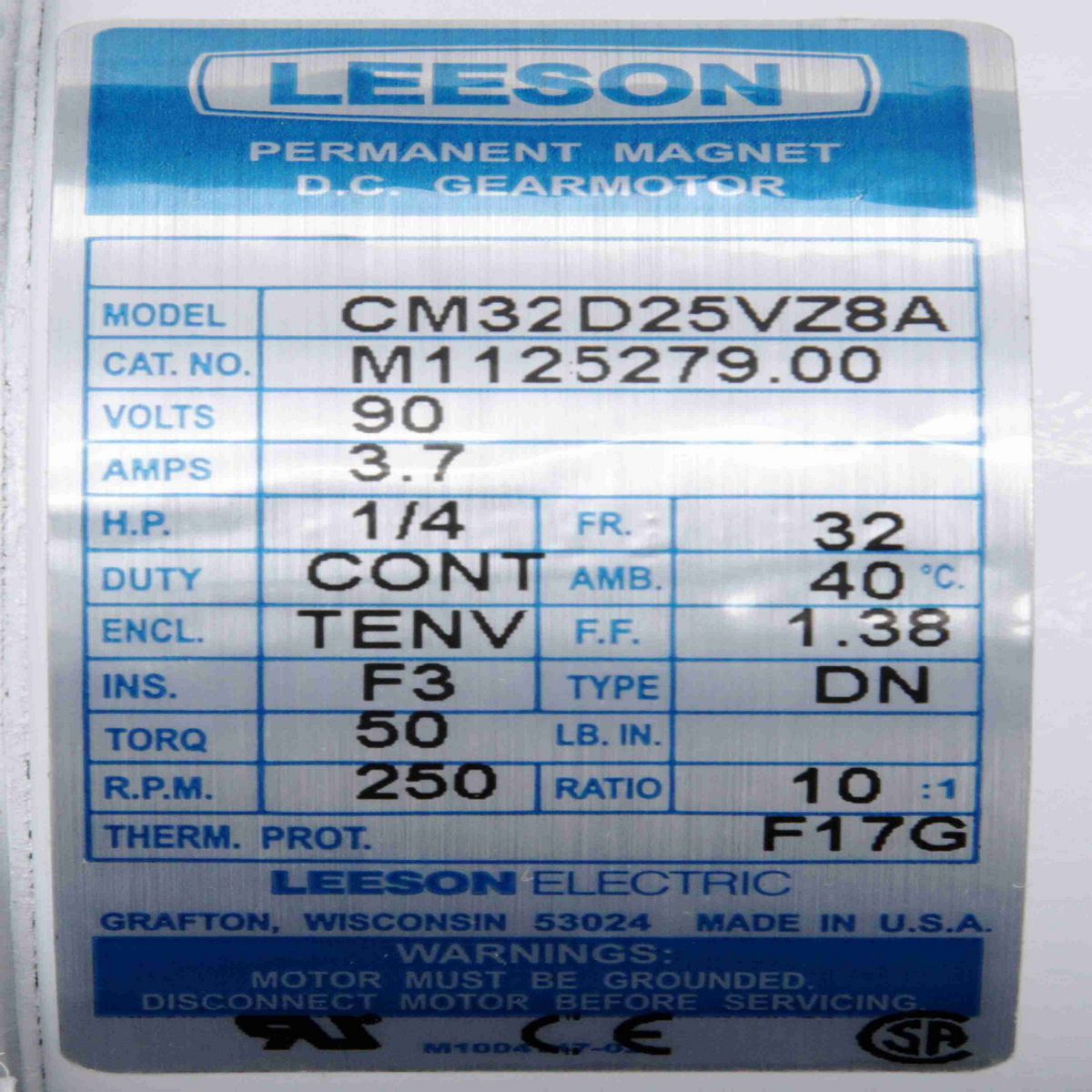

Nameplate Specifications

Output HP	0.25 Hp
Output KW	0.19 kW
Voltage	90 V
Speed	250 rpm
Service Factor	1
Frame	32
Thermal Protection	No Protection
Efficiency	45.1 %
Ambient Temperature	40 °C
Current	3.7 A
Duty	Continuous
Insulation Class	F
Drive End Bearing Size	6201
Opp Drive End Bearing Size	6201
UL	Recognized
CSA	Y
CE	Y

Technical Specifications

Rotation	Reversible
Mounting	Special
Shaft Type	Right Angle
Overall Length	12.86 in
Frame Length	5.94 in
Shaft Diameter	0.625 in
Shaft Extension	1.8 in
Torque	50 LB-IN

General Specifications

UPC	691720346204
Weight	17.00 LB
Packaged Length	16.50 IN
Packaged Width	7.68 IN
Packaged Height	6.69 IN
Country of Origin	United States of America
