• Gearbox output shafts are coated with Mirolon 3300 fortified Teflon for superior corrosion resistance
• Frame, end shields, armature and interior components protected by enamel and polyester compounds for resistance to moisture, acids, alkalies and oil
• Precision machined in-line steel gears; First stage steel helical gear followed by spur-type gears
• Lubrication is permanent semi-fluid grease, reducing possibility of leakage
• Output shafts have needle bearings for high load capacities; Gearbox shafts are hardened steel
• Cast conduit box with threaded conduit holes and Nitrile gaskets keep water out; Conduit box cover is made from 304 stainless steel
• For any condensation that may accumulate inside the motor, a one-way stainless steel vapor vent is provided
• All hardware is stainless steel; Painted with white epoxy for superior corrosion resistance and protection
• PMAChined fits between the end bells and motor frame are sealed with gaskets
• Thru-bolt heads and nuts sealed with fiber washers; O-rings under each threaded brush cover

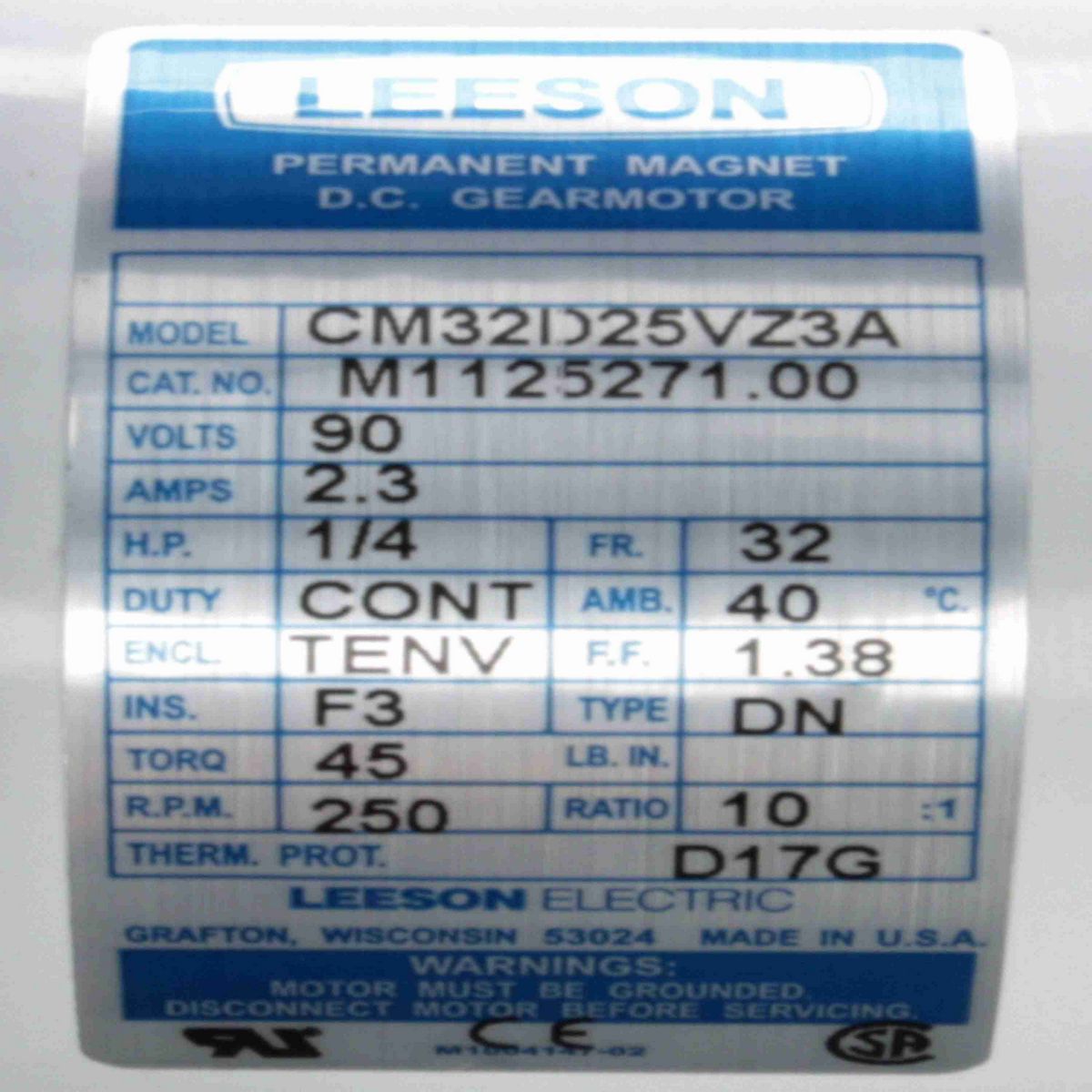

Nameplate Specifications

Output HP	0.25 Hp
Output KW	0.19 kW
Voltage	90 V
Speed	250 rpm
Service Factor	1
Frame	32
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	67.2 %
Ambient Temperature	40 °C
Current	2.3 A
Duty	Continuous
Insulation Class	F
Drive End Bearing Size	6201
Opp Drive End Bearing Size	6201
UL	Recognized
CSA	Y
CE	Y

Technical Specifications

Rotation	Reversible
Mounting	Special
Shaft Type	Parallel
Overall Length	13.84 in
Frame Length	6.44 in
Shaft Diameter	0.750 in
Shaft Extension	1.63 in
Torque	45 LB-IN

General Specifications

UPC	691720346808
Weight	17.00 LB
Packaged Length	16.50 IN
Packaged Width	7.68 IN
Packaged Height	6.69 IN
Country of Origin	United States of America
