• USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
• Sealed bearings shut out contaminants that lead to bearing failure.
• Stainless steel output shaft seals protect against external contaminants.
• Cast, white epoxy conduit boxes house electrical wiring.
• LEESON® motors. Motors and solutions at our core™

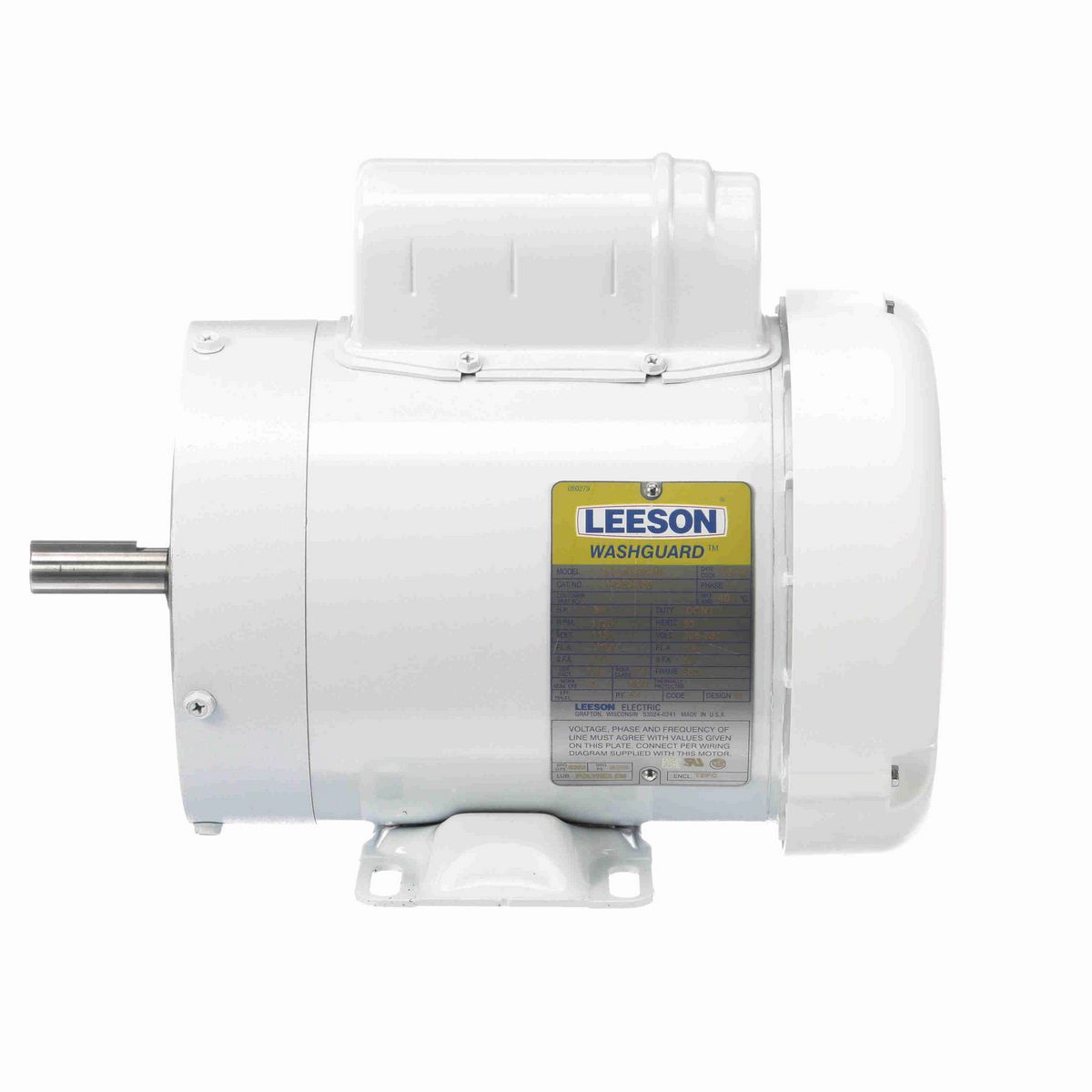

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.15
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	70 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	10.8/5.4 A
Power Factor	64
Duty	Continuous
Insulation Class	F
Design Code	N
KVA Code	L
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	55
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	2.6 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	11.62 in
Frame Length	5.75 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720010938
Weight	33.00 LB
Packaged Length	14.44 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
