• Full stainless steel exterior promotes resistance to water and chemical corrosion.
• Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure.
• Stainless steel output shaft seals protect against external contaminants.
• Insulation systems deliver superior protection against voltage spikes.
• LEESON® motors. Motors and solutions at our core™

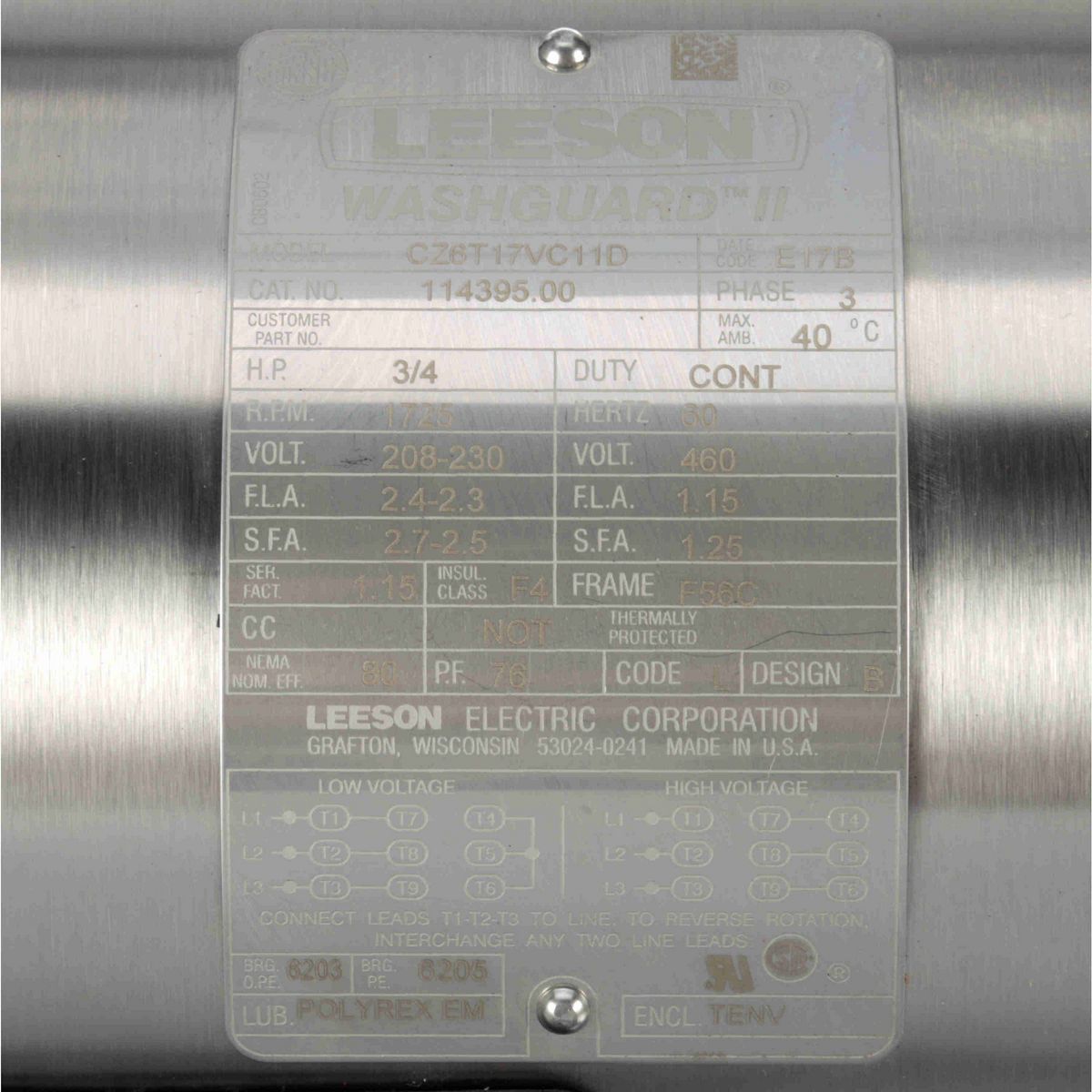

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	230/460 V
Speed	1725 rpm
Service Factor	1.15
Frame	56C
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	80 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.3/1.2 A
Power Factor	76
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	L
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	55
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	4
Rotation	Reversible
Resistance Main	0 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Stainless Steel
Shaft Type	NEMA 56
Overall Length	11.56 in
Frame Length	6.50 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY
Inverter Load	CONSTANT 6:1

General Specifications

UPC	691720013915
Weight	37.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
