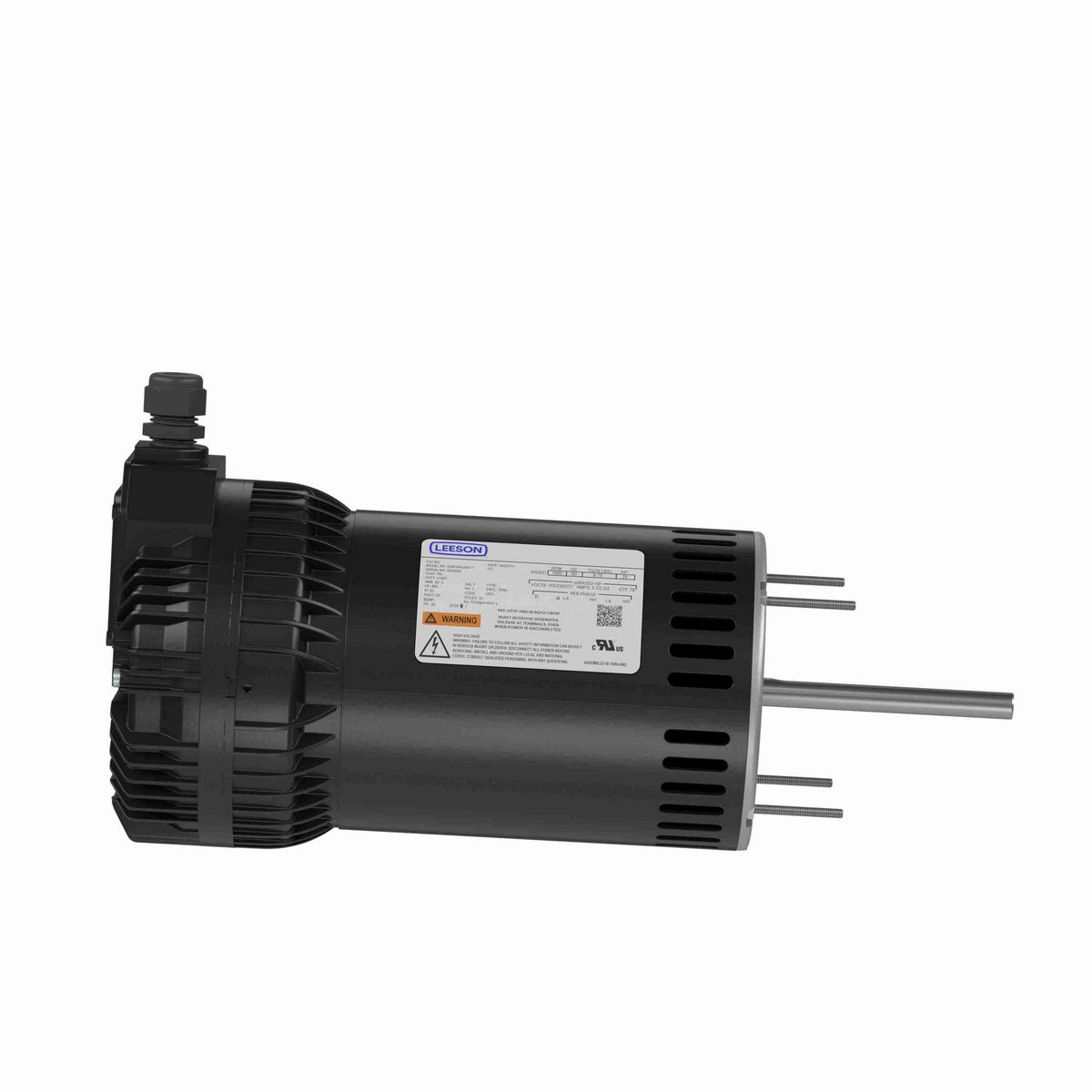

• Single source, performance matched EC motor with pre-programmed control designed for simple install and immediate use
• Fully variable speed with high, flat efficiency curve reduces energy consumption leading to year over utility bill savings
• Built-in power conversion circuitry auto-adapts for line voltage (110V/230V/277V, 60Hz) enables SKU reduction and eliminates early catastrophic failure selection switch or jumper wire mistakes
• Class F motor with optically isolated and potted control; ratings up to 60C & IP43 ingress protection
• Modbus serial communication, 0-10Vdc, 4-20mA, PWM speed control; onboard +10V and +20V power supplies; 4 Digital Inputs; 1 Digital Output; 1 SPDT Form C Relay....all fully configurable
• Rich user interface with accompanying configuration software enabling custom motor response programming and tuning needs for system optimization
• Embedded & adaptable PID software enabling direct, simplified interface with IAQ sensors
• LEESON® motors. Motors and solutions at our core™

Nameplate Specifications

Phase	1
Output HP	0.25 Hp
Output KW	0.19 kW
Voltage	115/230/277 V
Speed	1800 rpm
Service Factor	1.00
Frame	48Z
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	78 %
Ambient Temperature	60 °C
Frequency	60 Hz
Current	3.7/2.2/2.0 A
Power Factor	45
Duty	Continuous
Insulation Class	F
Design Code	No Design Code
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	N
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	AC Permament Magnet
Starting Method	Across The Line
Poles	10
Rotation	Reversible
Mounting	ROUND - EXTENDED STUDS
Motor Orientation	Horizontal Or Shaft Down
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720115589
Weight	11.18 LB
Packaged Length	13.35 IN
Packaged Width	8.41 IN
Packaged Height	7.31 IN
Country of Origin	Thailand
