• High-efficiency design utilizes low-loss steel laminations for optimum power and performance.
• Inverter rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
• IP55 weatherproof enclosure for use in a wide range of applications.
• Double-shielded bearings extend the service life of the motor.
• As of 4/30/24 this product is now listed as LEESON® brand due to <a href="https://investors.regalrexnord.com/investors/ir-news/press-release-details/2024/Regal-Rexnord-Corporation-Closes-The-Sale-Of-Its-Industrial-Motors--Generators-Business-To-WEG/default.aspx">the divestiture of the Industrial Business.</a>

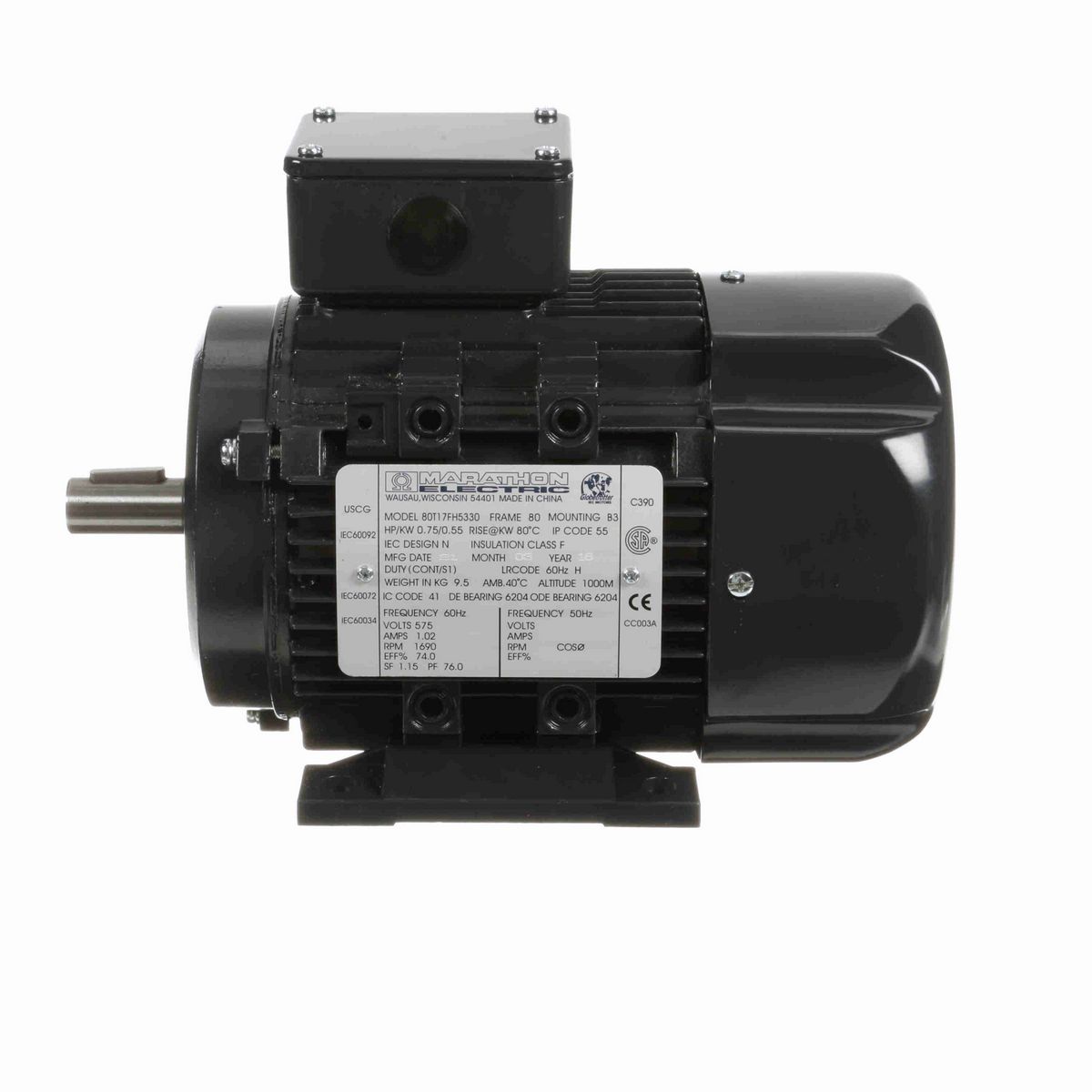

Nameplate Specifications

Phase	3
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	575 V
Speed	1690 rpm
Service Factor	1.15
Frame	80M
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	74 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.0 A
Power Factor	76
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	H
Drive End Bearing Size	6204
Opp Drive End Bearing Size	6204
UL	Recognized
CSA	Y
CE	Y
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	4
Rotation	Reversible
Resistance Main	42.3 Ohms
Mounting	B3
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Aluminum
Shaft Type	IEC
Overall Length	11.10 in
Frame Length	5.31 in
Shaft Diameter	0.750 in
Shaft Extension	1.57 in
Assembly/Box Mounting	F3

General Specifications

UPC	722856026422
Weight	22.00 LB
Packaged Length	13.39 IN
Packaged Width	9.65 IN
Packaged Height	10.20 IN
HTC	8501.51.4040
Country of Origin	China
