• High-efficiency design utilizes low-loss steel laminations for optimum power and performance.
• Inverter rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
• IP55 weatherproof enclosure for use in a wide range of applications.
• Double-shielded bearings extend the service life of the motor.
• LEESON® motors. Motors and solutions at our core™

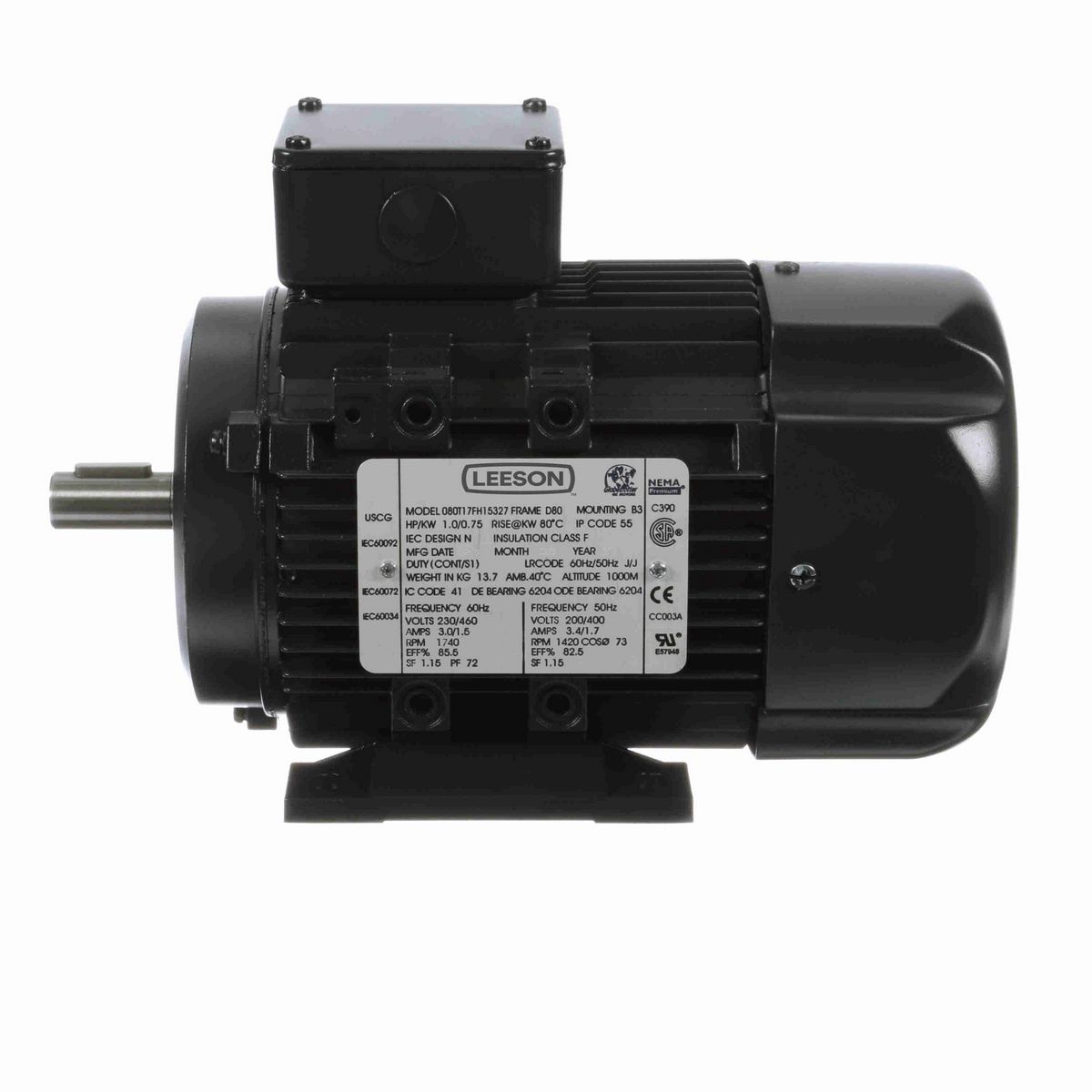

Nameplate Specifications

Phase	3
Output HP	1 & 1 Hp
Output KW	0.75 & 0.75 kW
Voltage	230/460 & 200/400 V
Speed	1740 & 1420 rpm
Service Factor	1.15 & 1.15
Frame	80
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	85.5 & 82.5 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	3.0/1.5 & 3.4/1.7 A
Power Factor	72
Duty	Continuous
Insulation Class	F
Design Code	NO DESIGN CODE
KVA Code	J
Drive End Bearing Size	6204
Opp Drive End Bearing Size	6204
UL	Recognized
CSA	Y
CE	Y
IP Code	55
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Resistance Main	0 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Aluminum
Shaft Type	IEC
Overall Length	301.752 mm
Frame Length	154.94 mm
Shaft Diameter	19.050 mm
Shaft Extension	39.878 mm
Assembly/Box Mounting	F3

General Specifications

UPC	722856054333
Weight	31.00 LB
Packaged Length	14.17 IN
Packaged Width	9.65 IN
Packaged Height	10.24 IN
HTC	8501.52.4000
Country of Origin	China
