• All exterior components are 300-series stainless steel
• All sealing components are Viton® for superior chemical resistance
• Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
• Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
• Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
• Interior coatings applied to rotor and stator protect against corrosion
• Three phase motors are UL component recognized – file number E57948, guide number PRGY2

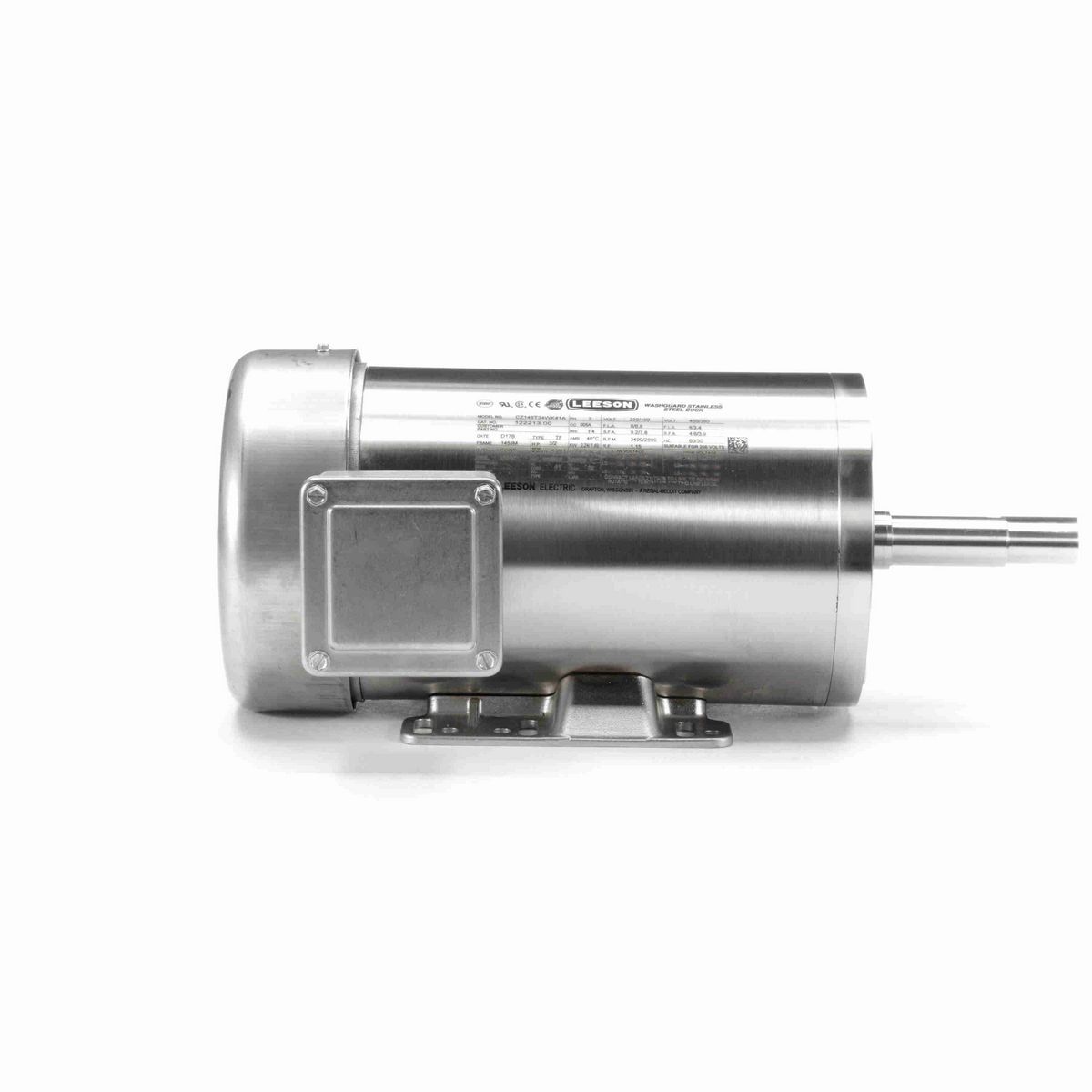

• Full fact nameplate is laser etched on the motor frame
• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	3 & 2 Hp
Output KW	2.2 & 1.5 kW
Voltage	230/460 & 190/380 V
Speed	3490 & 2890 rpm
Service Factor	1.15 & 1.15
Frame	145JM
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	86.5 & 83.8 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	8/4 & 6.8/3.4 A
Power Factor	86
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	N
Drive End Bearing Size	6206
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	56
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	2
Rotation	Reversible
Resistance Main	3.83 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Stainless Steel
Shaft Type	JM
Overall Length	16.50 in
Frame Length	9.00 in
Shaft Diameter	0.875 in
Shaft Extension	4.21 in
Assembly/Box Mounting	F1 ONLY
Inverter Load	VARIABLE 10:1

General Specifications

UPC	691720053157
Weight	67.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
