• UL recognized component listing and CSA certification ensures the product is safe for use.
• Full stainless steel exterior promotes resistance to water and chemical corrosion.
• Stainless steel output shaft seals protect against external contaminants.
• Insulation system offers superior protection against voltage spikes.
• Double sealed bearing construction extends the lifetime of the motor.
• LEESON® motors. Motors and solutions at our core™

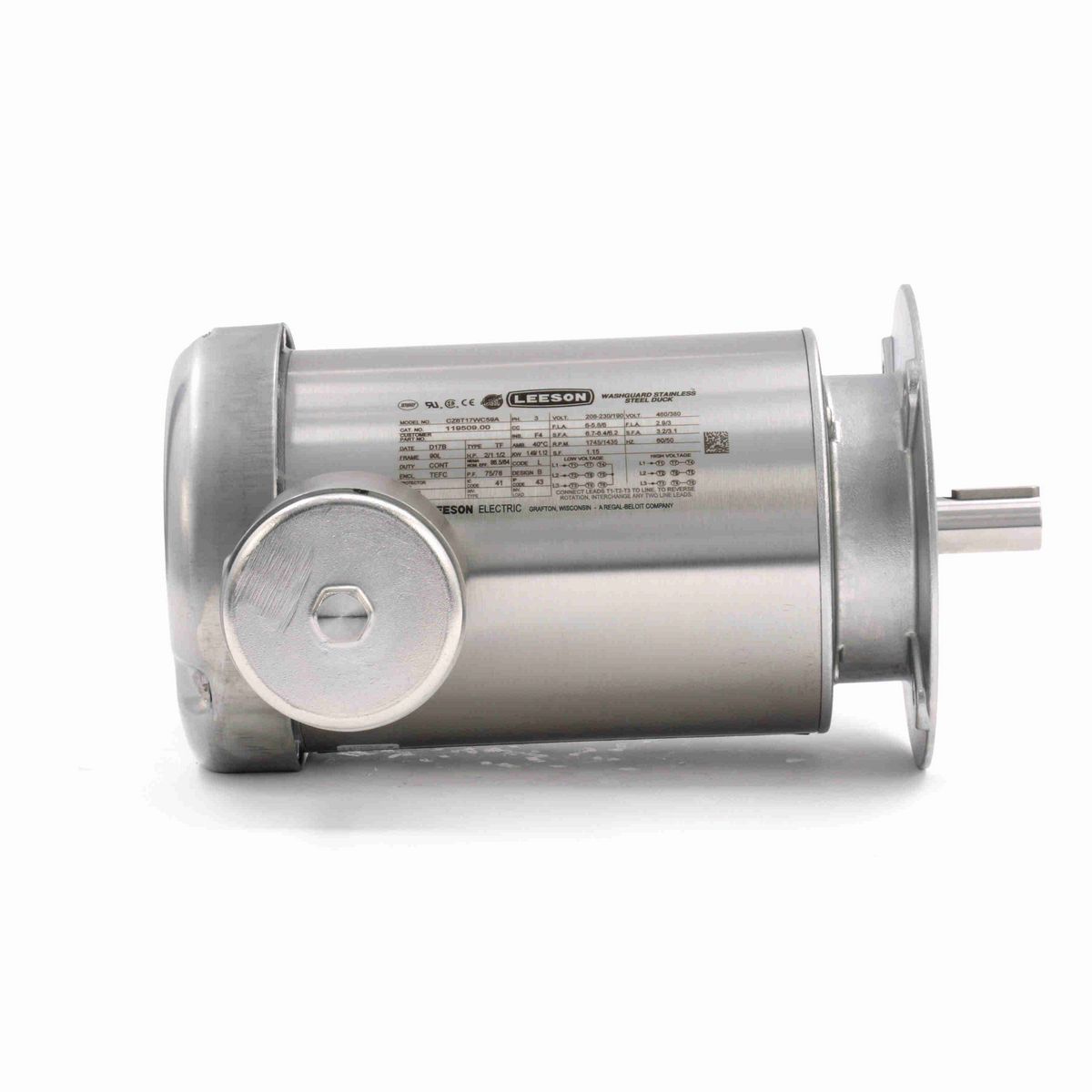

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	2 & 1.50 Hp
Output KW	1.5 & 1.1 kW
Voltage	230/460 & 190/380 V
Speed	1745 & 1435 rpm
Service Factor	1.15 & 1.15
Frame	90L
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Thermostat
Efficiency	86.5 & 84 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	5.8/2.9 & 6/3 A
Power Factor	75.6
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	L
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6205
UL	Recognized
CSA	Y
CE	Y
IP Code	56
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	4
Rotation	Reversible
Resistance Main	6 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Stainless Steel
Shaft Type	IEC
Overall Length	13.84 in
Frame Length	8.25 in
Shaft Diameter	0.937 in
Shaft Extension	1.41 in
Assembly/Box Mounting	F1 ONLY
Inverter Load	CONSTANT 6:1

General Specifications

UPC	691720102893
Weight	54.00 LB
Packaged Length	17.94 IN
Packaged Width	13.06 IN
Packaged Height	12.88 IN
Country of Origin	United States of America
