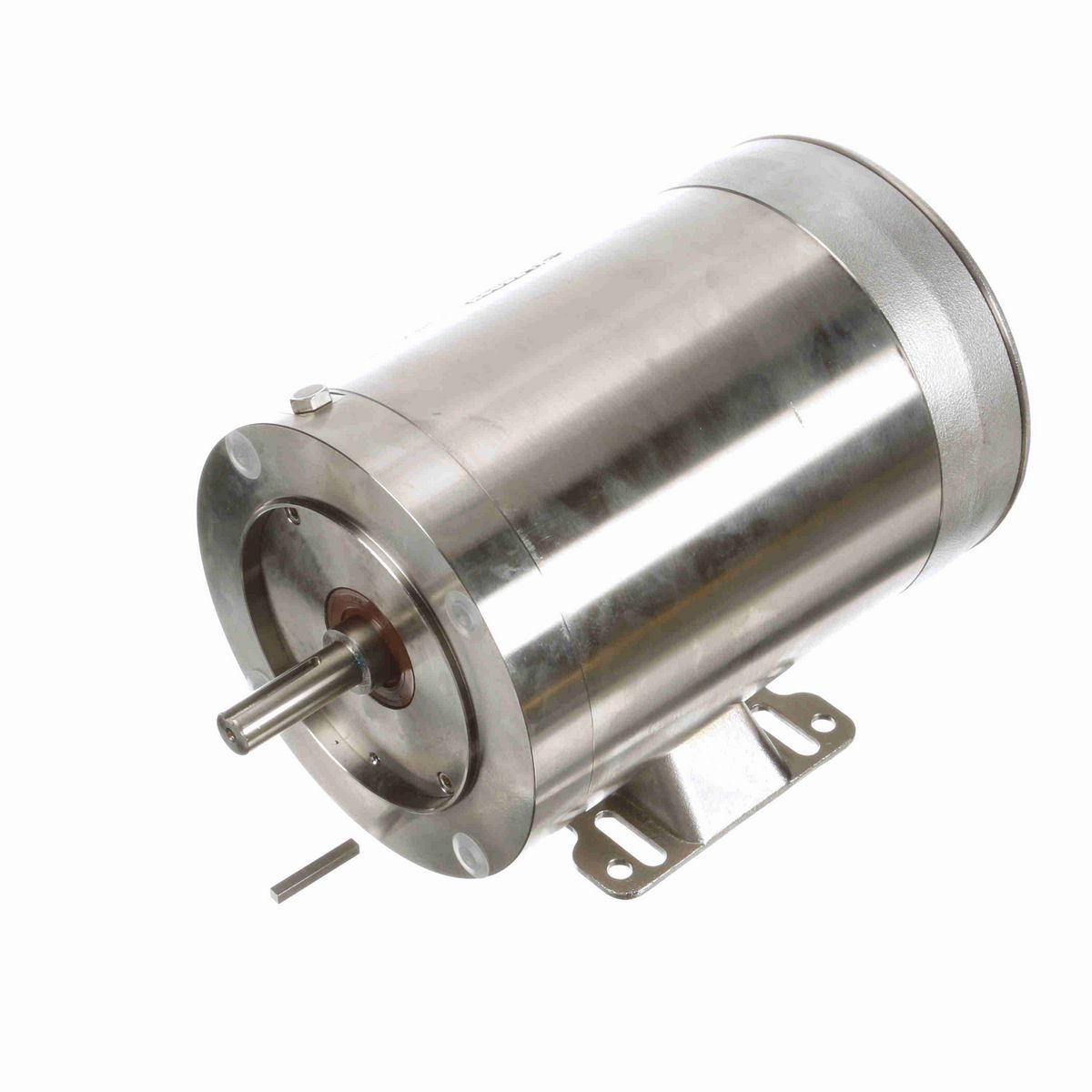

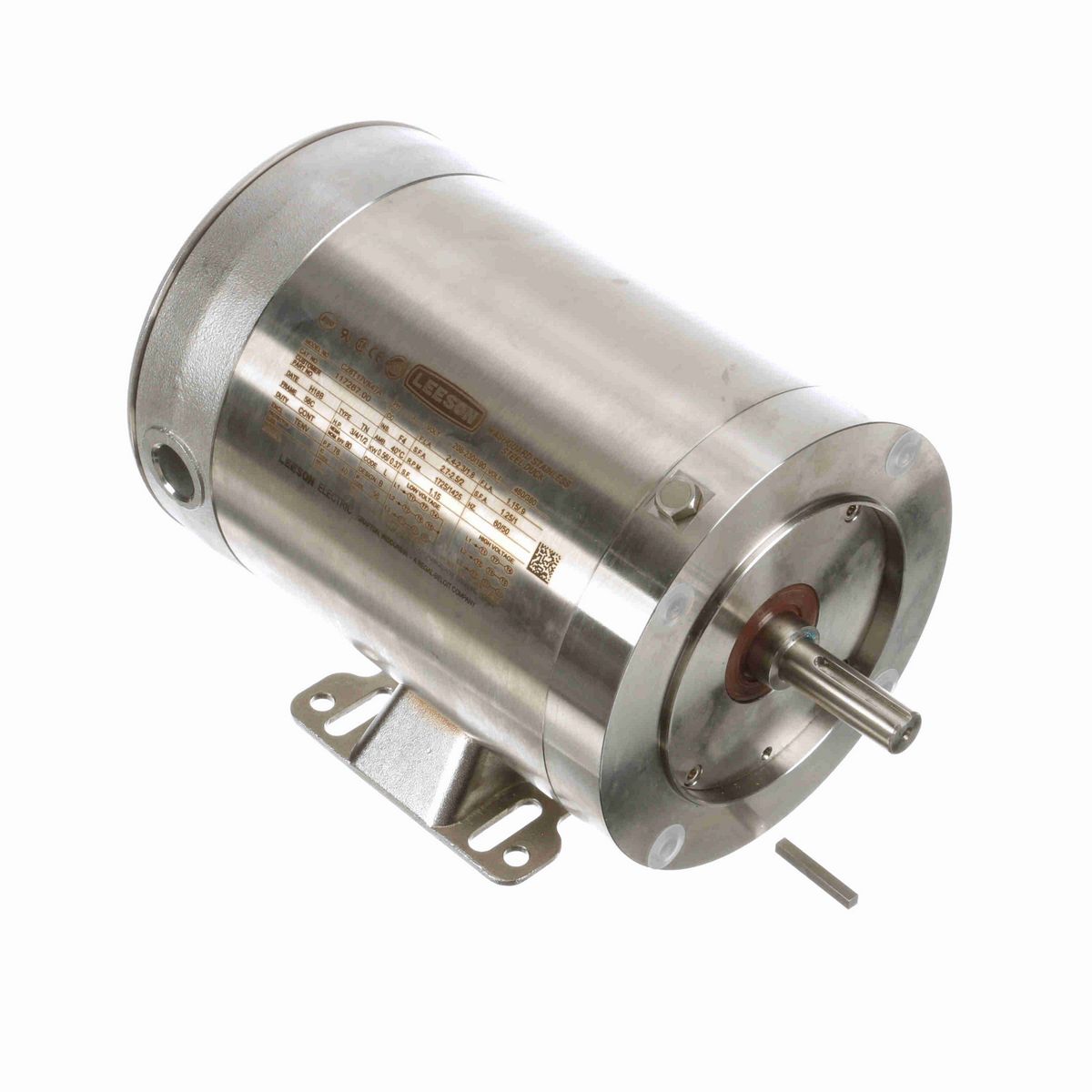

• Exterior 300-series stainless steel resists corrosion and maintains strength for reliable operation.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• All motor sealing components are Viton® for superior chemical resistance.
• Conduit box mounting system provides optimum seal and protection (when present in motor design).
• LEESON® motors. Motors and solutions at our core™

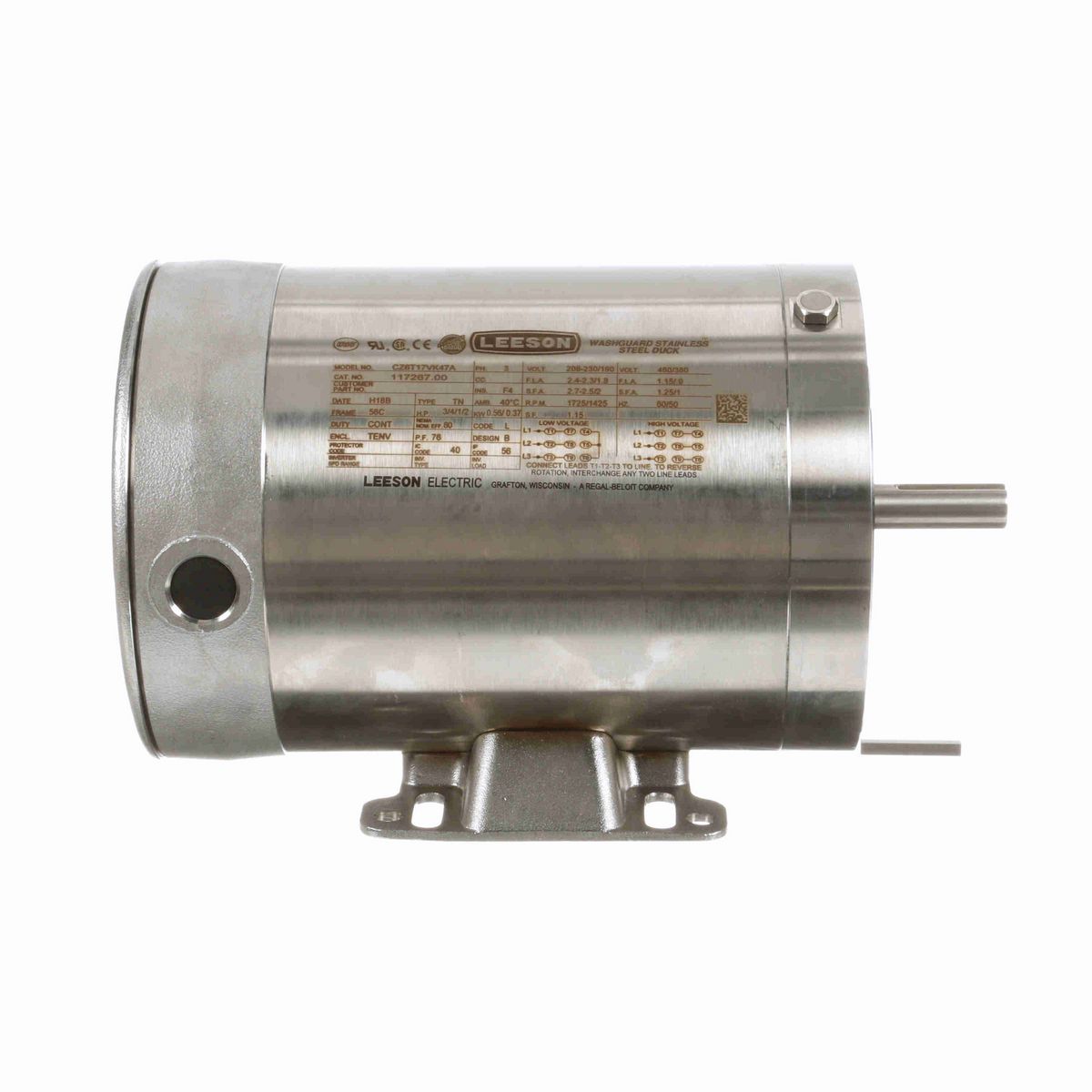

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	0.75 & 0.50 Hp
Output KW	0.56 & 0.37 kW
Voltage	230/460 & 190/380 V
Speed	1725 & 1425 rpm
Service Factor	1.15 & 1.15
Frame	56C
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	80 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	2.3/1.15 & 1.8/.9 A
Power Factor	76
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	L
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6205
UL	Recognized
CSA	Y
CE	Y
IP Code	56
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	4
Rotation	Reversible
Resistance Main	0 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Stainless Steel
Shaft Type	NEMA 56
Overall Length	11.72 in
Frame Length	6.50 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY
Inverter Load	CONSTANT 6:1

General Specifications

UPC	691720105818
Weight	43.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
