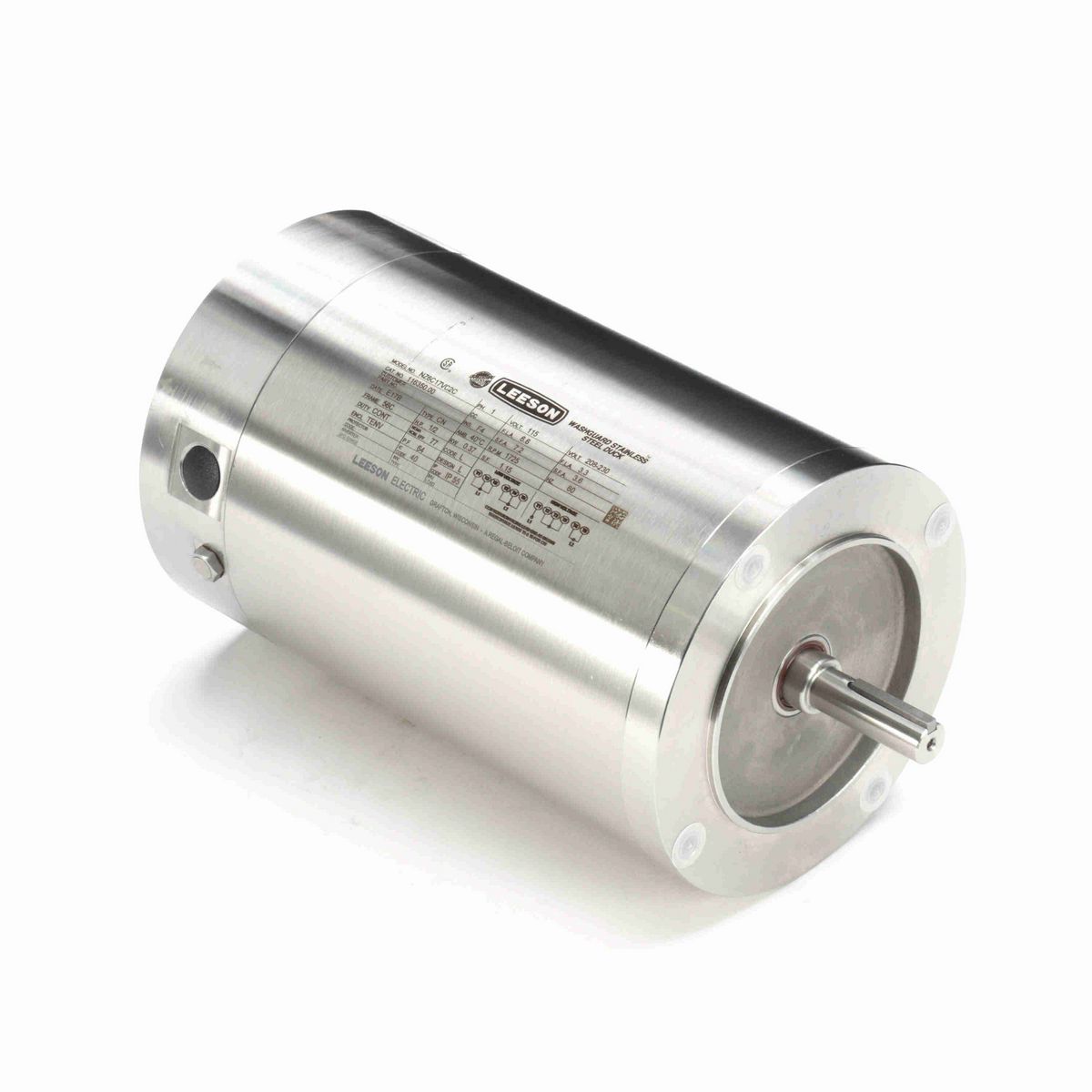

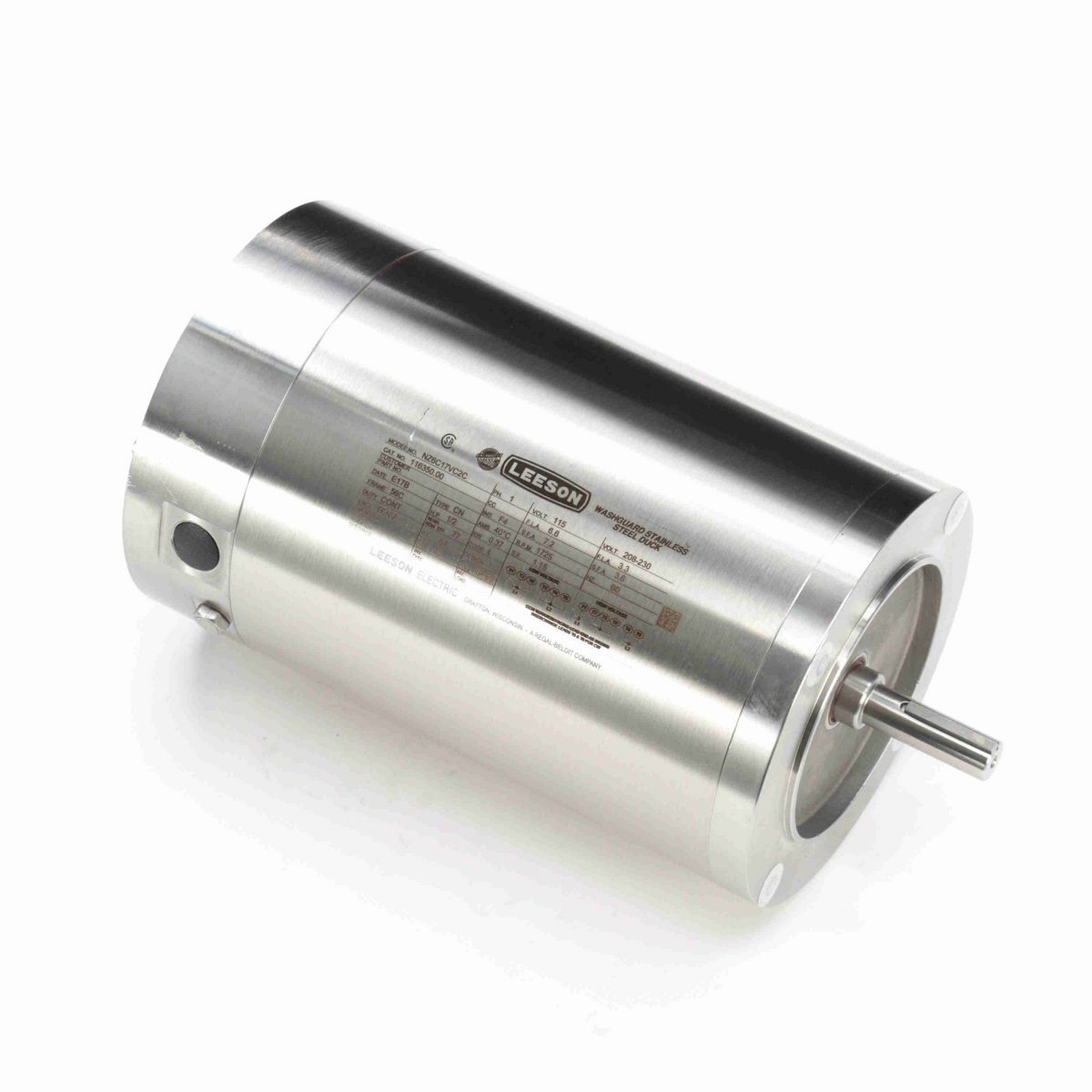

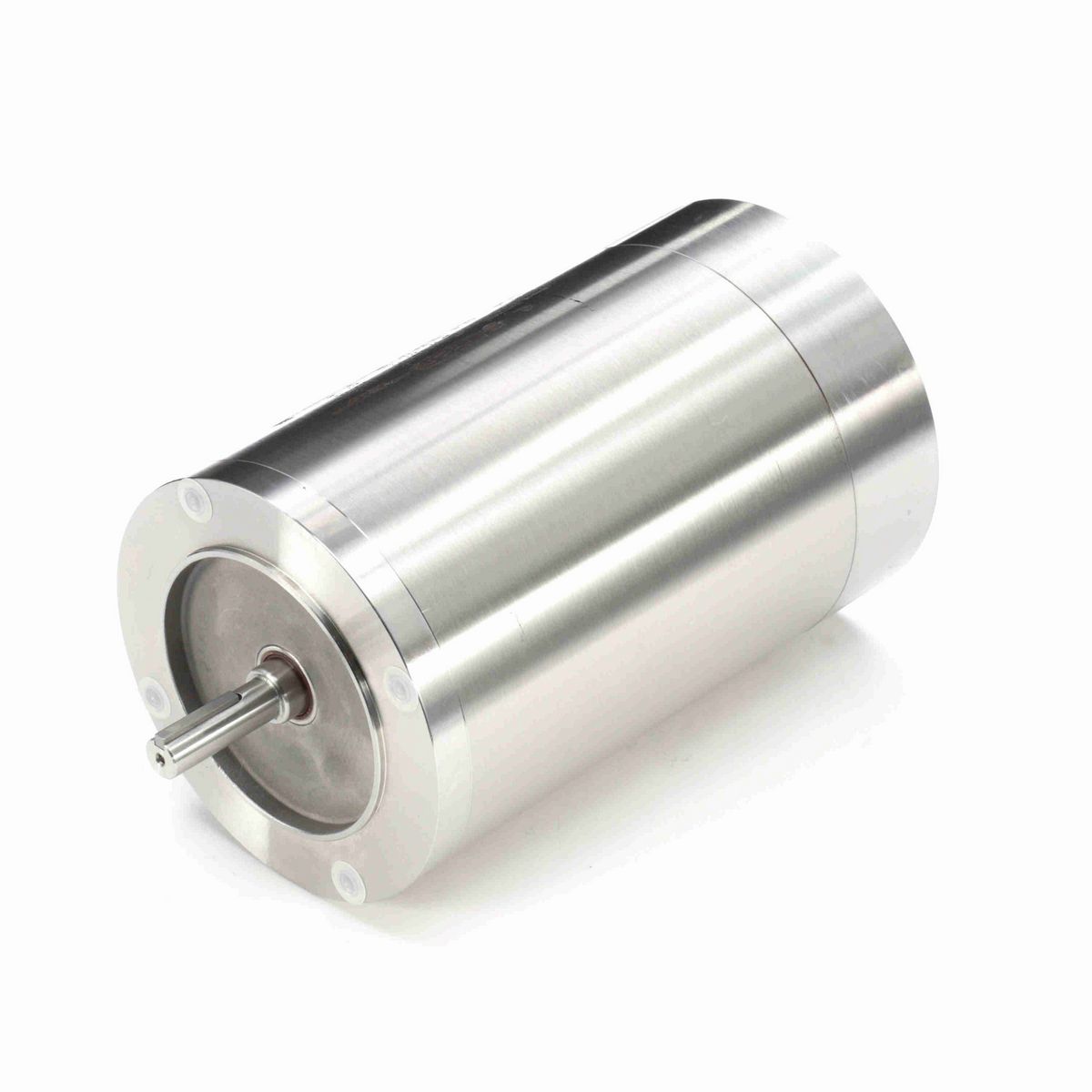

• All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
• End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
• Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
• Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
• Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
• Single-phase motors use Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail.
• LEESON® motors. Motors and solutions at our core™
• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	0.50 Hp
Output KW	0.37 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.15
Frame	56C
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	74 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	6.8/3.4 A
Power Factor	64
Duty	Continuous
Insulation Class	F
Design Code	L
KVA Code	L
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	No
CSA	Y
CE	N
IP Code	55
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	3.55 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	12.70 in
Frame Length	8.00 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720307472
Weight	38.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
