• UL recognized component listing and CSA certification ensures the product is safe for use.
• Full stainless steel exterior promotes resistance to water and chemical corrosion.
• Stainless steel output shaft seals protect against external contaminants.
• Insulation system offers superior protection against voltage spikes.
• Double sealed bearing construction extends the lifetime of the motor.
• LEESON® motors. Motors and solutions at our core™

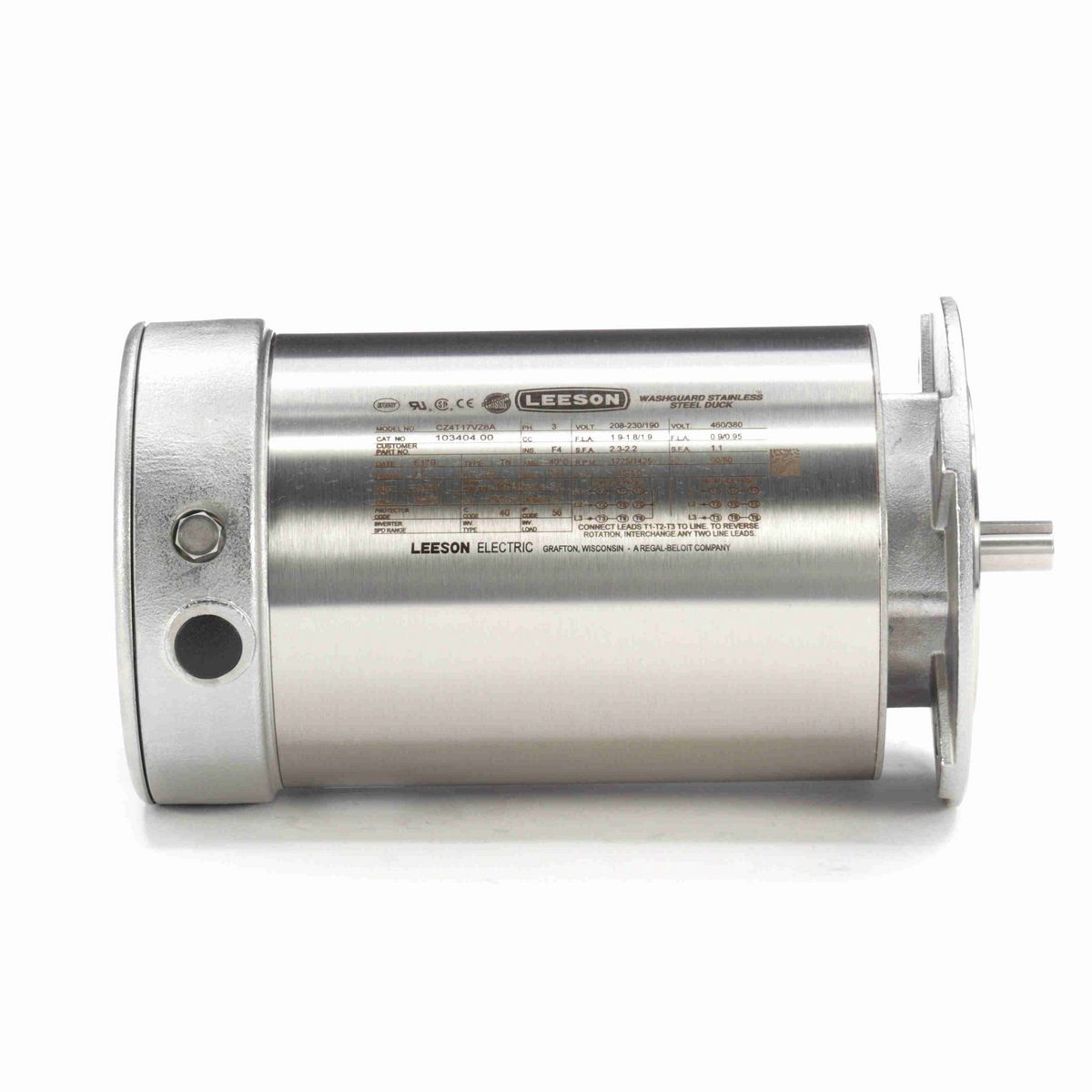

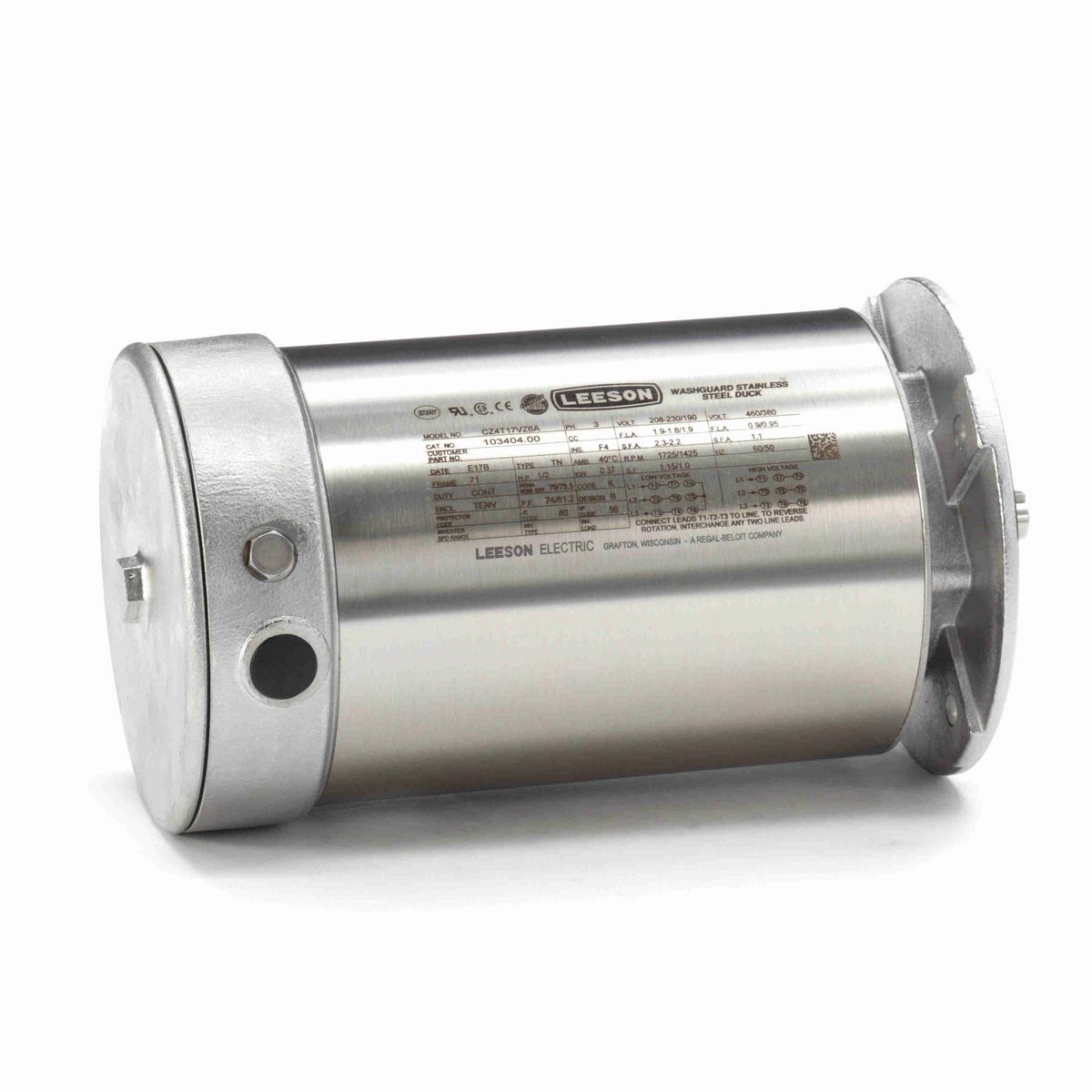

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	0.50 & 0.50 Hp
Output KW	0.37 & 0.37 kW
Voltage	230/460 & 190/380 V
Speed	1725 & 1425 rpm
Service Factor	1.15 & 1.0
Frame	71
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	76 & 78.5 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	1.8/0.9 & 1.9/0.95 A
Power Factor	74
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	K
Drive End Bearing Size	6204
Opp Drive End Bearing Size	6204
UL	Recognized
CSA	Y
CE	Y
IP Code	56
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Resistance Main	0 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Stainless Steel
Shaft Type	IEC
Overall Length	11.62 in
Frame Length	7.25 in
Shaft Diameter	0.562 in
Shaft Extension	1.18 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720989210
Weight	32.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
