• Compact and space saving design.
• External access to brushes supprots easy replacement for prolonged motor life.
• Double-shielded ball bearings provide longer service life.
• Reversible rotation allows greater flexibility within the application.
• High starting torque on start-up, to achieve a higher starting load required in sub-fractional applications.
• LEESON® motors. Motors and solutions at our core™

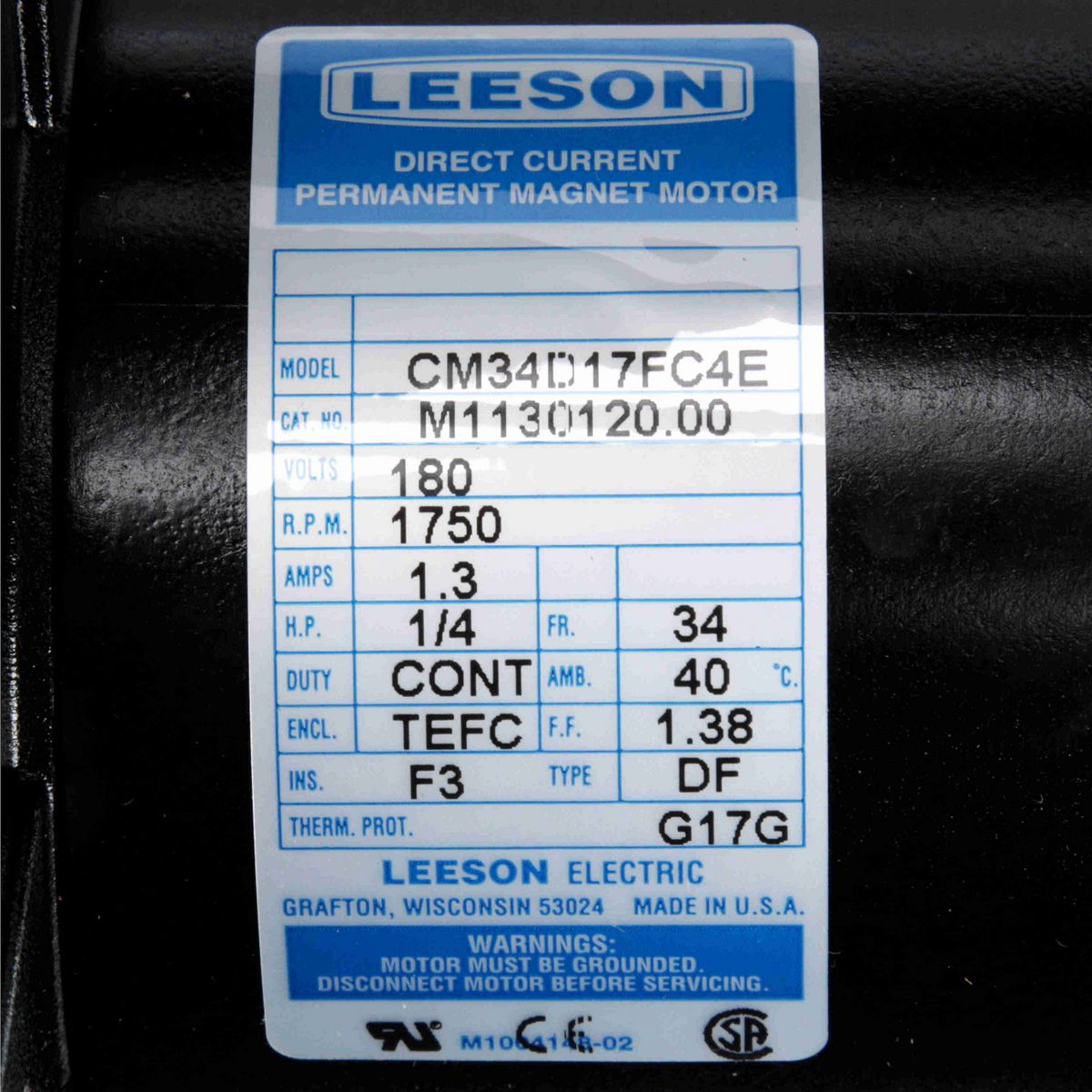

Nameplate Specifications

Output HP	0.25 Hp
Output KW	0.19 kW
Voltage	180 V
Speed	1750 rpm
Service Factor	1.0
Frame	34
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	77.2 %
Ambient Temperature	40 °C
Current	1.3 A
Duty	Continuous
Insulation Class	F
Drive End Bearing Size	6003
Opp Drive End Bearing Size	6201-13
UL	Recognized
CSA	Y
CE	Y

Technical Specifications

Rotation	Reversible
Mounting	Round
Overall Length	10.65 in
Frame Length	7.18 in
Shaft Diameter	0.625 in
Shaft Extension	2.06 in
Torque	9 LB-IN

General Specifications

UPC	691720091395
Weight	14.00 LB
Packaged Length	14.63 IN
Packaged Width	8.13 IN
Packaged Height	11.25 IN
Country of Origin	United States of America
