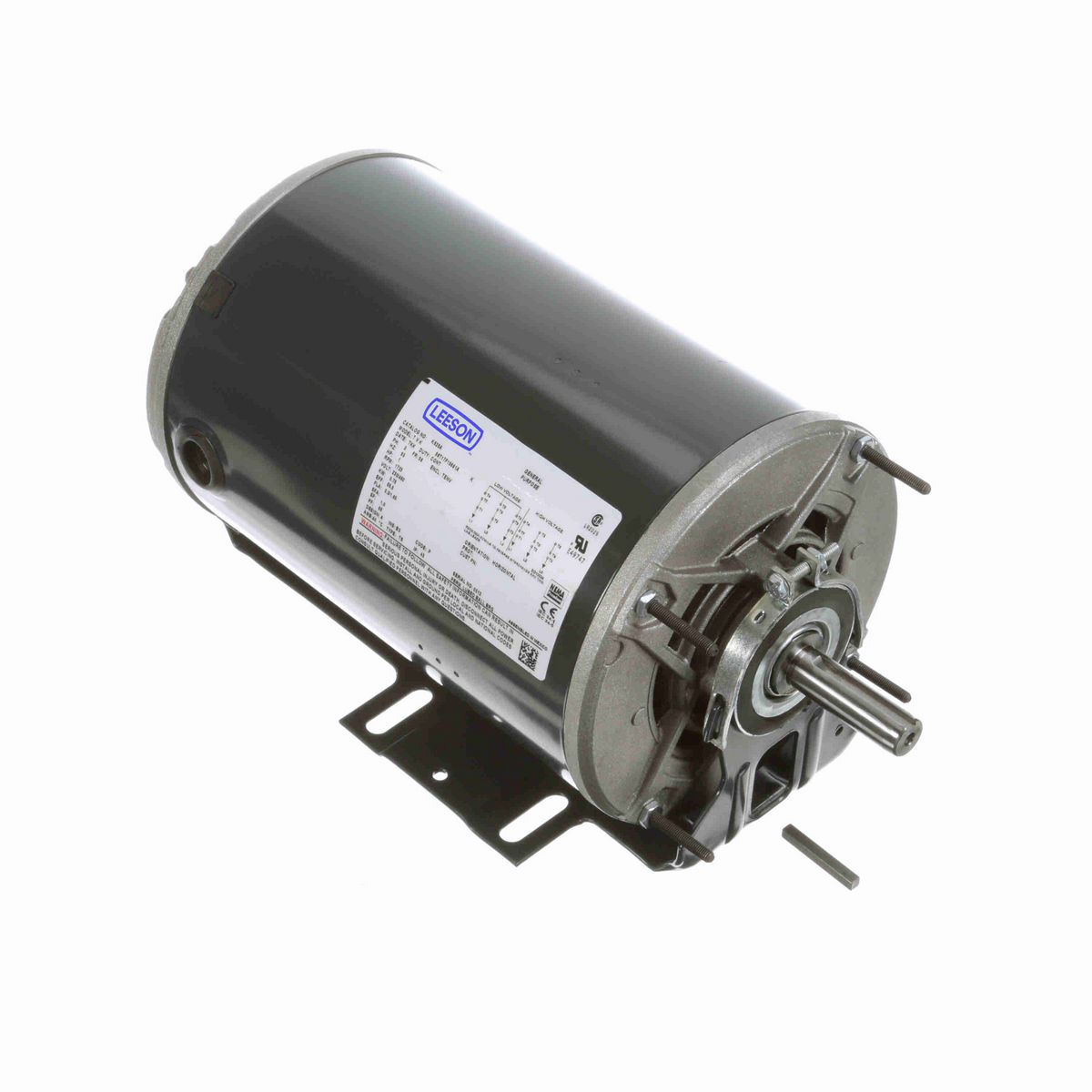

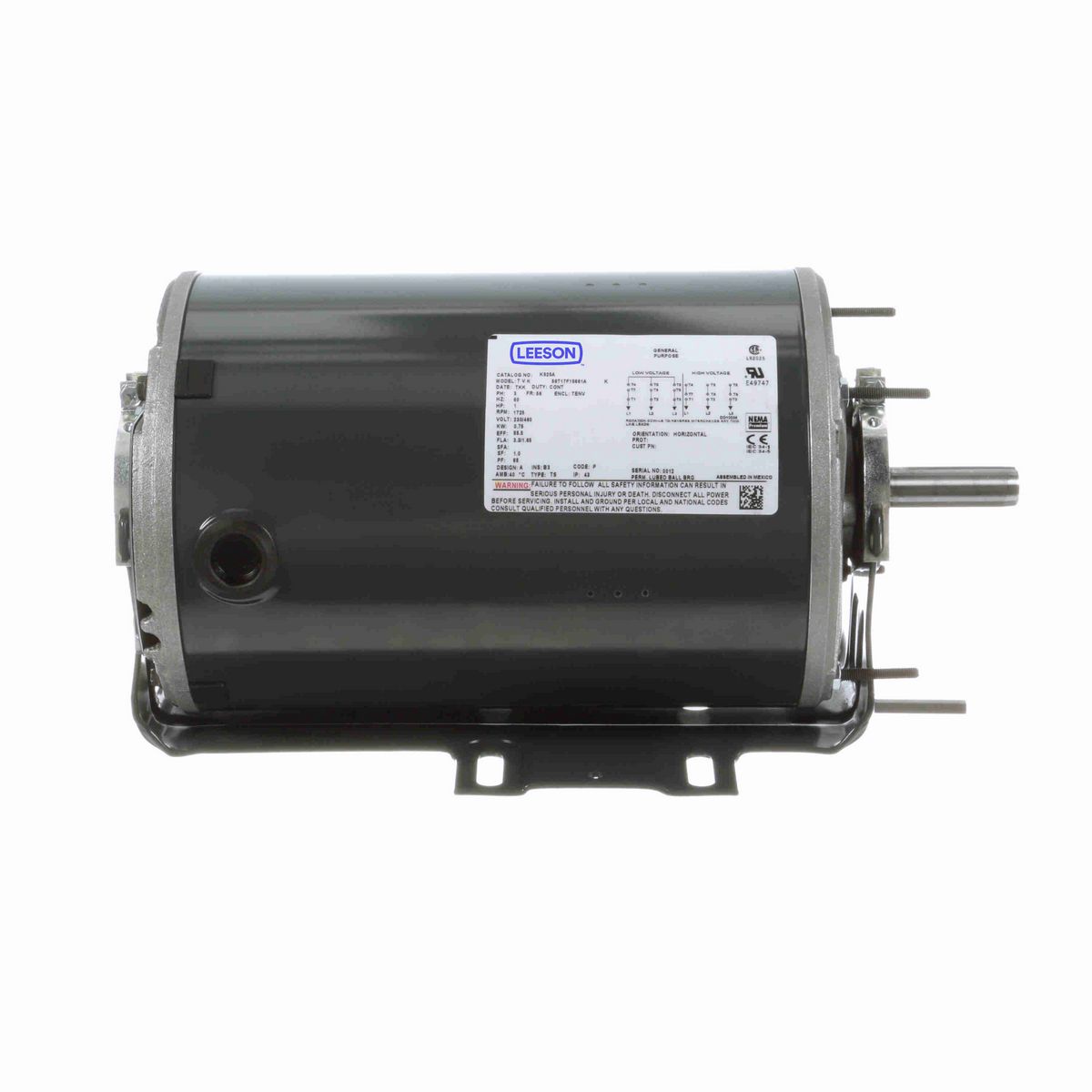

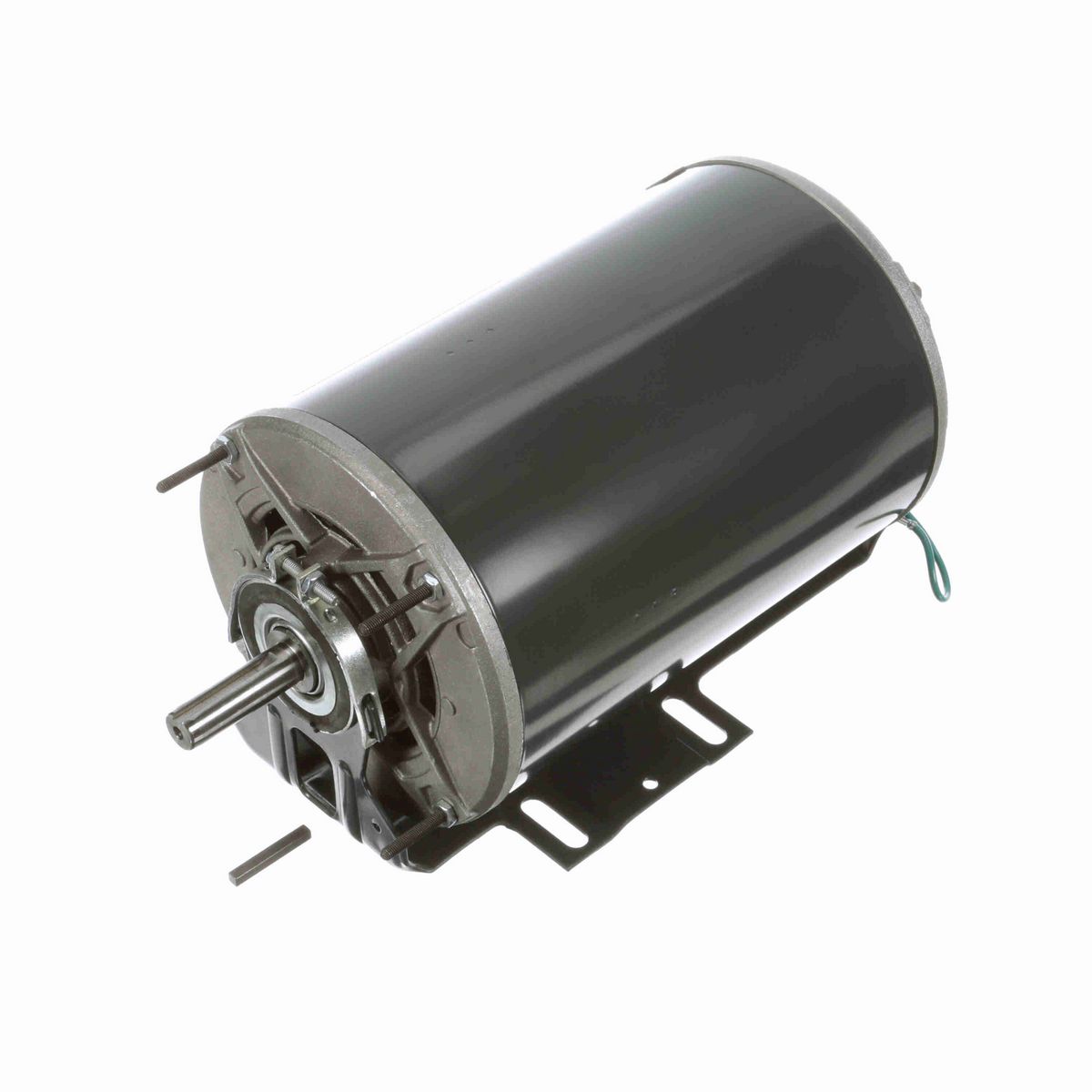

• Automatic reset thermal protector prevents overheating.
• IRIS® insulation system offers superior protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.
• LEESON® motors. Motors and solutions at our core™

Nameplate Specifications

Phase	3
Output HP	1 Hp
Output KW	0.75 kW
Voltage	230/460 V
Speed	1725 rpm
Service Factor	1.0
Frame	56
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	85.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.3/1.7 A
Power Factor	68
Duty	Continuous
Insulation Class	B
Design Code	A
KVA Code	P
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Resistance Main	11.8 Ohms
Mounting	Resilient Base - Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	13.04 in
Frame Length	8.65 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	722856051912
Weight	41.00 LB
Packaged Length	15.50 IN
Packaged Width	12.25 IN
Packaged Height	9.38 IN
HTC	8501.51.6040
Country of Origin	Mexico
