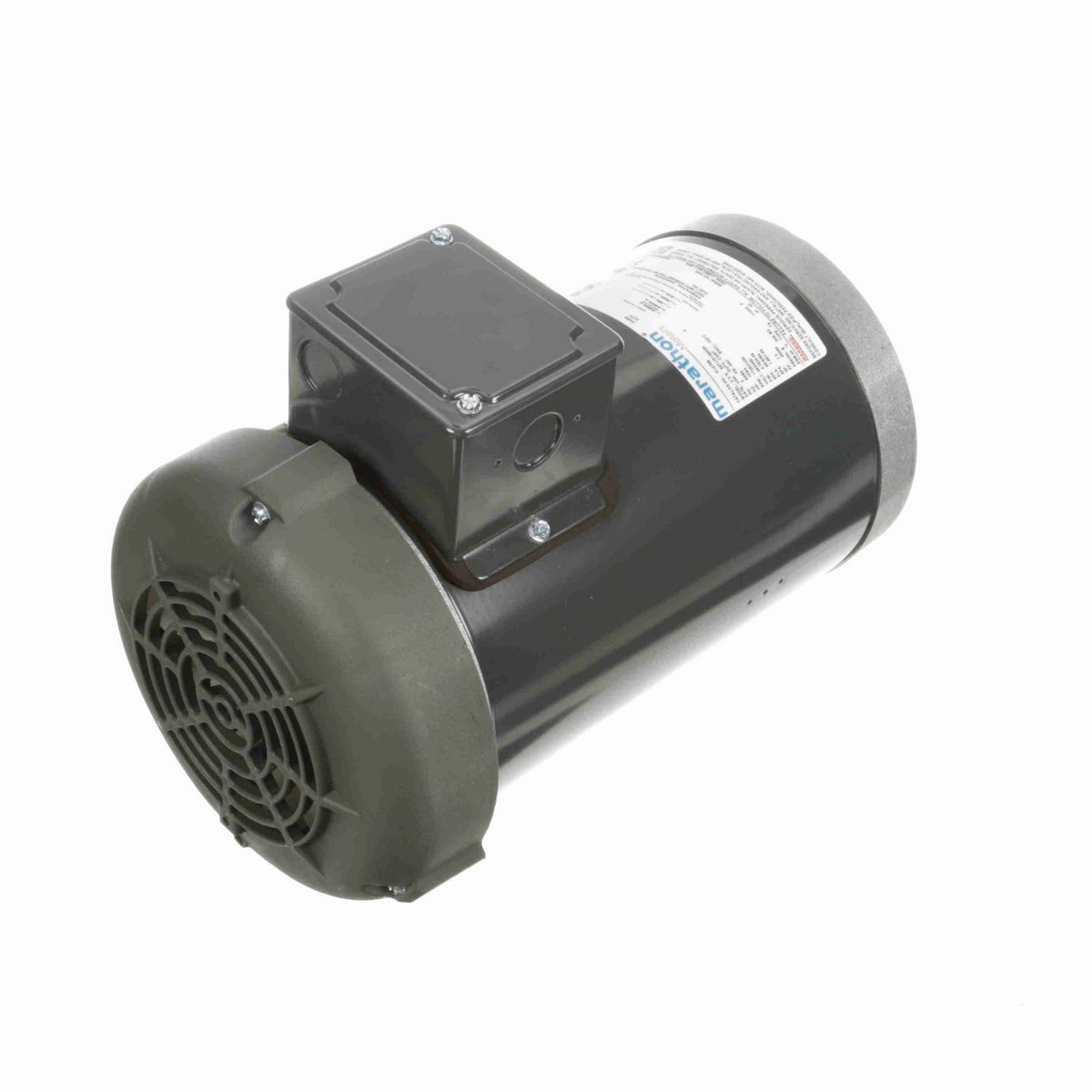

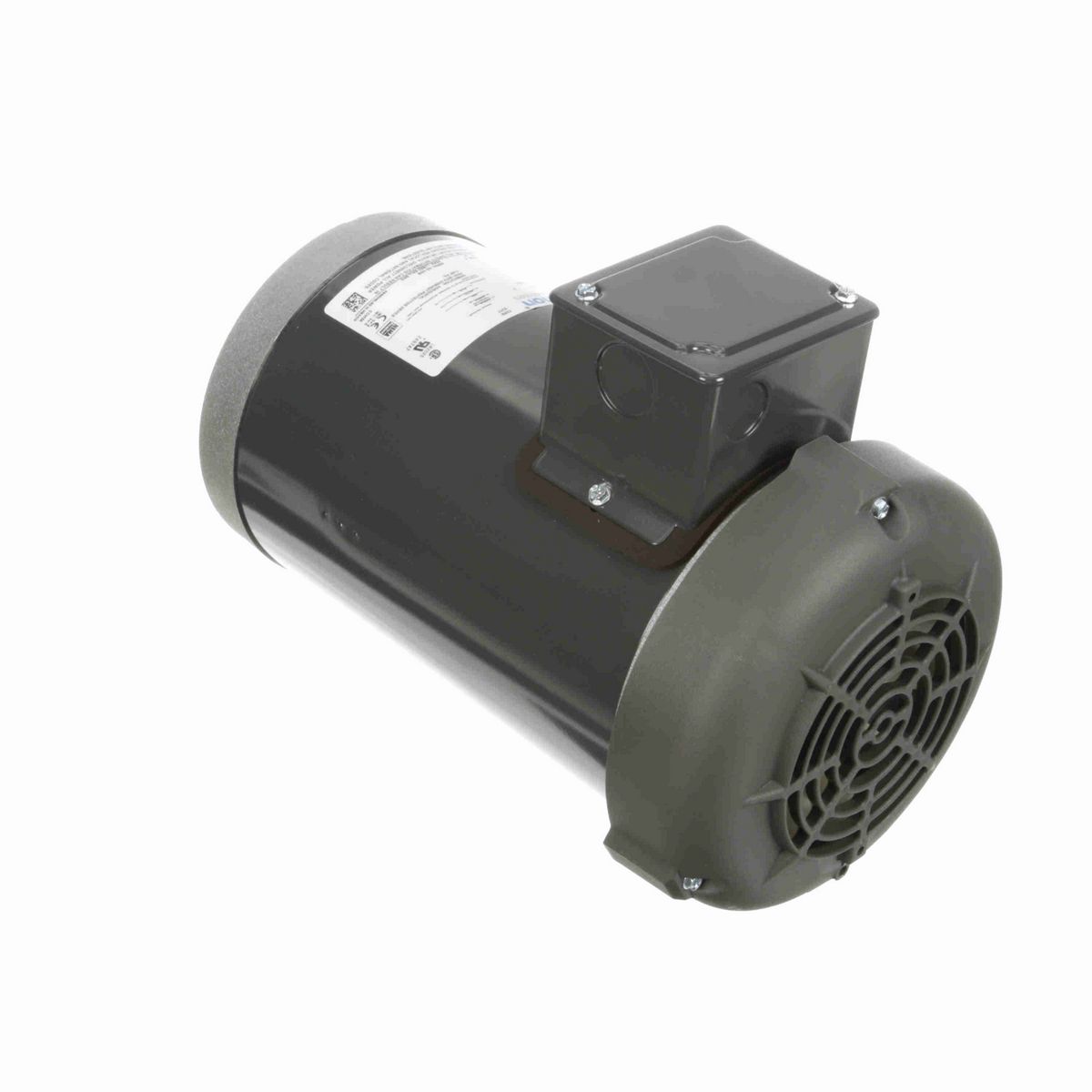

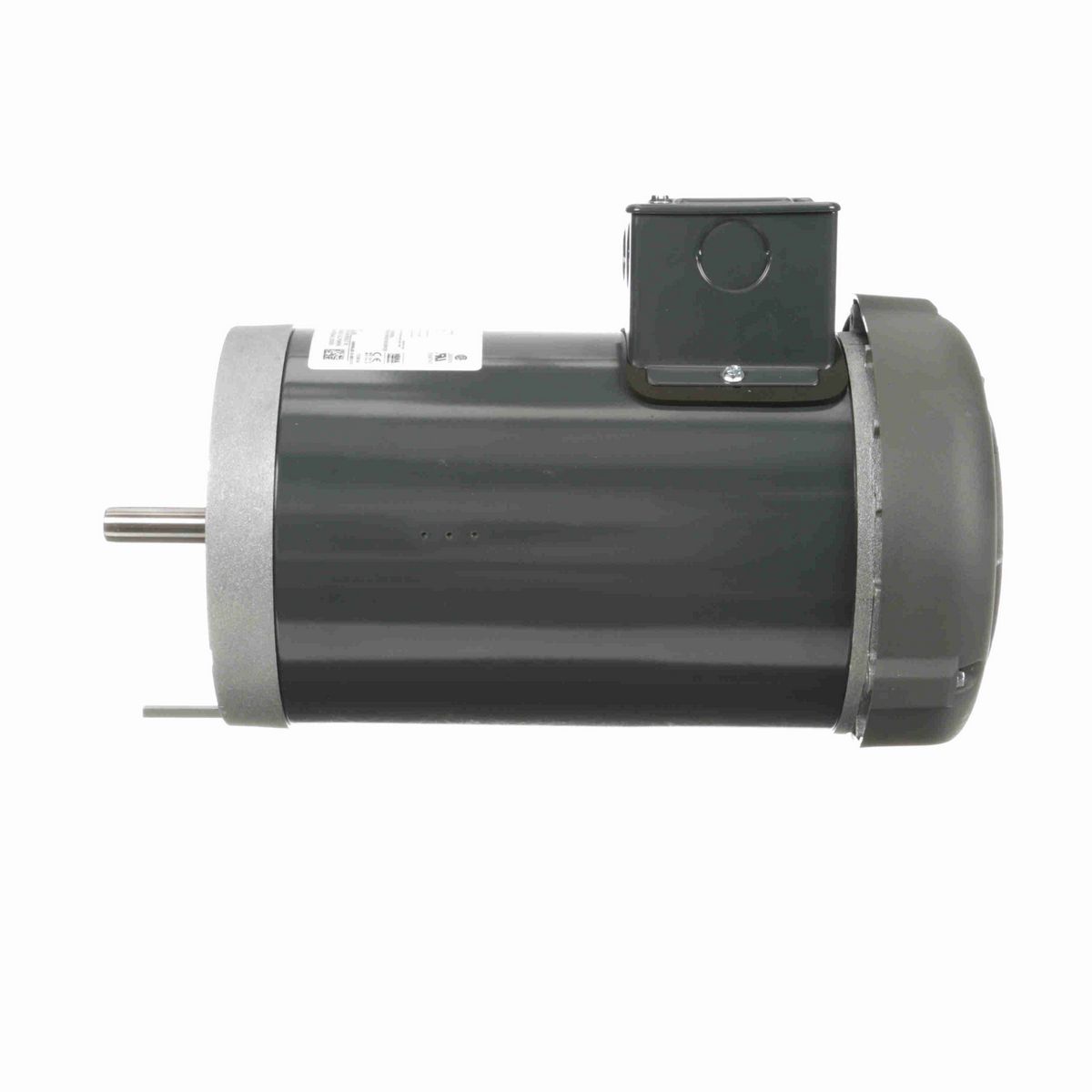

• Farm Duty irrigation motor
• C-face footless, Top mounted terminal box
• Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
• Thermostats for thermal overload protection
• Motor will not accept a brake kit
• As of 4/30/24 this product is now listed as LEESON® brand due to <a href="https://investors.regalrexnord.com/investors/ir-news/press-release-details/2024/Regal-Rexnord-Corporation-Closes-The-Sale-Of-Its-Industrial-Motors--Generators-Business-To-WEG/default.aspx">the divestiture of the Industrial Business.</a>

Nameplate Specifications

Phase	3
Output HP	1 & 0.75 Hp
Output KW	0.75 & 0.56 kW
Voltage	460 & 380 V
Speed	1725 & 1425 rpm
Service Factor	1.0 & 1.0
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	85.5 & 84 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	1.65 & 1.55 A
Power Factor	68
Duty	Continuous
Insulation Class	B
Design Code	B
KVA Code	P
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Resistance Main	11.8 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	14.15 in
Frame Length	8.65 in
Shaft Diameter	0.625 in
Shaft Extension	2.06 in
Assembly/Box Mounting	F3

General Specifications

UPC	722856065827
Weight	41.00 LB
Packaged Length	19.69 IN
Packaged Width	12.31 IN
Packaged Height	12.62 IN
Country of Origin	Mexico
