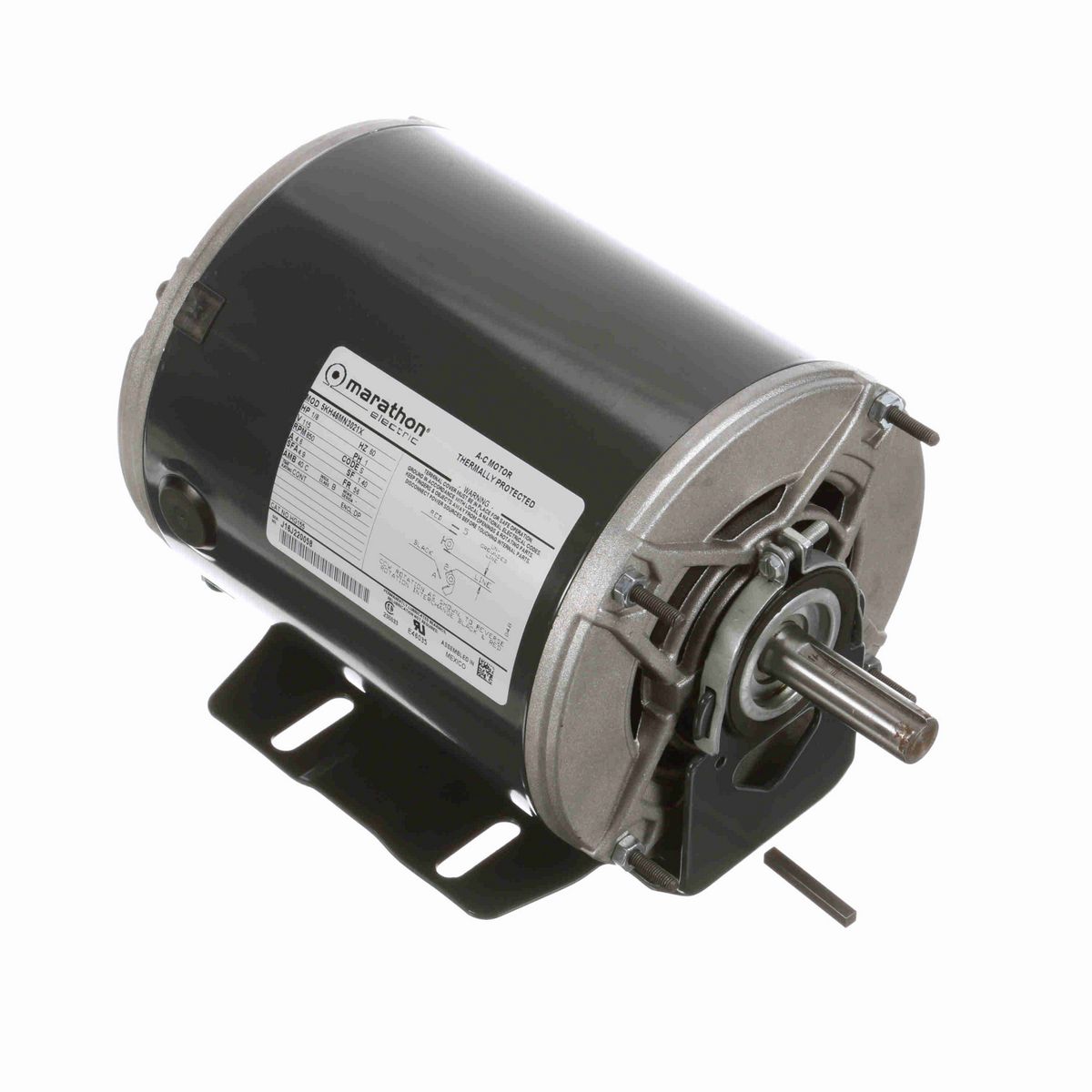

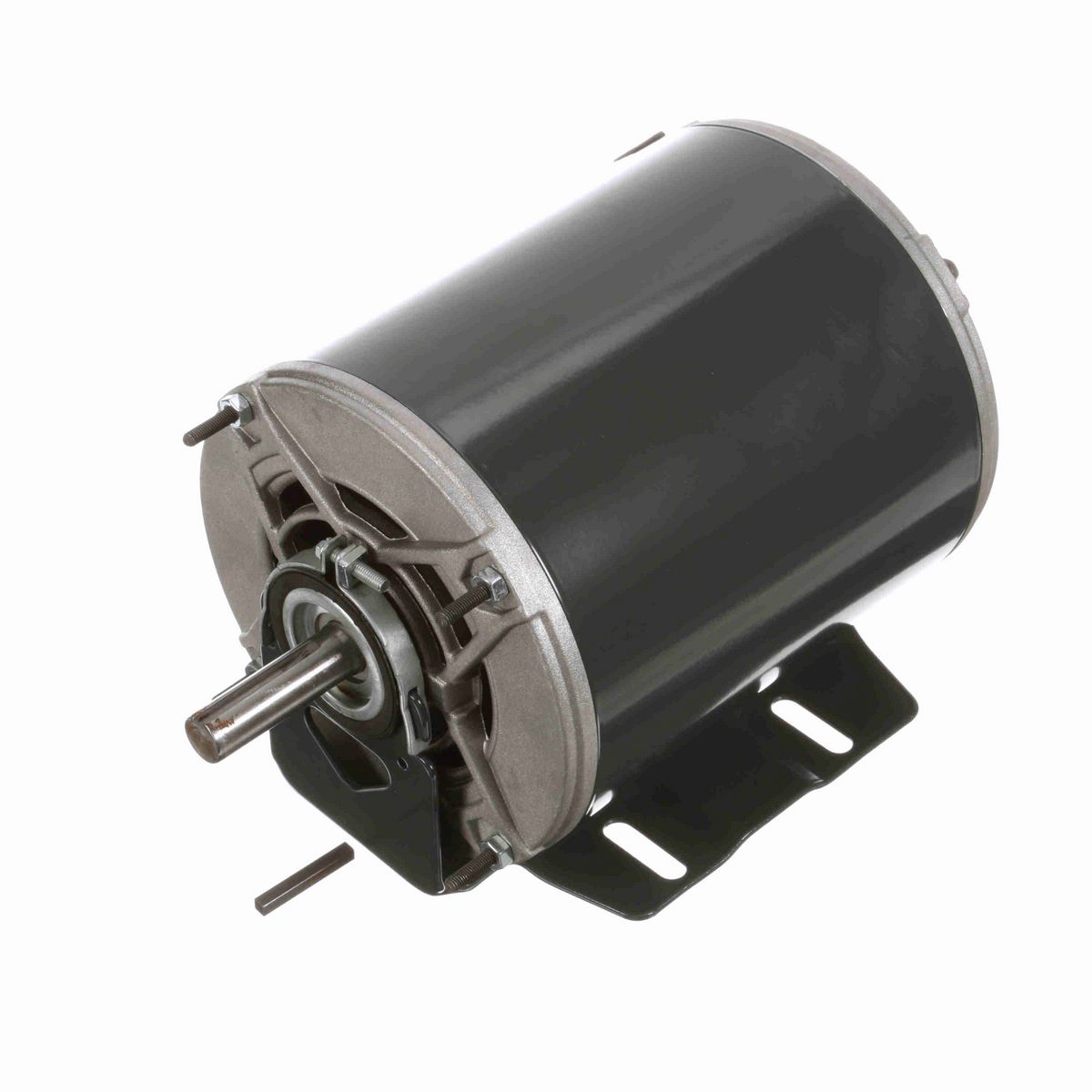

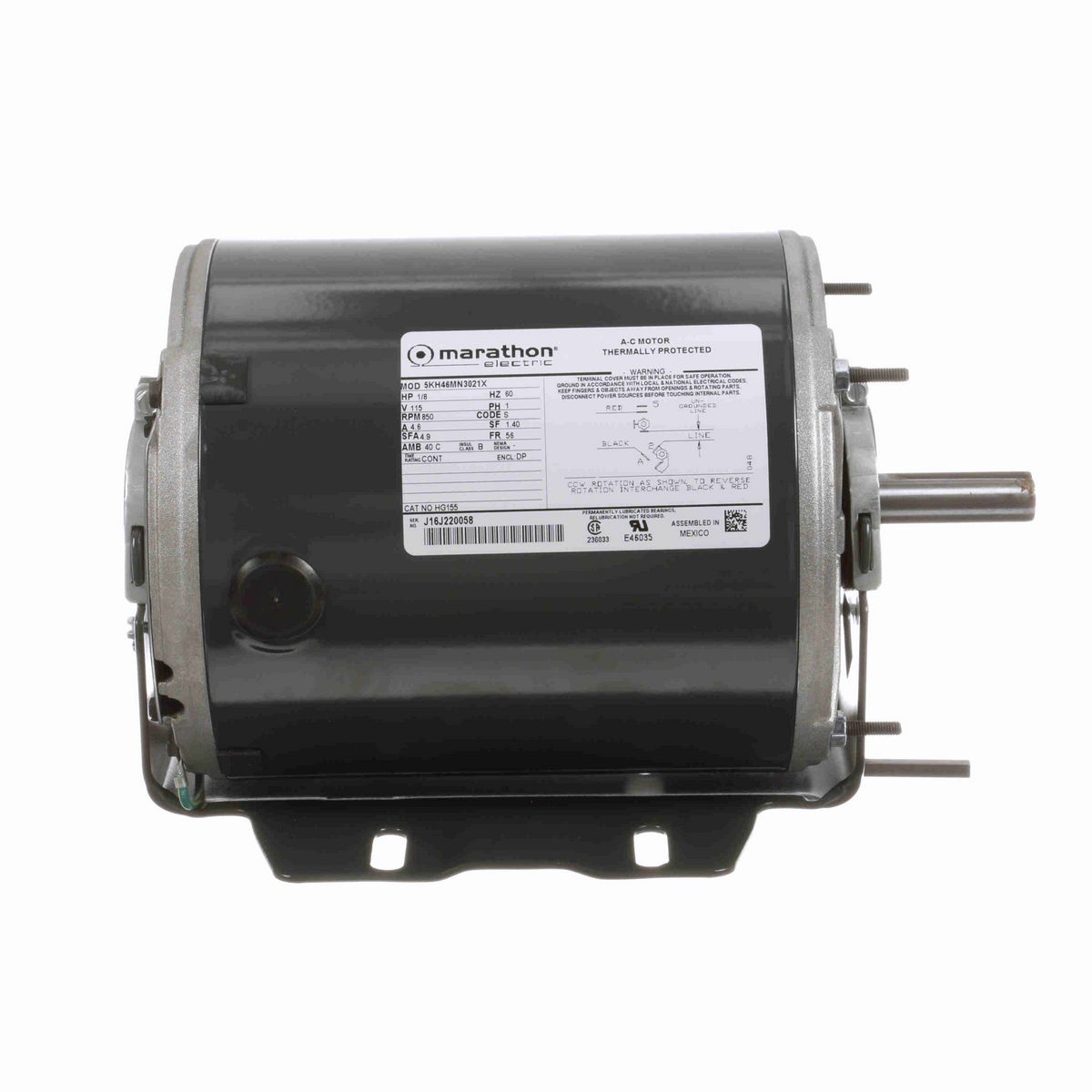

LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155

LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155
LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155
LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155
LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155
(0)
Нет в наличии
LEESON
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155
LEESON Fan and Blower Motor, 0.13 HP, 1 Ph, 60 Hz, 115 V, 900 RPM, 56 Frame, DP - HG155
(0)
Нет в наличии
0 руб.


  • Automatic reset thermal protector prevents overheating.
  • IRIS® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • As of 4/30/24 this product is now listed as LEESON® brand due to <a href="https://investors.regalrexnord.com/investors/ir-news/press-release-details/2024/Regal-Rexnord-Corporation-Closes-The-Sale-Of-Its-Industrial-Motors--Generators-Business-To-WEG/default.aspx">the divestiture of the Industrial Business.</a>
Nameplate Specifications
Phase1
Output HP0.13 Hp
Output KW0.10 kW
Voltage115 V
Speed850 rpm
Service Factor1.4
Frame56
EnclosureDrip Proof
Thermal ProtectionAutomatic
Efficiency40 %
Ambient Temperature40 °C
Frequency60 Hz
Current4.6 A
Power Factor0
DutyContinuous
Insulation ClassB
KVA CodeS
Drive End Bearing Size6203
Opp Drive End Bearing Size6203
ULRecognized
CSAYes
CEN
Number of Speeds1
Technical Specifications
Electrical TypeSplit Phase
Starting MethodSM
Poles8
RotationCounterclockwise/Clockwise
MountingResilient Base
Motor OrientationANY
Drive End BearingBALL
Opp Drive End BearingBall
Frame MaterialRolled Steel
Overall Length10.88 in
Frame Length6.55 in
Shaft Diameter0.630 in
Shaft Extension1.88 in
General Specifications
UPC722856039620
Weight32.00 LB
Packaged Length13.69 IN
Packaged Width7.13 IN
Packaged Height7.50 IN
HTC8501.40.4040
Country of OriginMexico
