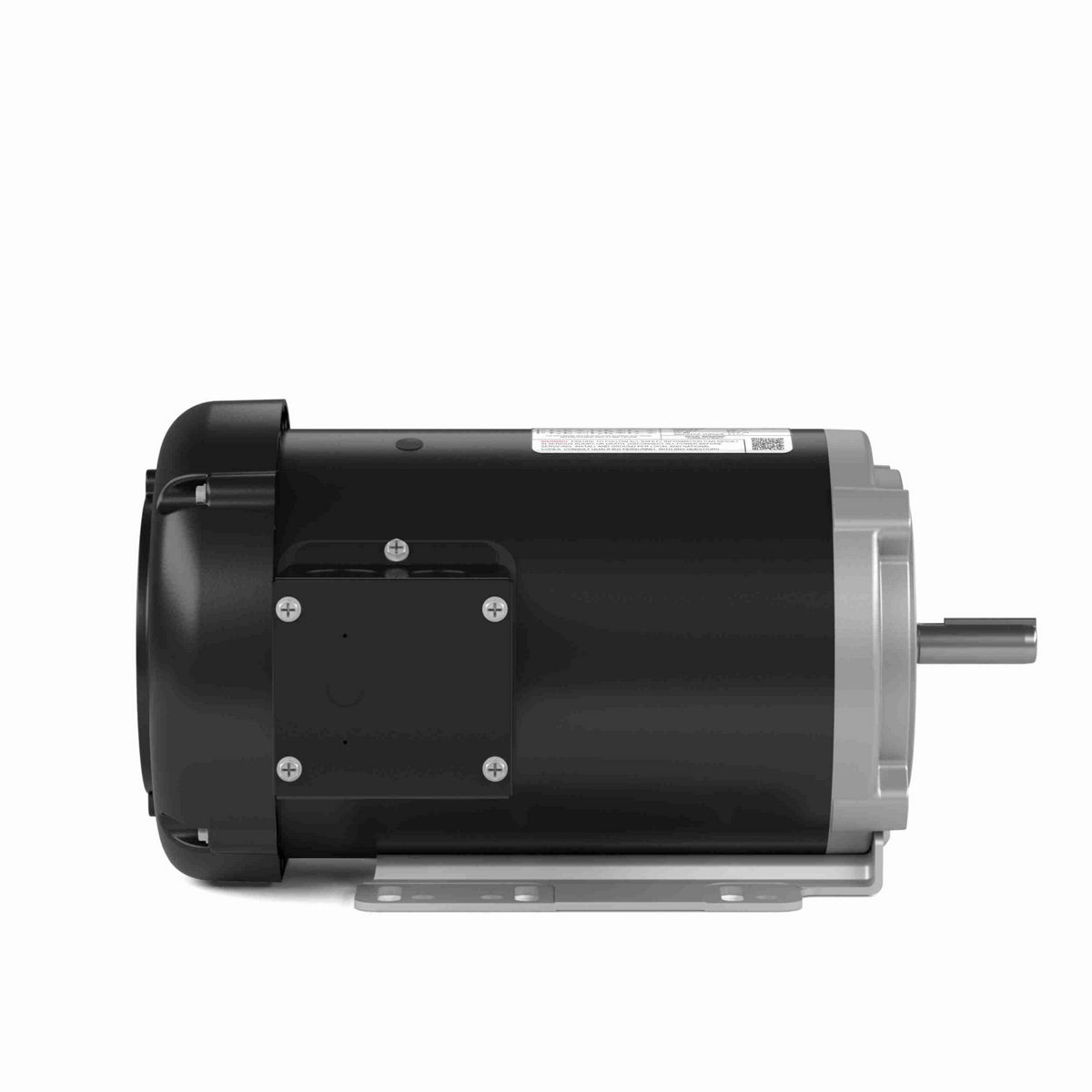

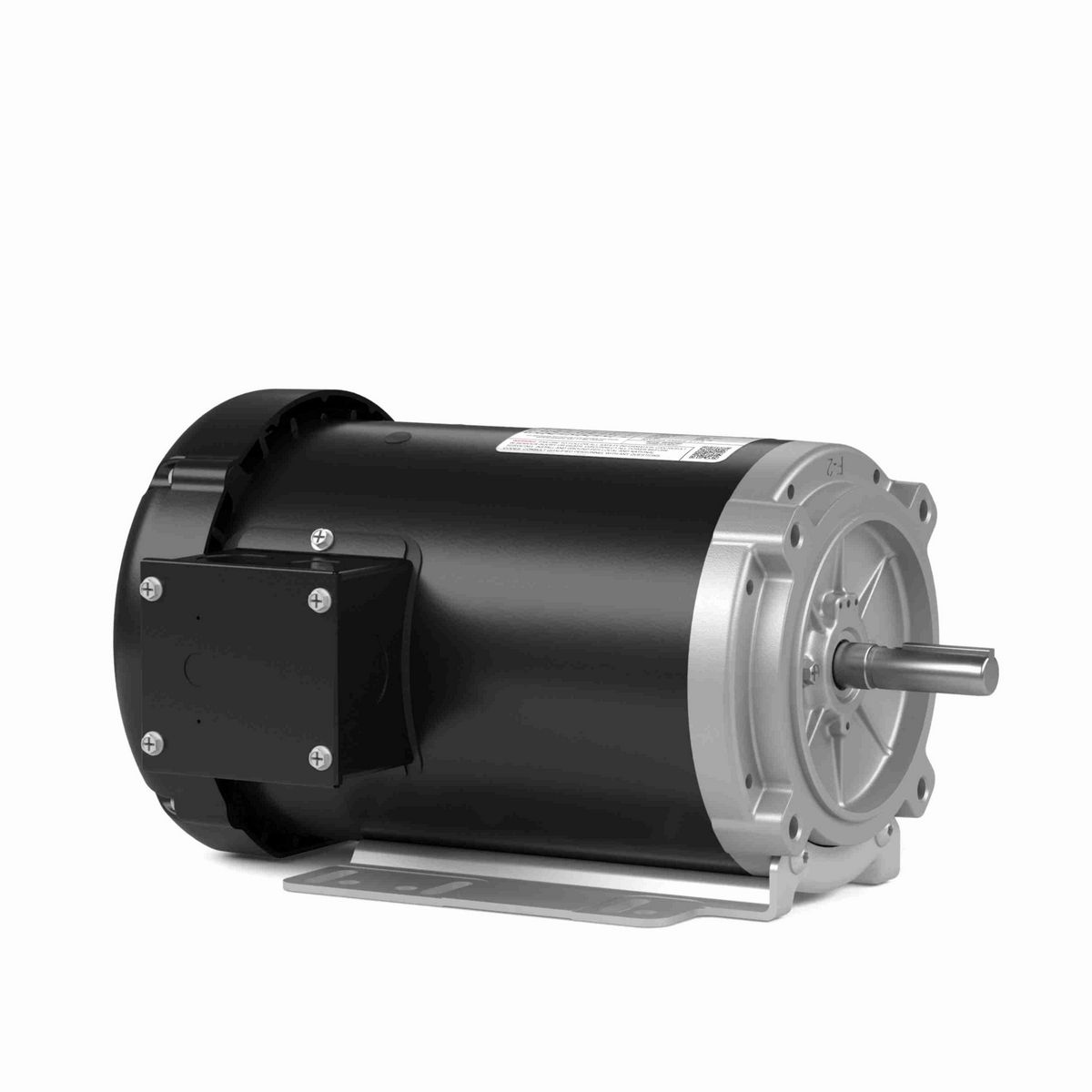

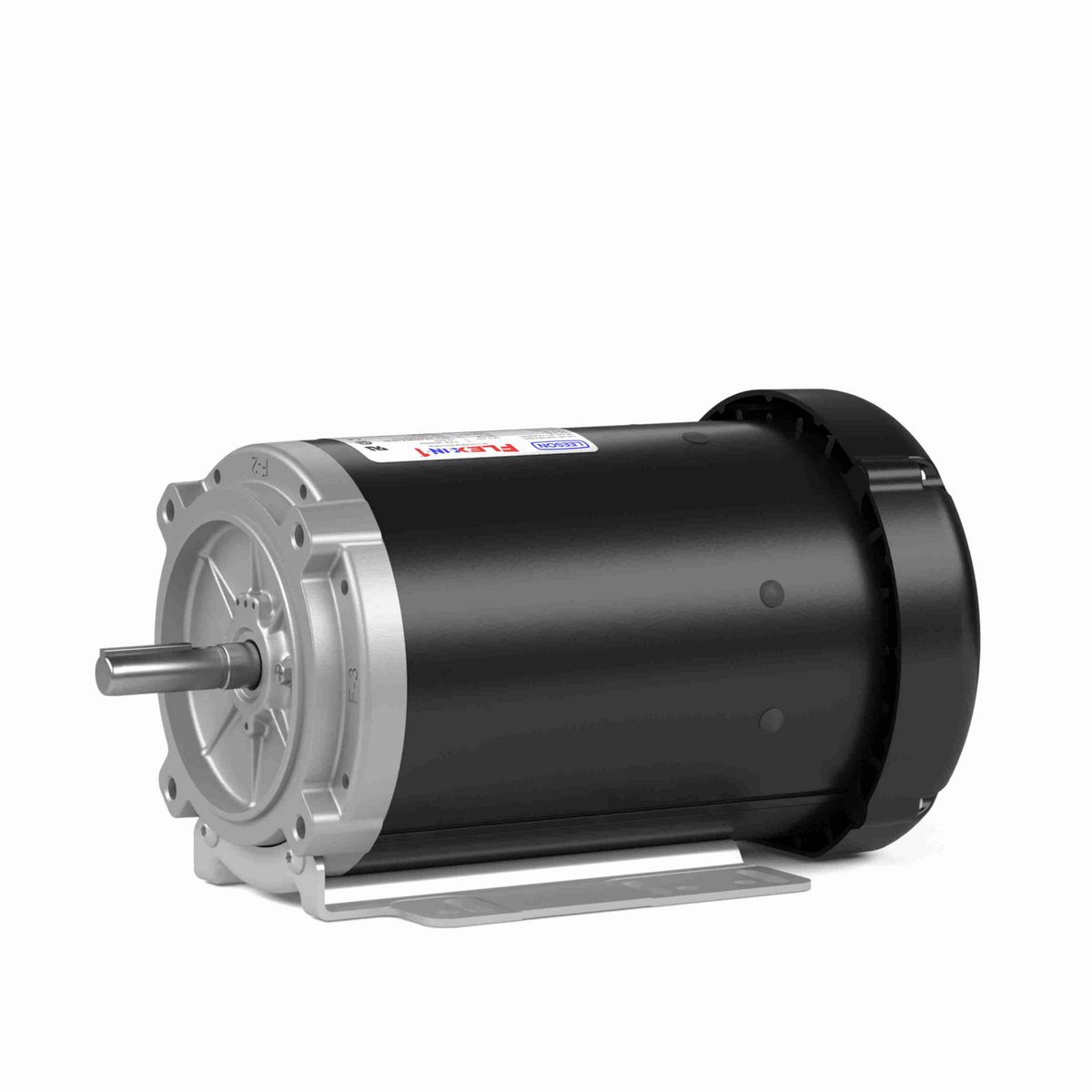

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
• Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
• Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
• *** Kits sold separately. Light assembly required.
• LEESON® motors. Motors and solutions at our core™

Nameplate Specifications

Phase	3
Output HP	0.75 & 0.75 Hp
Output KW	0.56 & 0.56 kW
Voltage	208-230/460 & 190/380 V
Speed	3450 & 2850 rpm
Service Factor	1.25 & 1.00
Frame	56HC
Enclosure	Drip Proof
Thermal Protection	No Protection
Efficiency	82.5 & 81.5 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	2.5-2.6/1.3 & 2.6/1.3 A
Power Factor	68
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	M
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	22
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	2
Rotation	Reversible
Resistance Main	0 Ohms
Mounting	Bolt-on Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Shaft Diameter	0.625 in
Assembly/Box Mounting	F1 F2/F3 CAPABLE
Inverter Load	CONSTANT 2:1

General Specifications

UPC	691720115466
Weight	23.00 LB
Packaged Length	16.12 IN
Packaged Width	10.25 IN
Packaged Height	8.12 IN
Country of Origin	Mexico
