• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Premium efficiency promotes improved reliability.
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• LEESON® motors. Motors and solutions at our core™

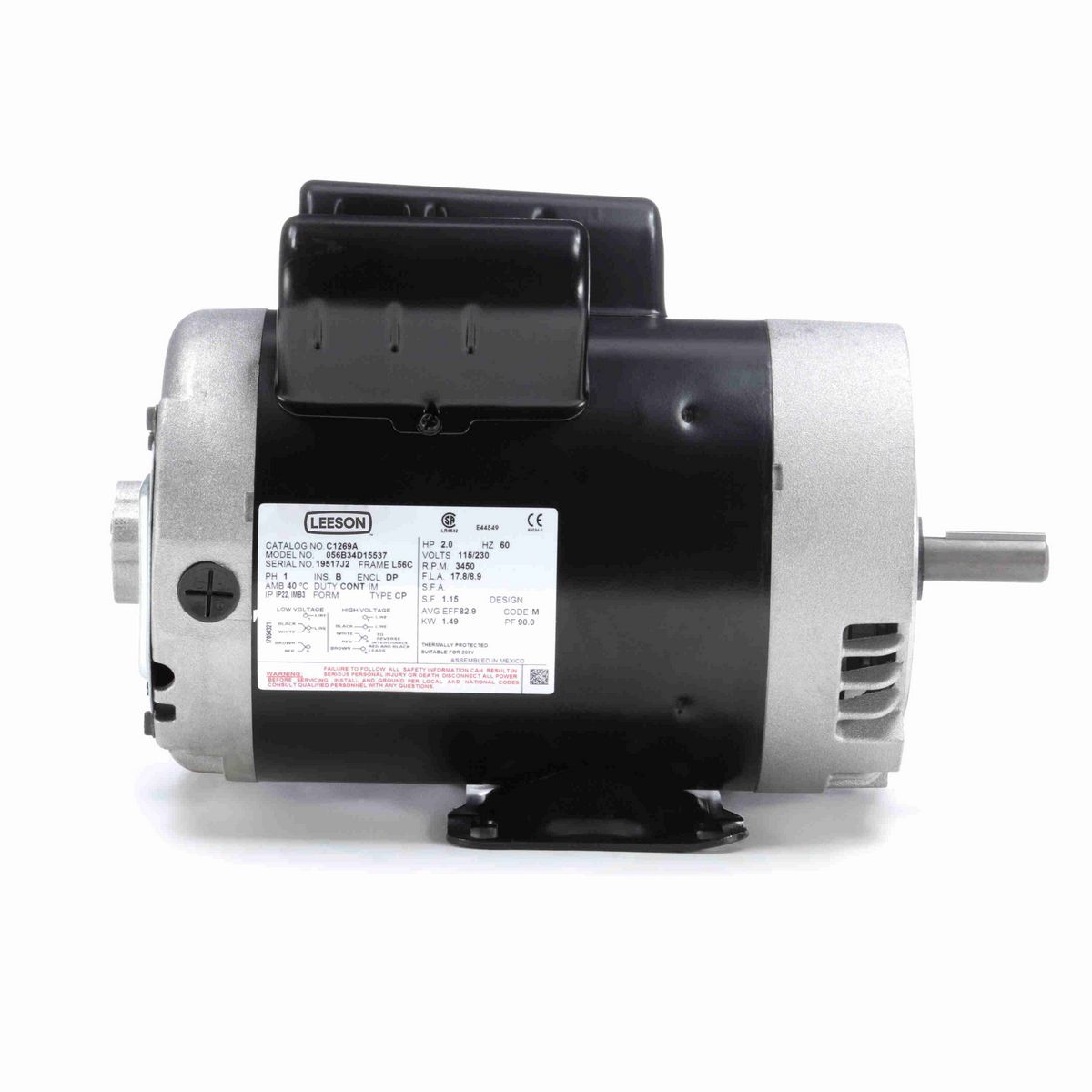

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	2 Hp
Output KW	1.5 kW
Voltage	115/230 V
Speed	3450 rpm
Service Factor	1.15
Frame	56C
Enclosure	Drip Proof
Thermal Protection	Manual
Efficiency	82.9 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	17.8/8.9 A
Power Factor	90
Duty	Continuous
Insulation Class	B
Design Code	NO DESIGN CODE
KVA Code	K
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	12
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Capacitor Run
Starting Method	Across The Line
Poles	2
Rotation	Selective Counterclockwise
Resistance Main	.8 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	T
Overall Length	12.69 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 OUT ODE BRKT RADIAL

General Specifications

UPC	722856056238
Weight	31.00 LB
Packaged Length	15.13 IN
Packaged Width	10.13 IN
Packaged Height	9.63 IN
HTC	8501.40.6040
Country of Origin	Mexico
