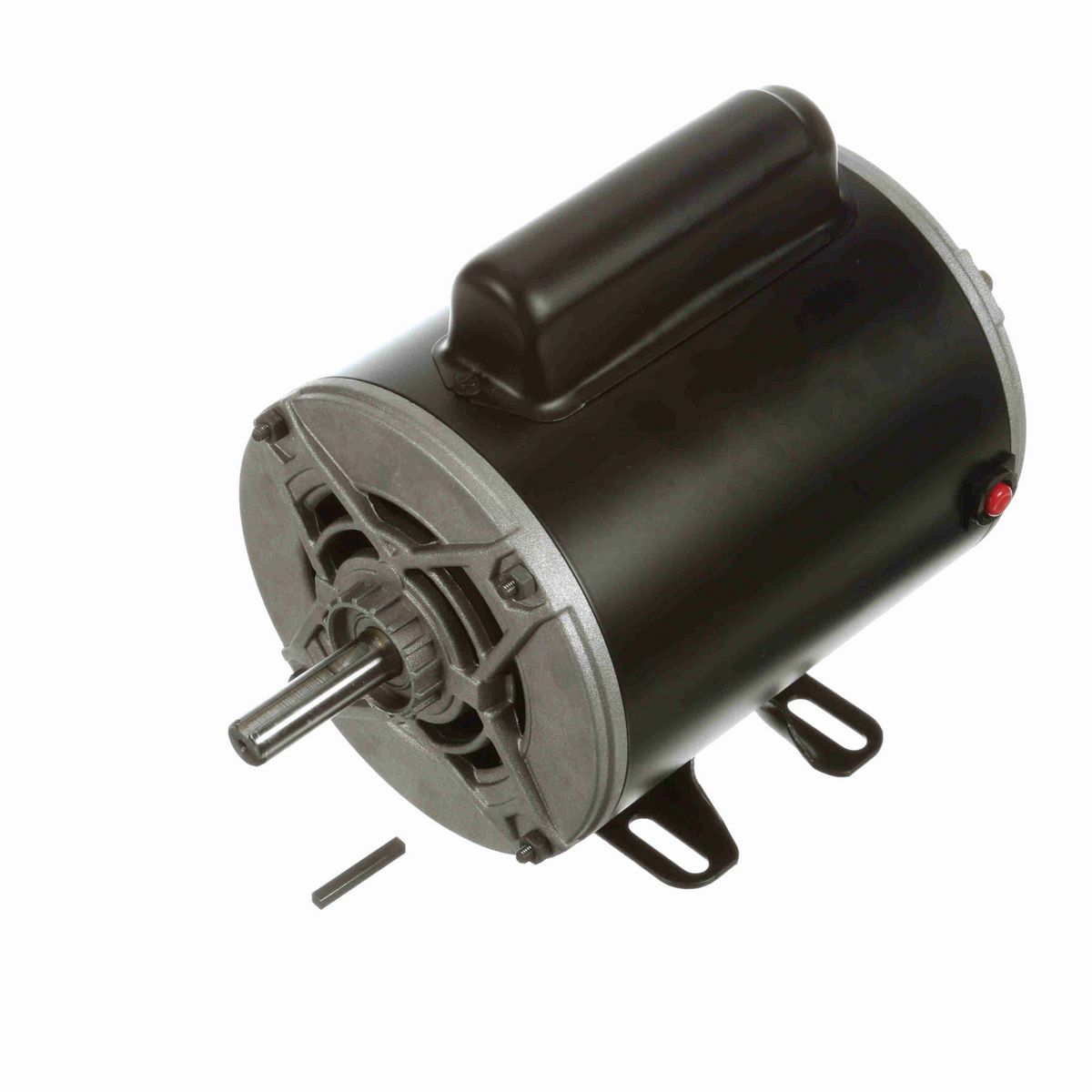

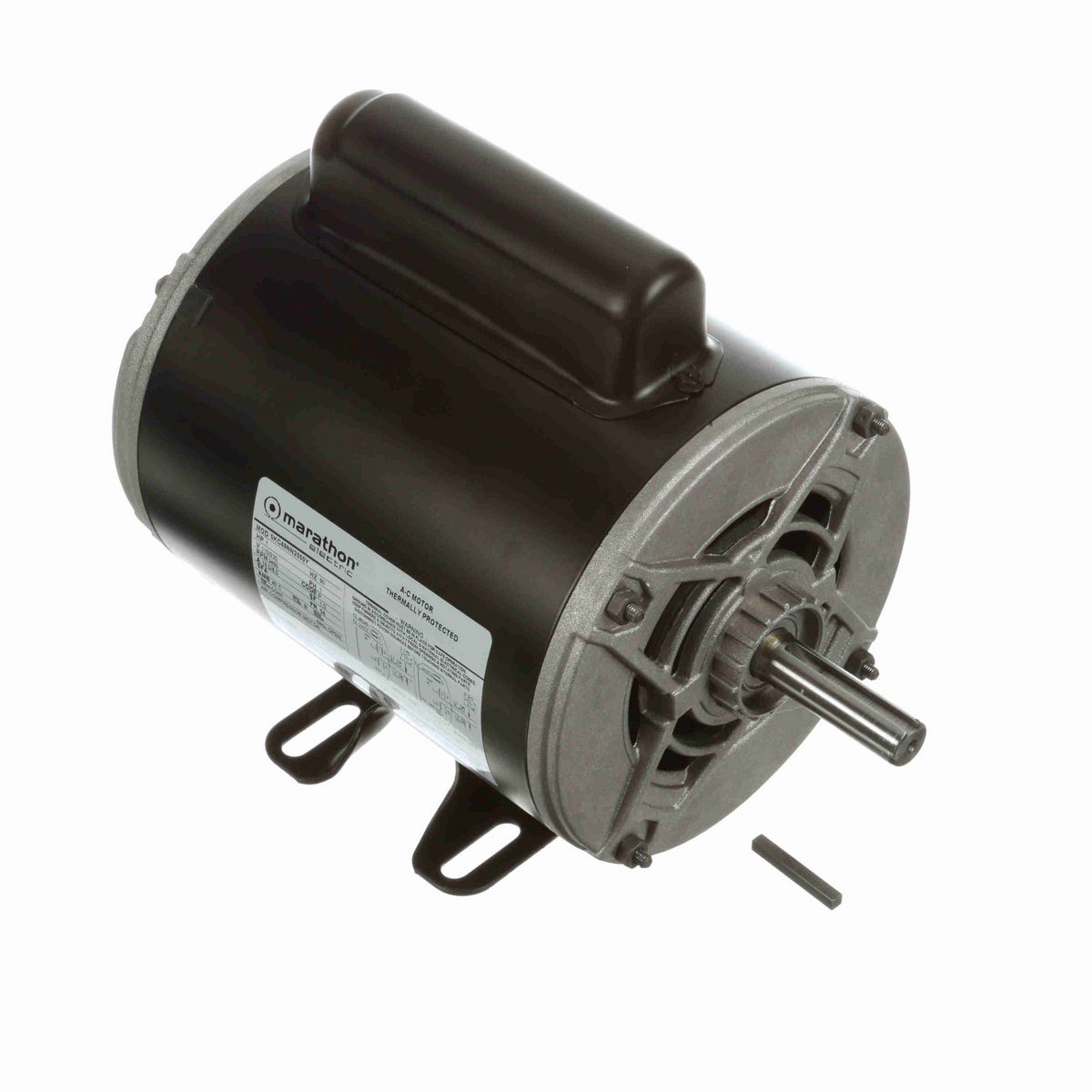

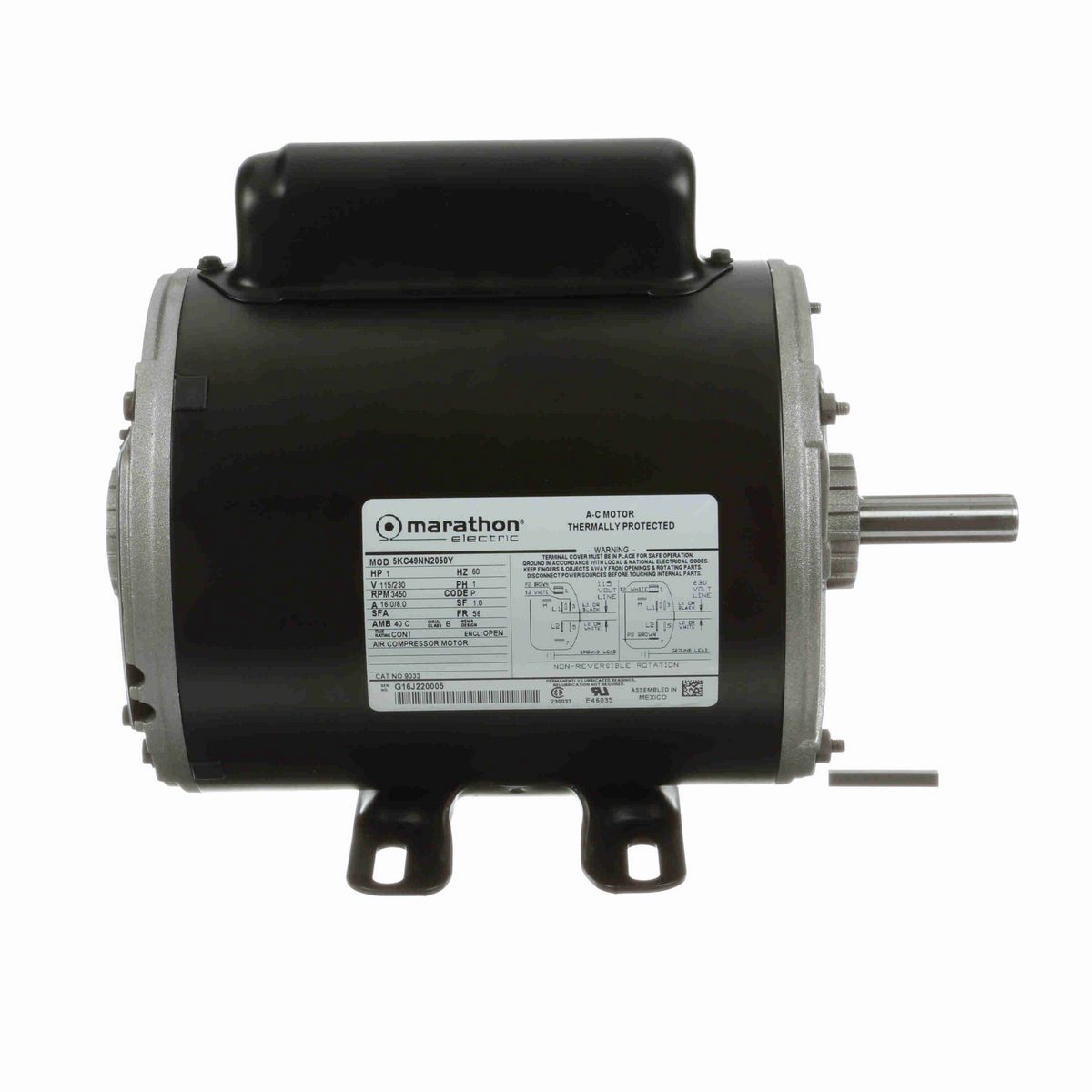

• Capacitor start induction run design
• High starting and breakdown torque
• Heavy gauge steel frame and base
• Continuous duty at nameplate ratings
• Will become build-up item when current stock is gone
• As of 4/30/24 this product is now listed as LEESON® brand due to <a href="https://investors.regalrexnord.com/investors/ir-news/press-release-details/2024/Regal-Rexnord-Corporation-Closes-The-Sale-Of-Its-Industrial-Motors--Generators-Business-To-WEG/default.aspx">the divestiture of the Industrial Business.</a>

Nameplate Specifications

Phase	1
Output HP	1 Hp
Output KW	0.75 kW
Voltage	115/230 V
Speed	3450 rpm
Service Factor	1
Frame	56
Enclosure	Open Enclosed
Thermal Protection	Manual
Efficiency	69.7 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	16.0,8.0 A
Power Factor	0
Duty	Continuous
Insulation Class	B
KVA Code	P
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Yes
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	SM
Poles	2
Rotation	Clockwise
Mounting	Rigid Base
Motor Orientation	ANY
Drive End Bearing	BALL
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Overall Length	11.14 in
Frame Length	6.92 in
Shaft Diameter	0.630 in
Shaft Extension	1.88 in

General Specifications

UPC	722856048103
Weight	28.50 LB
Packaged Length	15.44 IN
Packaged Width	10.19 IN
Packaged Height	9.50 IN
HTC	8501.40.6040
Country of Origin	Mexico
