• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power specifications.
• Class B or F Insulation protects motor for a maximum temperature rating.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• LEESON® motors. Motors and solutions at our core™

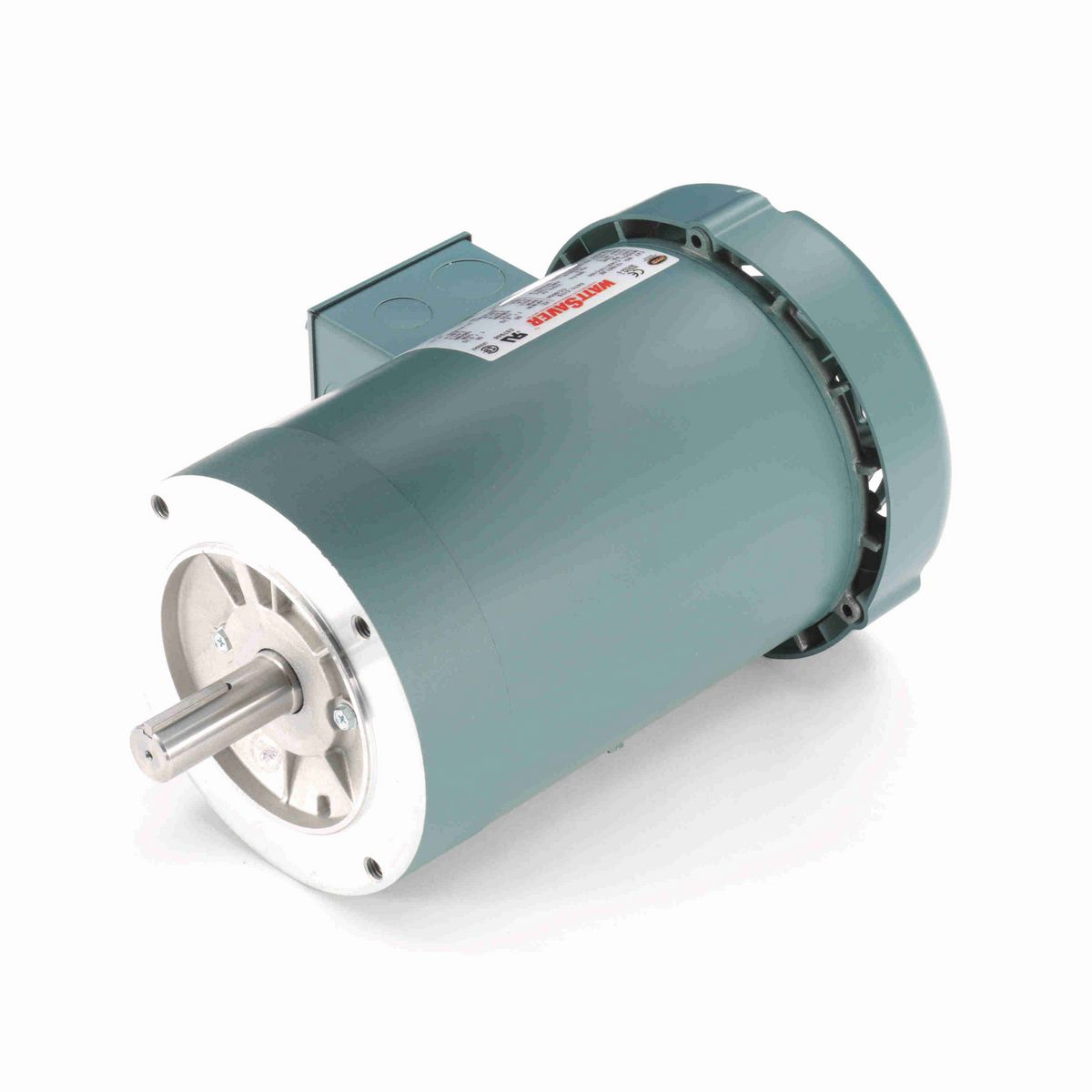

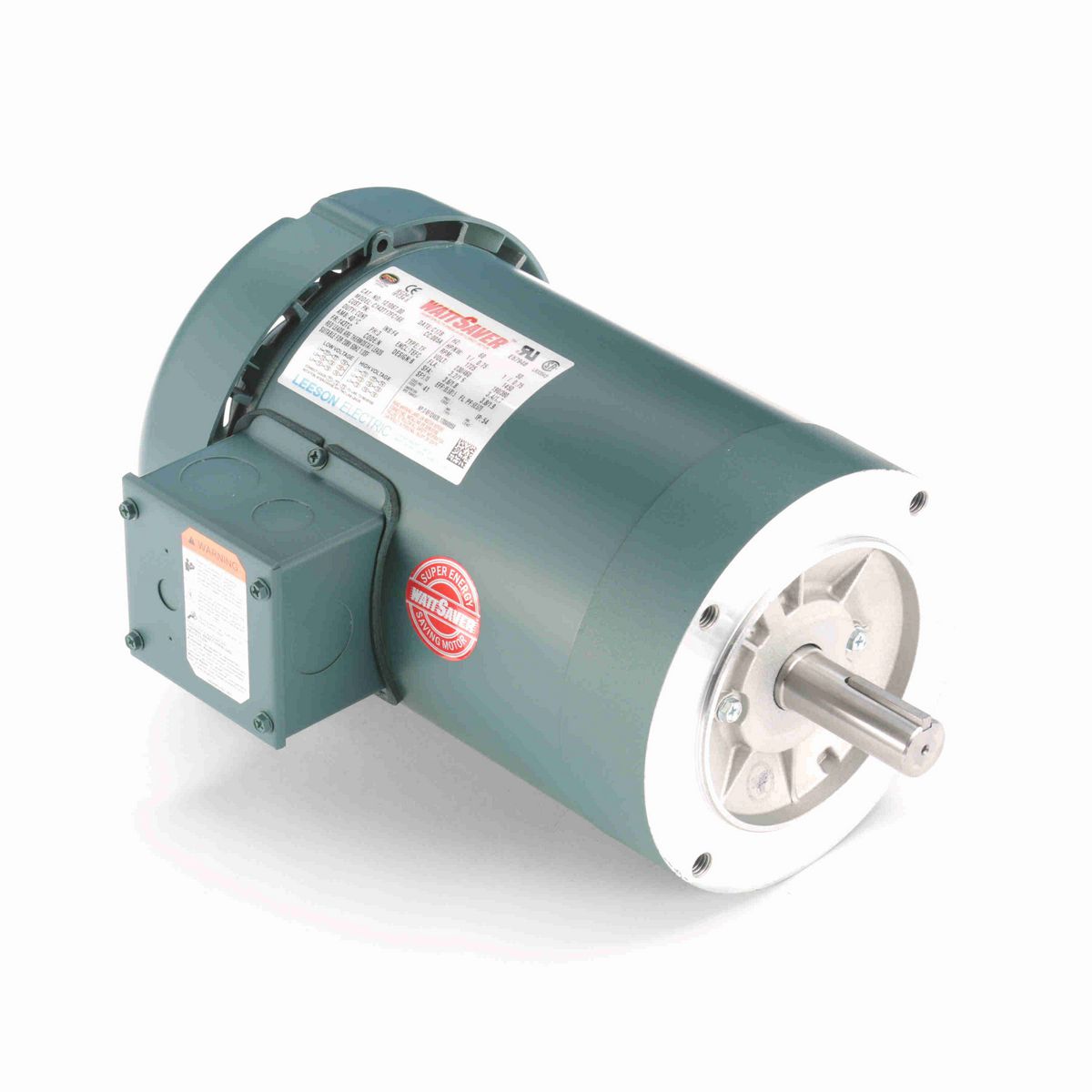

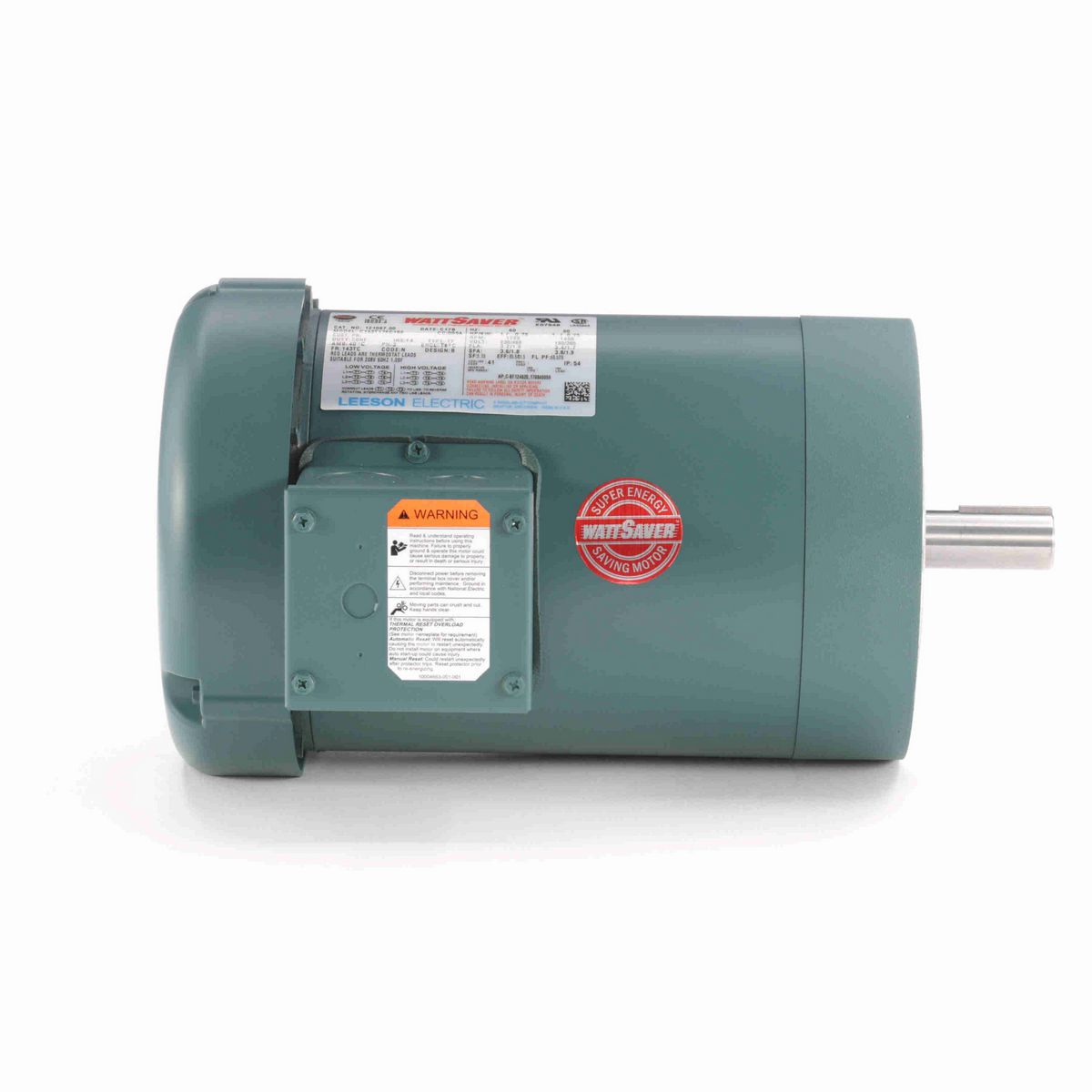

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	1 & 1 Hp
Output KW	0.75 & 0.75 kW
Voltage	230/460 & 190/380 V
Speed	1725 & 1450 rpm
Service Factor	1.15 & 1.15
Frame	143TC
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Thermostat
Efficiency	85.5 & 81.5 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	3.2/1.6 & 3.4/1.7 A
Power Factor	68.5
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	N
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	54
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	4
Rotation	Reversible
Resistance Main	12.96 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	T
Overall Length	12.92 in
Frame Length	7.00 in
Shaft Diameter	0.875 in
Shaft Extension	2.25 in
Assembly/Box Mounting	F1 ONLY
Inverter Load	CONSTANT 10:1

General Specifications

UPC	691720016664
Weight	39.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
