• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power. specifications
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated sealed bearings extend the lifetime of the motor.
• Capacitor start design optimizes motor torque and efficiency performance.
• LEESON® motors. Motors and solutions at our core™

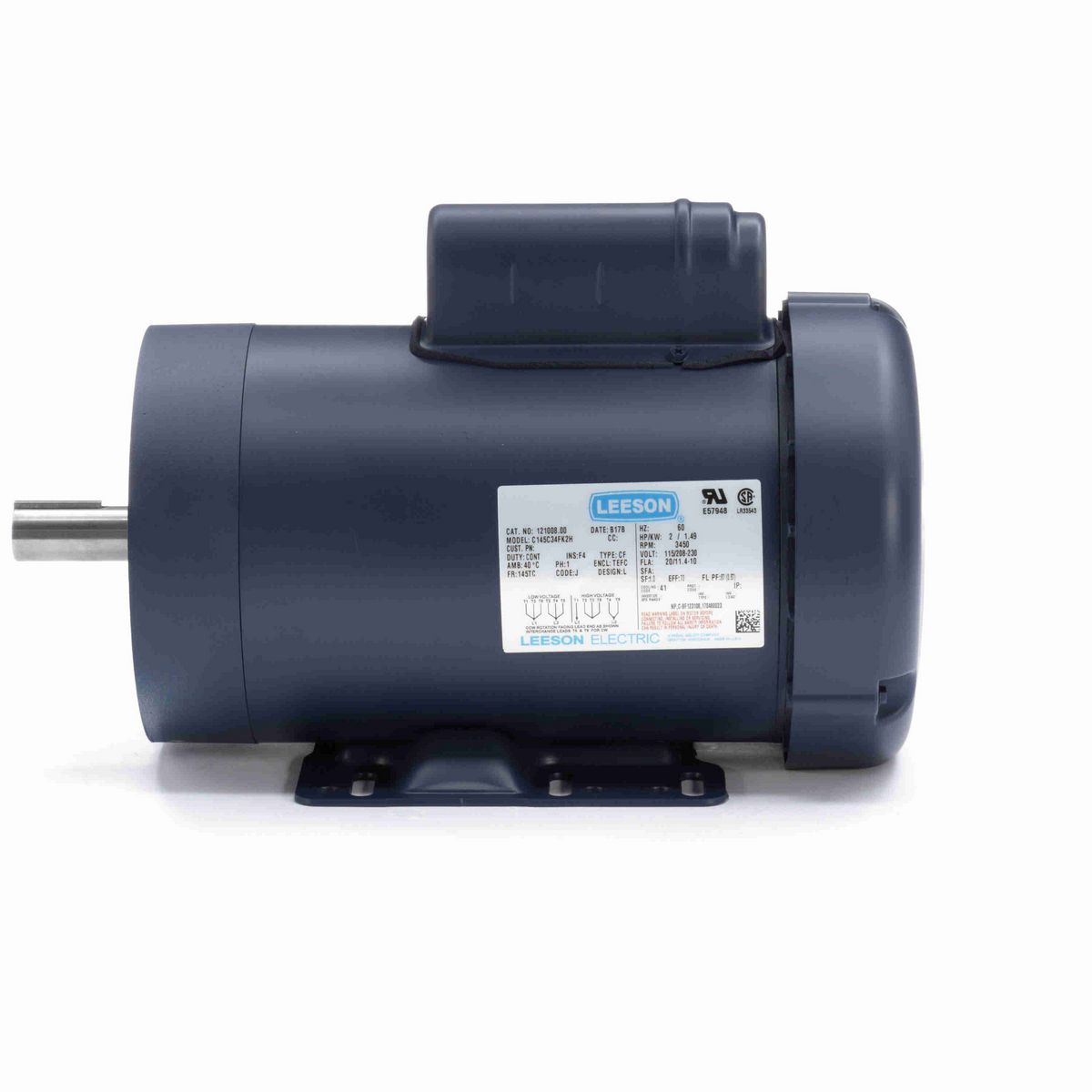

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	2 Hp
Output KW	1.5 kW
Voltage	115/230 V
Speed	3450 rpm
Service Factor	1.0
Frame	145TC
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	73 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	20.0/10.0 A
Power Factor	87
Duty	Continuous
Insulation Class	F
Design Code	L
KVA Code	J
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	2
Rotation	Selective Counterclockwise
Resistance Main	.92 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	T
Overall Length	13.93 in
Frame Length	8.00 in
Shaft Diameter	0.875 in
Shaft Extension	2.25 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720016558
Weight	46.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
