• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power specifications.
• Class B or F Insulation protects motor for a maximum temperature rating.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• LEESON® motors. Motors and solutions at our core™

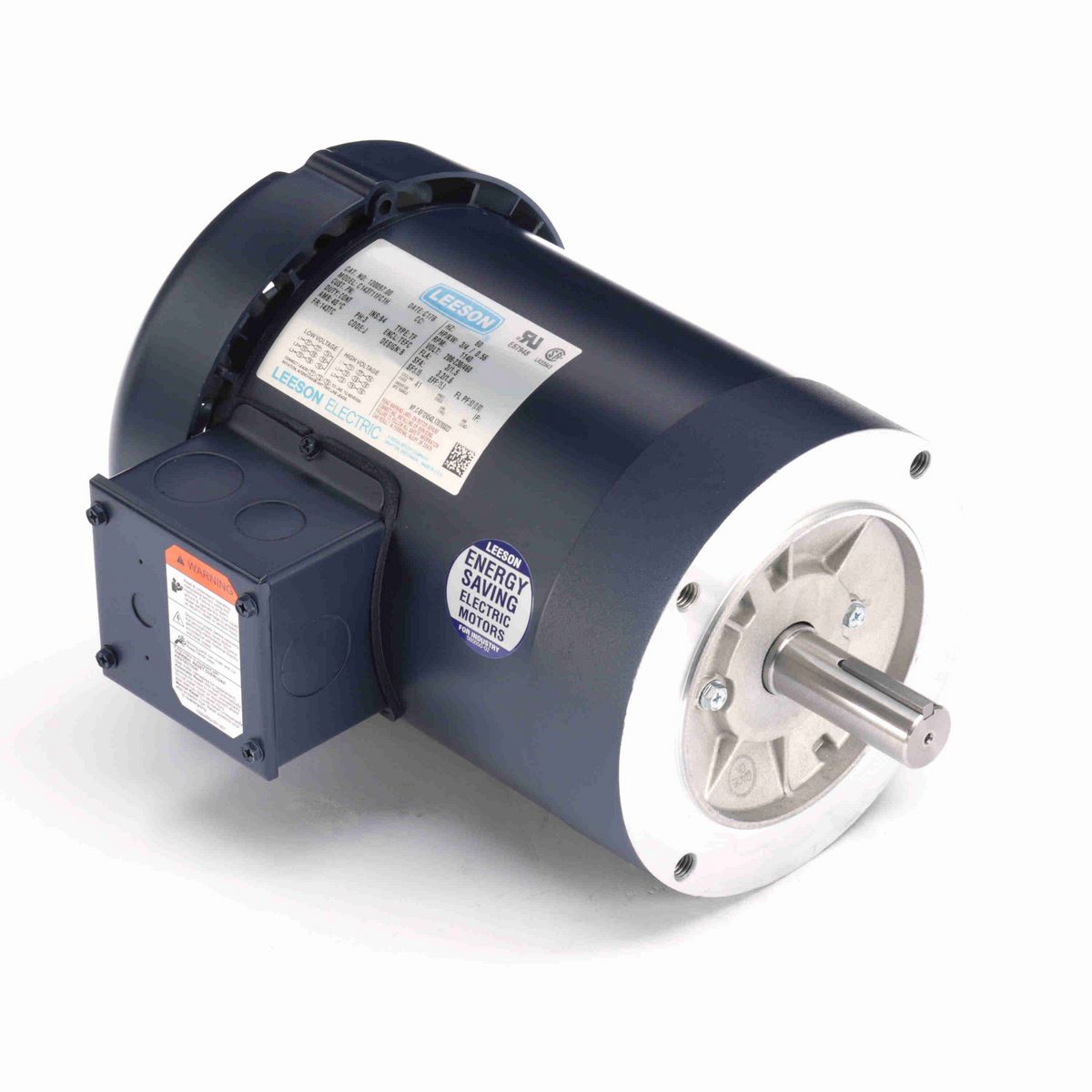

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	230/460 V
Speed	1140 rpm
Service Factor	1.15
Frame	143TC
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	75.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.0/1.5 A
Power Factor	62
Duty	Continuous
Insulation Class	B
Design Code	B
KVA Code	J
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Resistance Main	6.44 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	T
Overall Length	11.92 in
Frame Length	6.00 in
Shaft Diameter	0.875 in
Shaft Extension	2.25 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720015032
Weight	36.00 LB
Packaged Length	14.44 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
