• Choice of mechanical or solid state starting switch
• Mechanical switch has over-speed protection
• Shaft is 5/8” Dia. X 1.97” long with 3/16” keyway

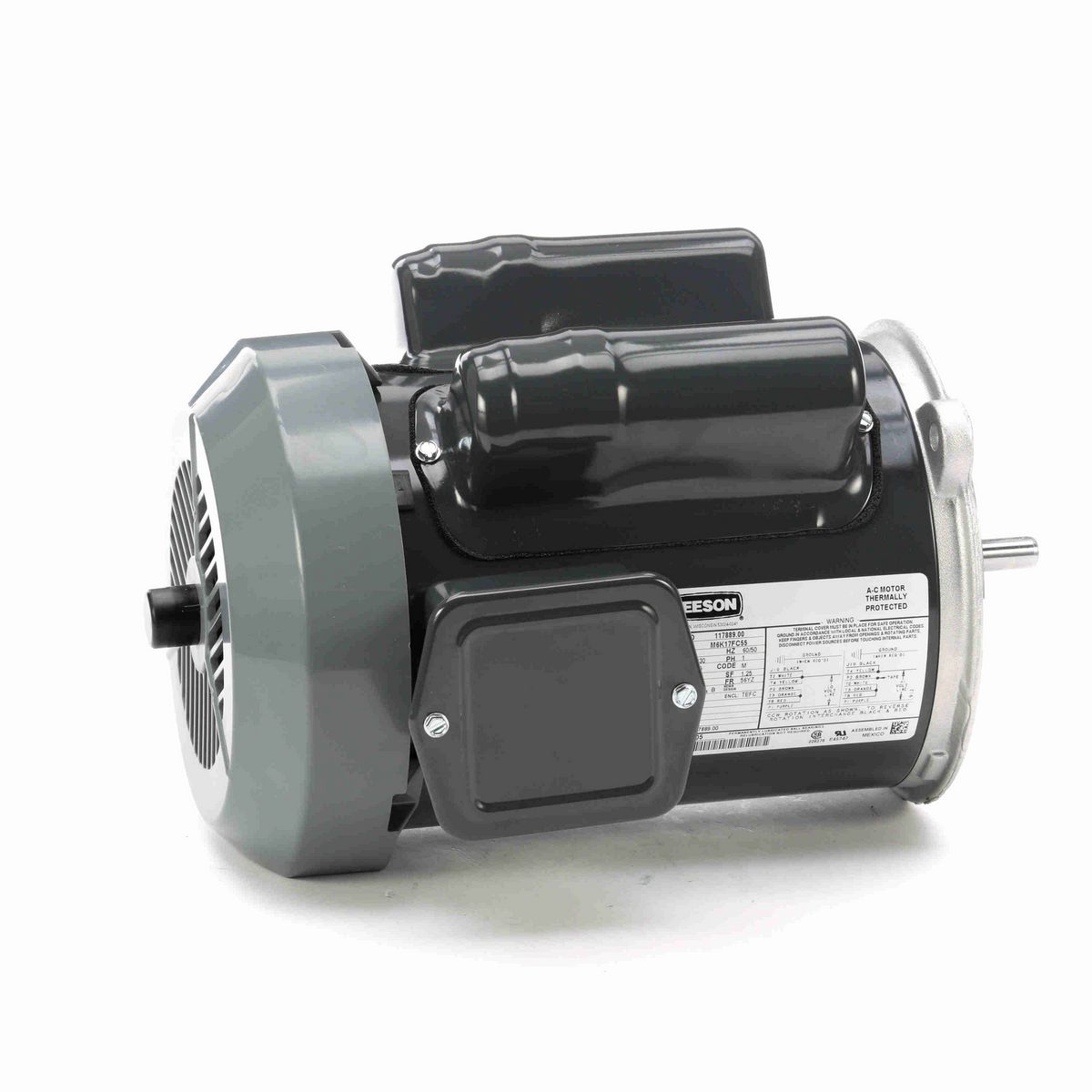

• Stub shaft on ODE for manual jogging

Nameplate Specifications

Phase	1
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	115/208-230 V
Speed	1725 rpm
Service Factor	1.25
Frame	56YZ
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Manual
Efficiency	72 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	8.4/4.5-4.2 A
Power Factor	78.5
Duty	Continuous
Insulation Class	B
KVA Code	M
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Capacitor Run
Starting Method	SM
Poles	4
Rotation	Counterclockwise/Clockwise
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Overall Length	13.13 in
Shaft Extension	.500 X 1.81 - 1.50 MIN LG CROSS MILLED FLAT in

General Specifications

UPC	691720004104
Weight	28.00 LB
Packaged Length	15.44 IN
Packaged Width	10.19 IN
Packaged Height	9.50 IN
Country of Origin	Mexico
