• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Double-shielded bearings extend the service life of the motor.
• Single and three phase, TEFC, TEAO, and ODP construction.
• Overload protection prevents motor from overheating.
• LEESON® motors. Motors and solutions at our core™

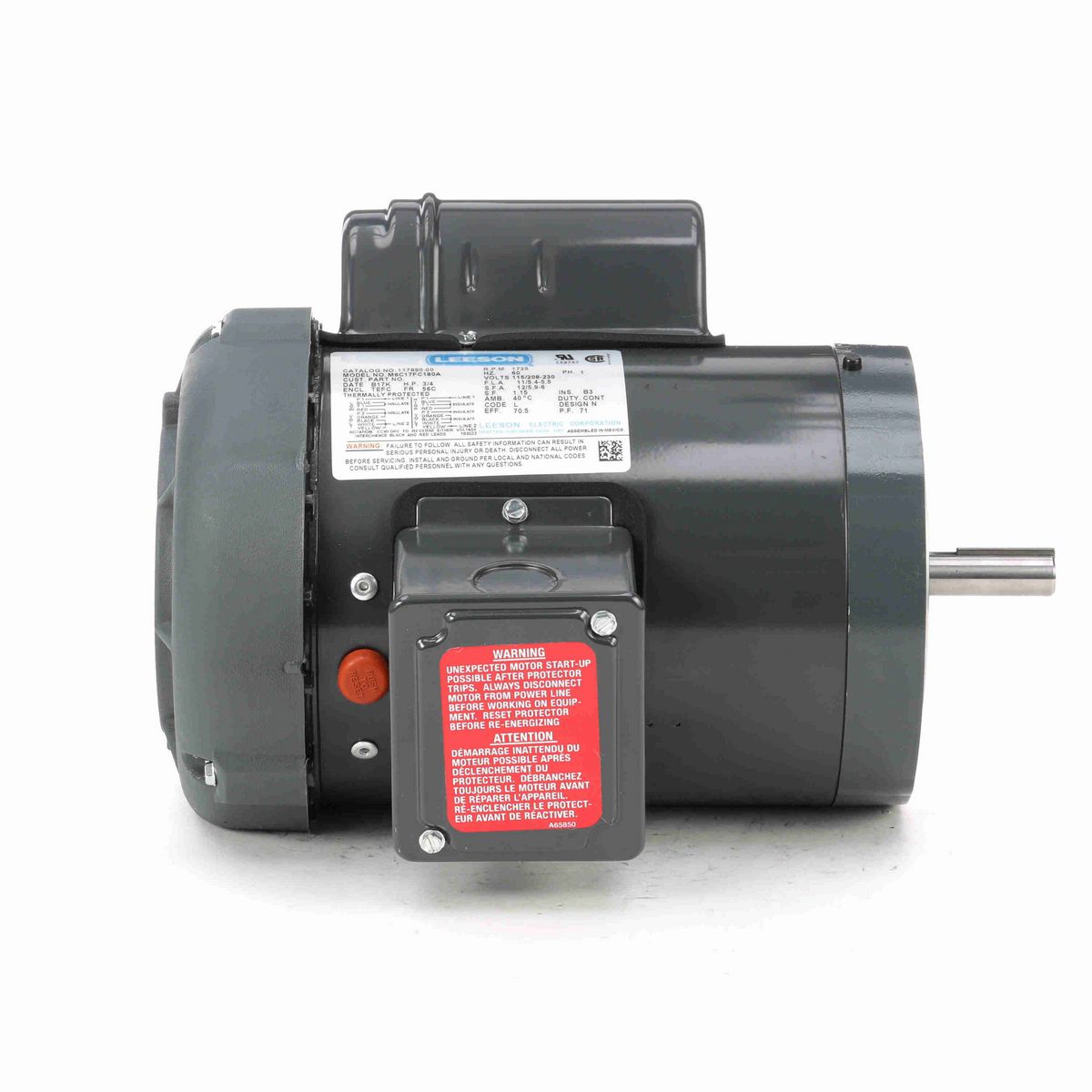

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.15
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Manual
Efficiency	70.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	11.0/5.5 A
Power Factor	71
Duty	Continuous
Insulation Class	B
Design Code	N
KVA Code	L
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	0 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	12.32 in
Frame Length	7.06 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1/F2 CAPABLE

General Specifications

UPC	691720003770
Weight	29.00 LB
Packaged Length	15.50 IN
Packaged Width	12.25 IN
Packaged Height	9.38 IN
Country of Origin	Mexico
