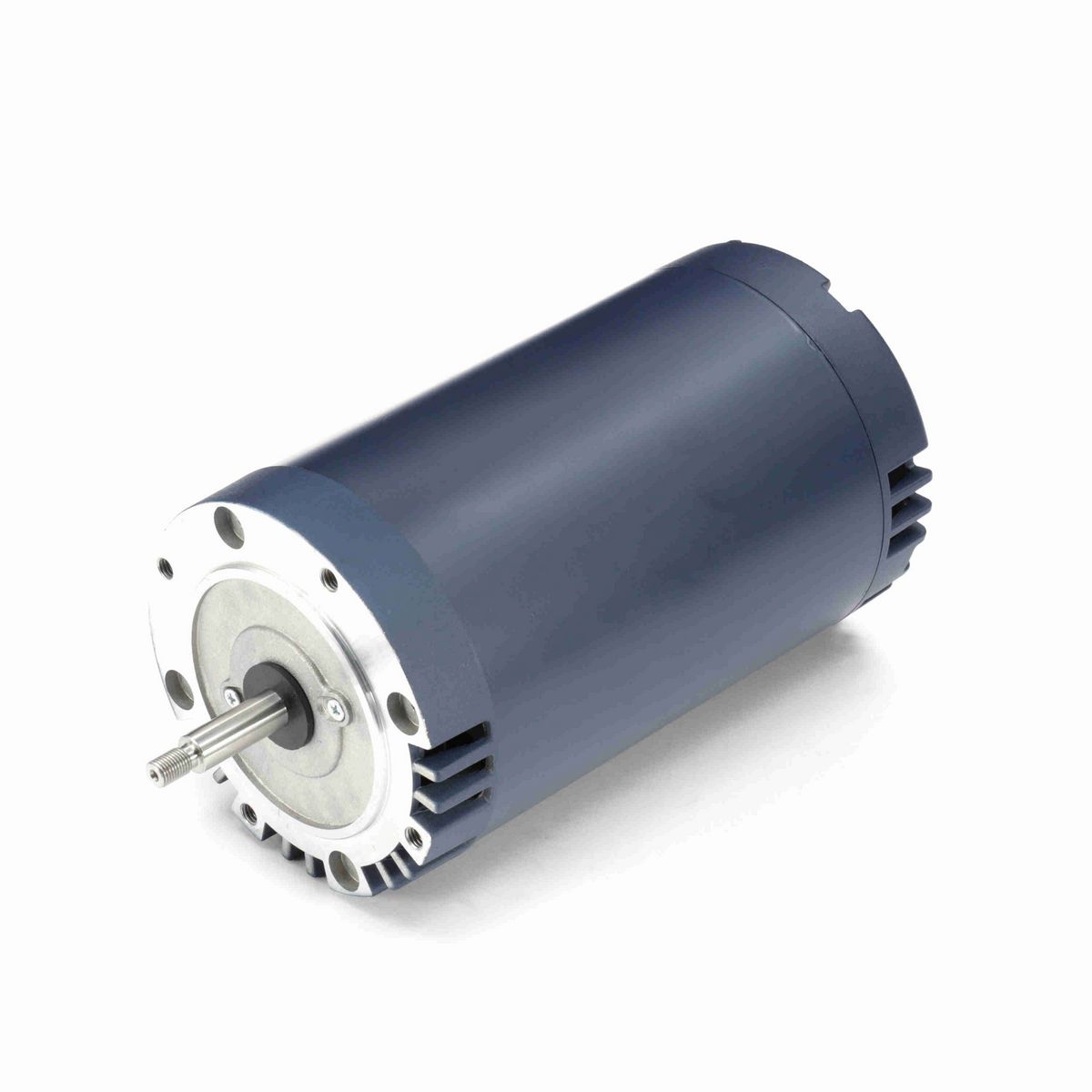

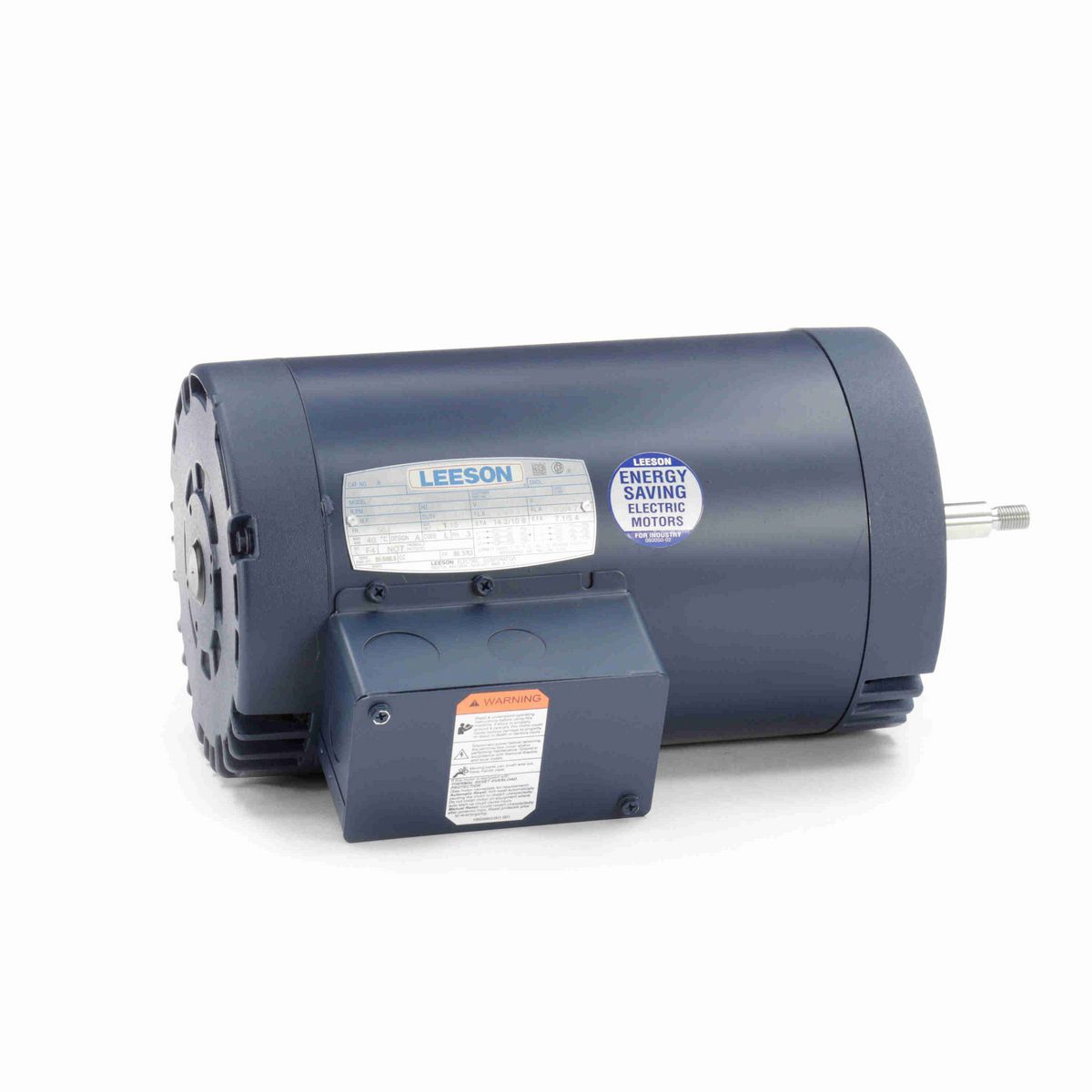

• NEMA 56 C face mounting flange
• Threaded shafts made of 303 grade stainless steel
• Reversible rotation
• Double sealed bearings on shaft end
• Locked shaft end bearings

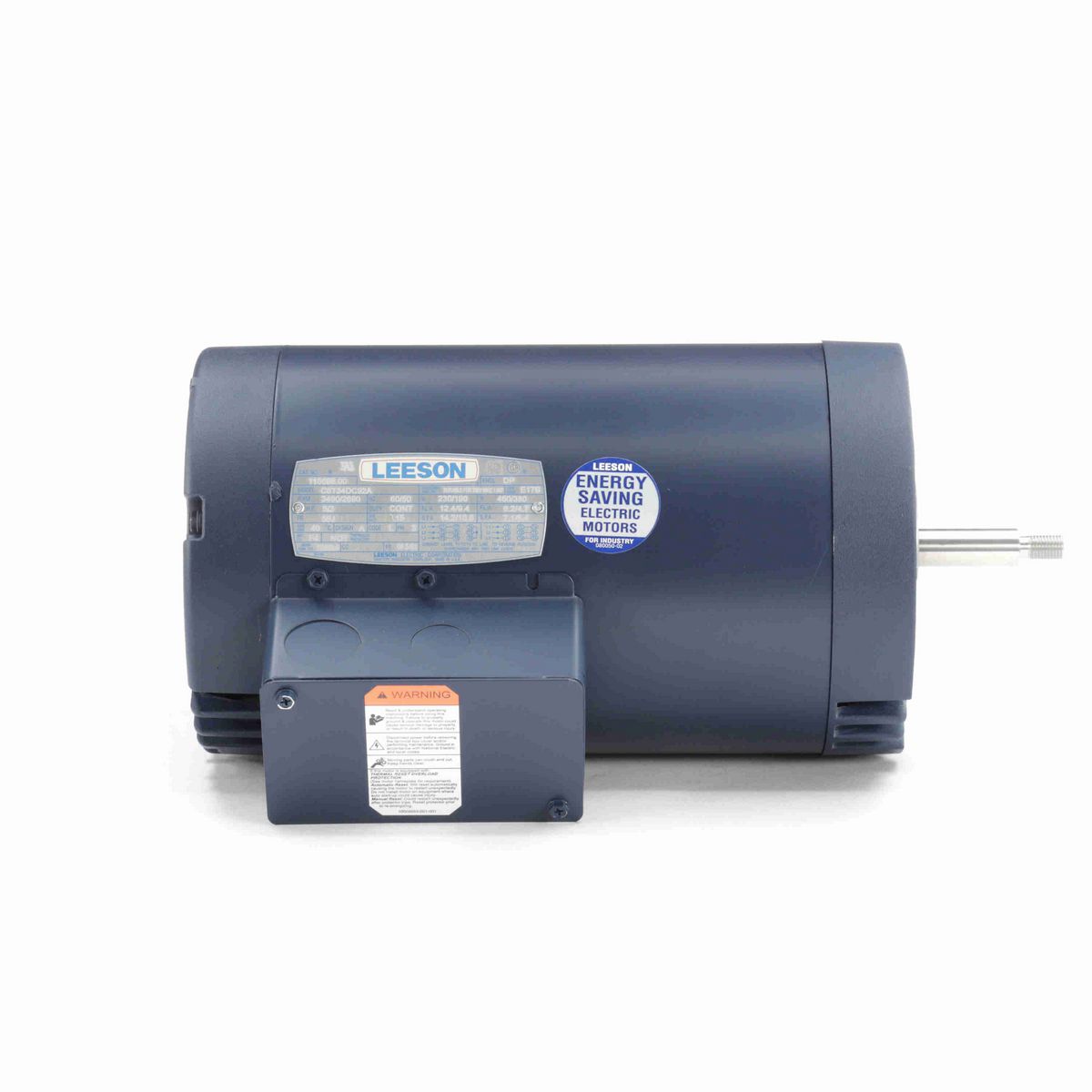

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	5 & 3 Hp
Output KW	3.7 & 2.2 kW
Voltage	230/460 & 190/380 V
Speed	3490 & 2890 rpm
Service Factor	1.15 & 1.15
Frame	56J
Enclosure	Drip Proof
Thermal Protection	No Protection
Efficiency	85.5 & 86.5 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	12.4/6.2 & 9.4/4.7 A
Power Factor	86.5
Duty	Continuous
Insulation Class	F
Design Code	A
KVA Code	L
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	22
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Across The Line
Poles	2
Rotation	Reversible
Resistance Main	3.1 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	J
Overall Length	13.68 in
Frame Length	8.50 in
Shaft Diameter	0.625 in
Shaft Extension	2.44 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720346570
Weight	52.00 LB
Packaged Length	19.50 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
