• UL recognized component listing and CSA certification ensures the product is safe for use.
• High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
• Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
• Heavy-duty construction ensures motor durability.
• LEESON® motors. Motors and solutions at our core™

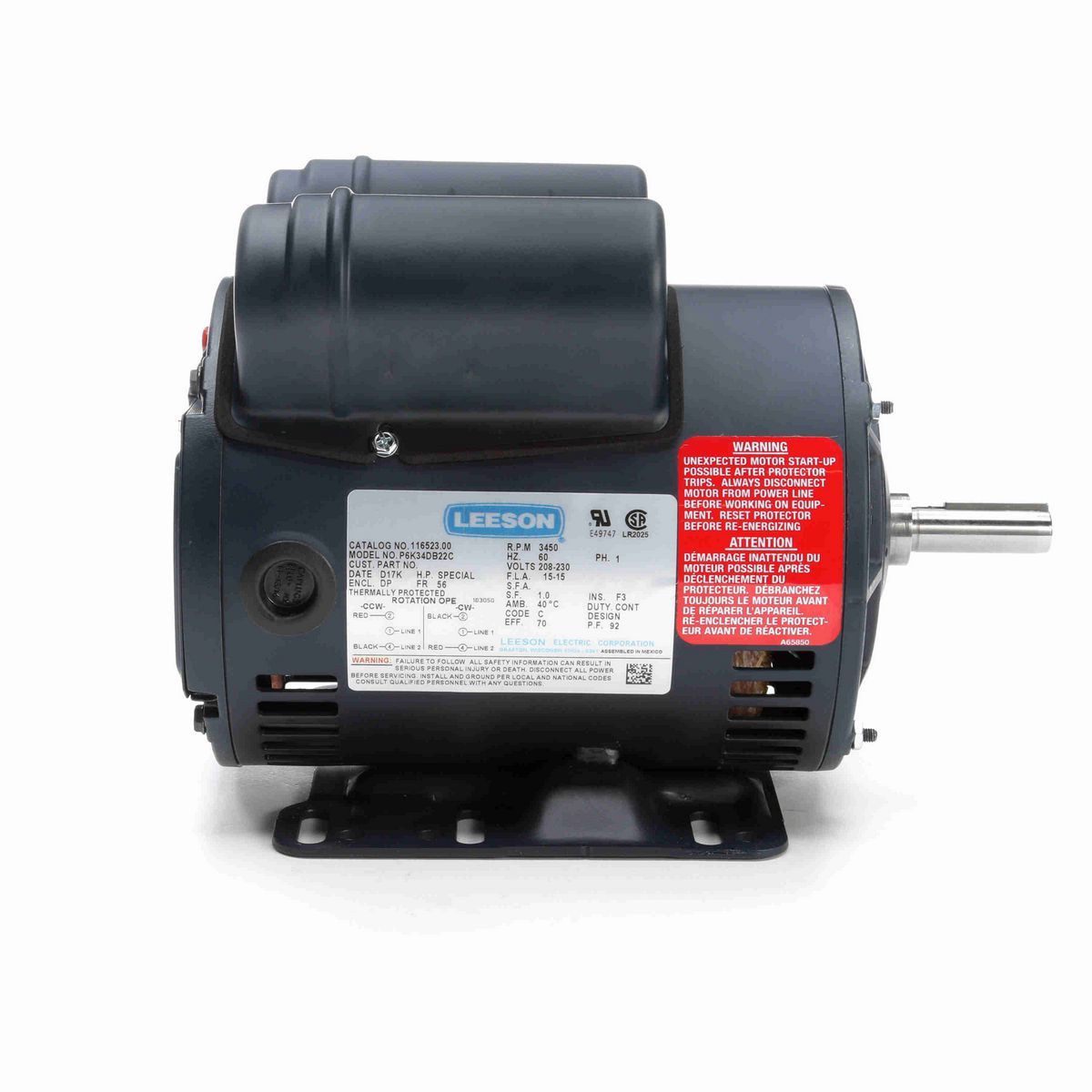

• Operational at 208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	5 Hp
Output KW	5.3 kW
Voltage	230 V
Speed	3450 rpm
Service Factor	1.0
Frame	56
Enclosure	Drip Proof
Thermal Protection	Manual
Efficiency	70 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	15.0 A
Power Factor	92
Duty	Continuous
Insulation Class	F
Design Code	NO DESIGN CODE
KVA Code	C
Drive End Bearing Size	205
Opp Drive End Bearing Size	203
UL	Recognized
CSA	Y
CE	N
IP Code	22
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Capacitor Run
Starting Method	Across The Line
Poles	2
Rotation	Selective Counterclockwise
Resistance Main	0 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	11.44 in
Frame Length	7.56 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720349847
Weight	30.00 LB
Packaged Length	19.31 IN
Packaged Width	11.19 IN
Packaged Height	9.75 IN
Country of Origin	Mexico
