• Replacements for SURGE® milk pumps
• WASHGUARD® motor features for high pressure washdown applications
• Epoxy painted and stainless ratings available for corrosion protection
• Solid state encapsulated starting switch on capacitor start motors
• Three phase motor is inverter rated

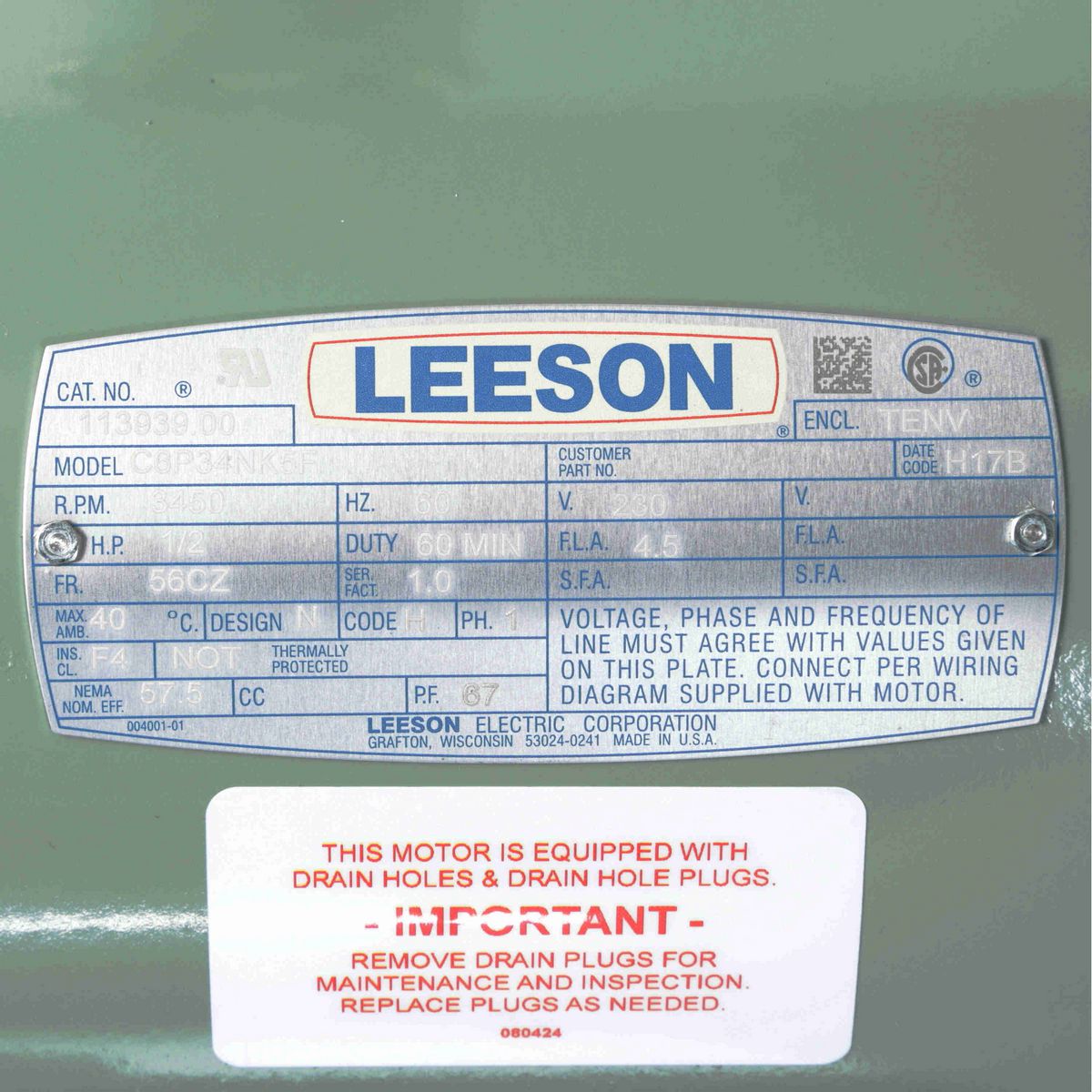

Nameplate Specifications

Phase	1
Output HP	0.50 Hp
Output KW	0.37 kW
Voltage	230 V
Speed	3450 rpm
Service Factor	1
Frame	56CZ
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	57.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.5 A
Power Factor	67
Duty	60 Minute
Insulation Class	F
Design Code	N
KVA Code	H
Drive End Bearing Size	6205
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	2
Rotation	Selective Counterclockwise
Resistance Main	2.455 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Overall Length	13.48 in
Frame Length	7.00 in
Shaft Diameter	0.500 in
Shaft Extension	3.11 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720013038
Weight	39.00 LB
Packaged Length	14.44 IN
Packaged Width	7.94 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
