• High efficiency energy saving designs
• Centrifugal switch designed for 50 Hz service
• High torque
• LEESON® motors. Motors and solutions at our core™

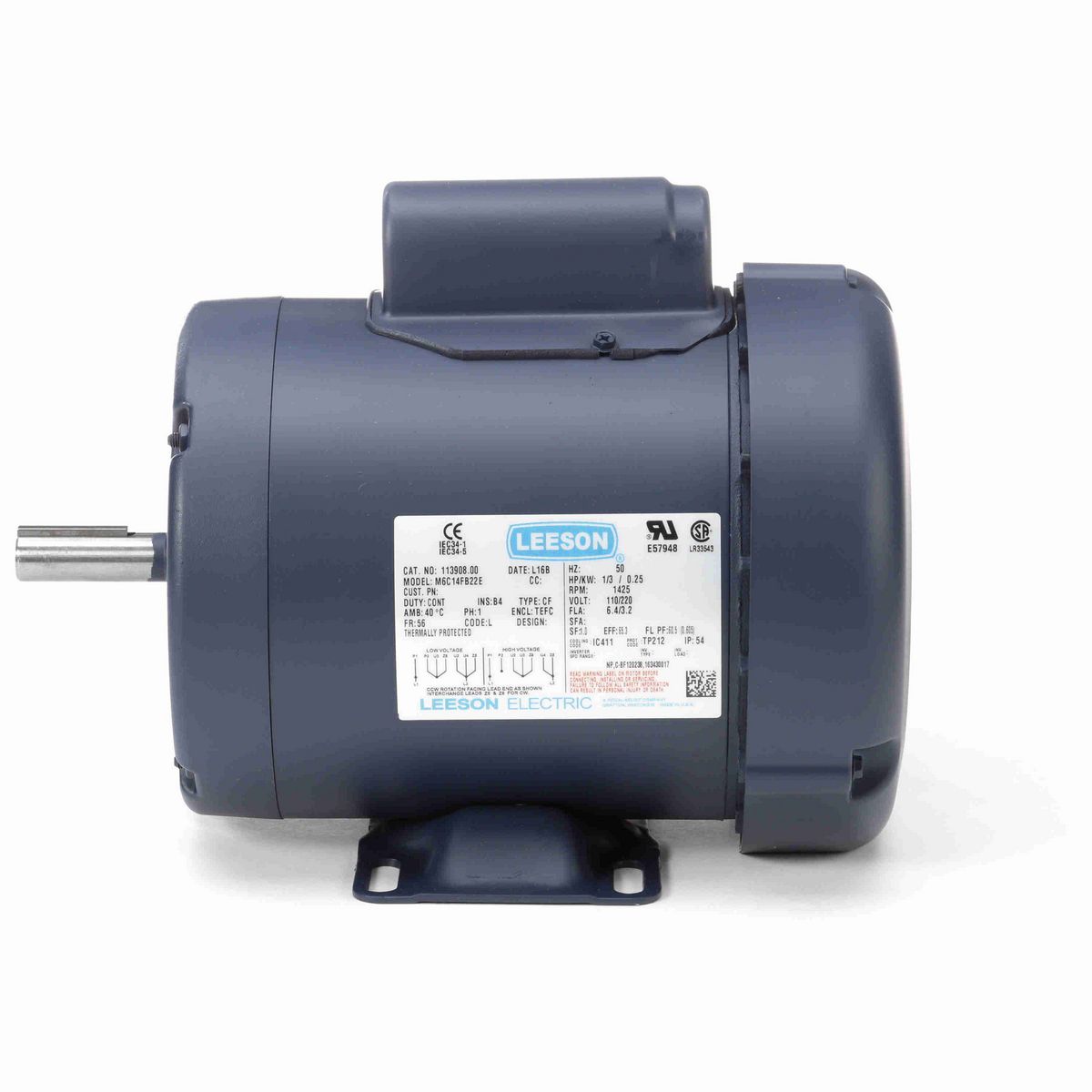

Nameplate Specifications

Phase	1
Output HP	0.33 Hp
Output KW	0.25 kW
Voltage	110/220 V
Speed	1425 rpm
Service Factor	1
Frame	56
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Manual
Efficiency	65.3 %
Ambient Temperature	40 °C
Frequency	50 Hz
Current	6.4/3.2 A
Power Factor	60.5
Duty	Continuous
Insulation Class	B
Design Code	NO DESIGN CODE
KVA Code	L
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	54
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	0 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	10.98 in
Frame Length	5.50 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720012680
Weight	23.00 LB
Packaged Length	14.44 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
