• NEMA 56 C face mounting flange
• Keyed shafts made of carbon steel
• Dual rotation - Key shaft motors only
• Quiet flow-through ventilation system
• Double sealed bearings on shaft end
• Terminal board with quick connects
• Locked shaft-end bearings
• UL recognized and CSA certified

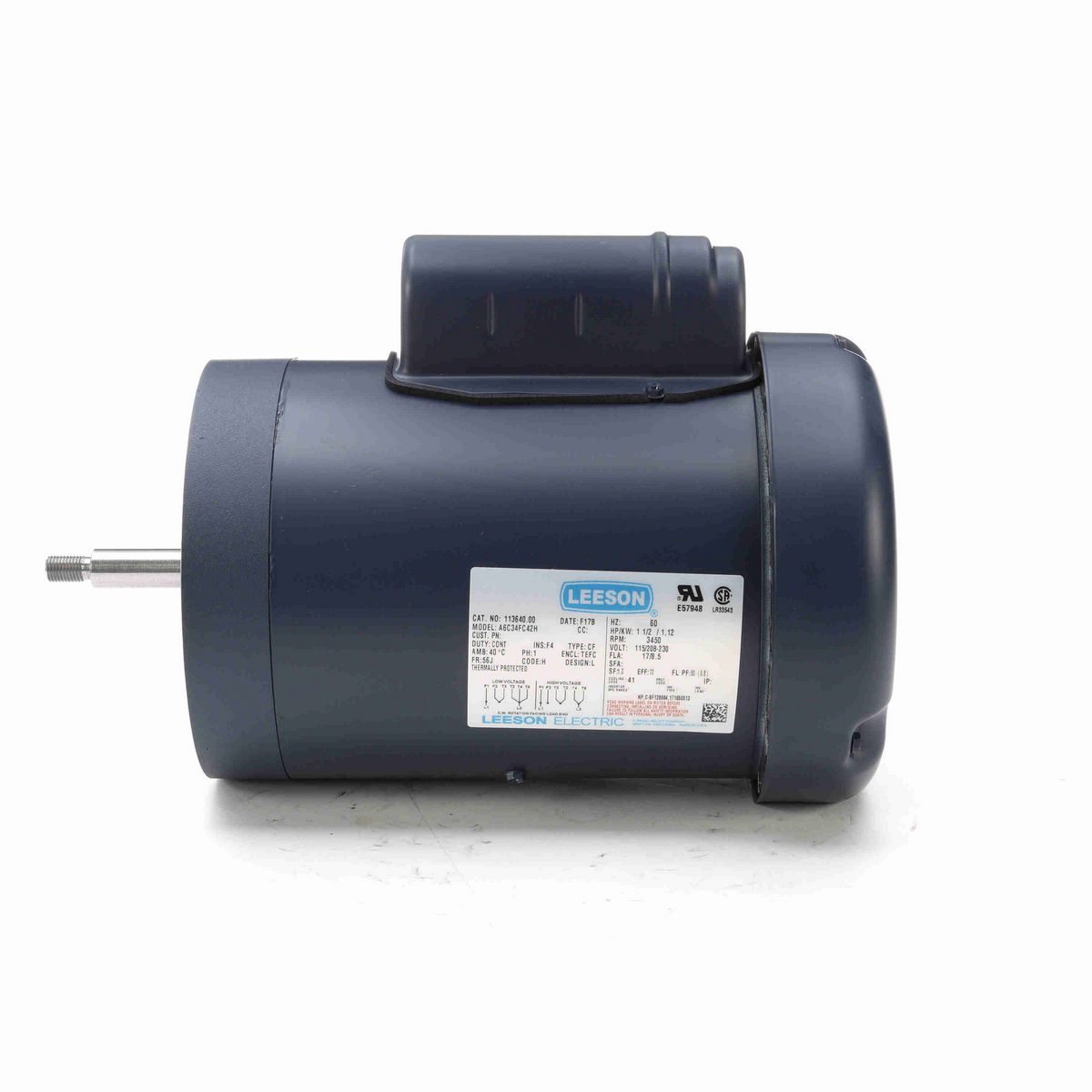

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	1.50 Hp
Output KW	1.1 kW
Voltage	115/230 V
Speed	3450 rpm
Service Factor	1.00
Frame	56J
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Automatic
Efficiency	72 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	17.0/8.5 A
Power Factor	80
Duty	Continuous
Insulation Class	F
Design Code	L
KVA Code	H
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	2
Rotation	Fixed Clockwise
Resistance Main	1.32 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	J
Overall Length	12.86 in
Frame Length	7.00 in
Shaft Diameter	0.625 in
Shaft Extension	2.44 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720012307
Weight	33.00 LB
Packaged Length	14.44 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
