• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power. specifications
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated sealed bearings extend the lifetime of the motor.
• Capacitor start design optimizes motor torque and efficiency performance.
• LEESON® motors. Motors and solutions at our core™

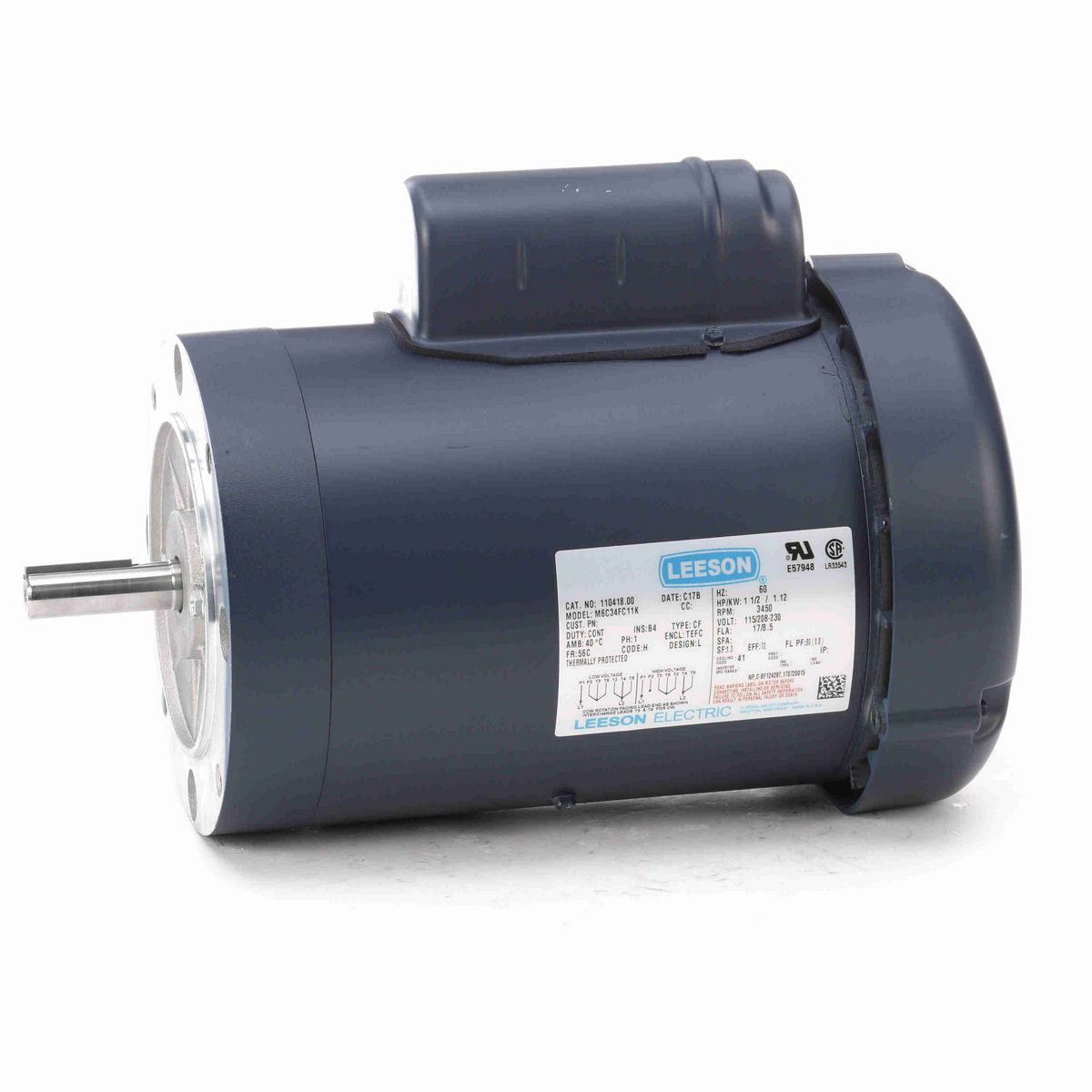

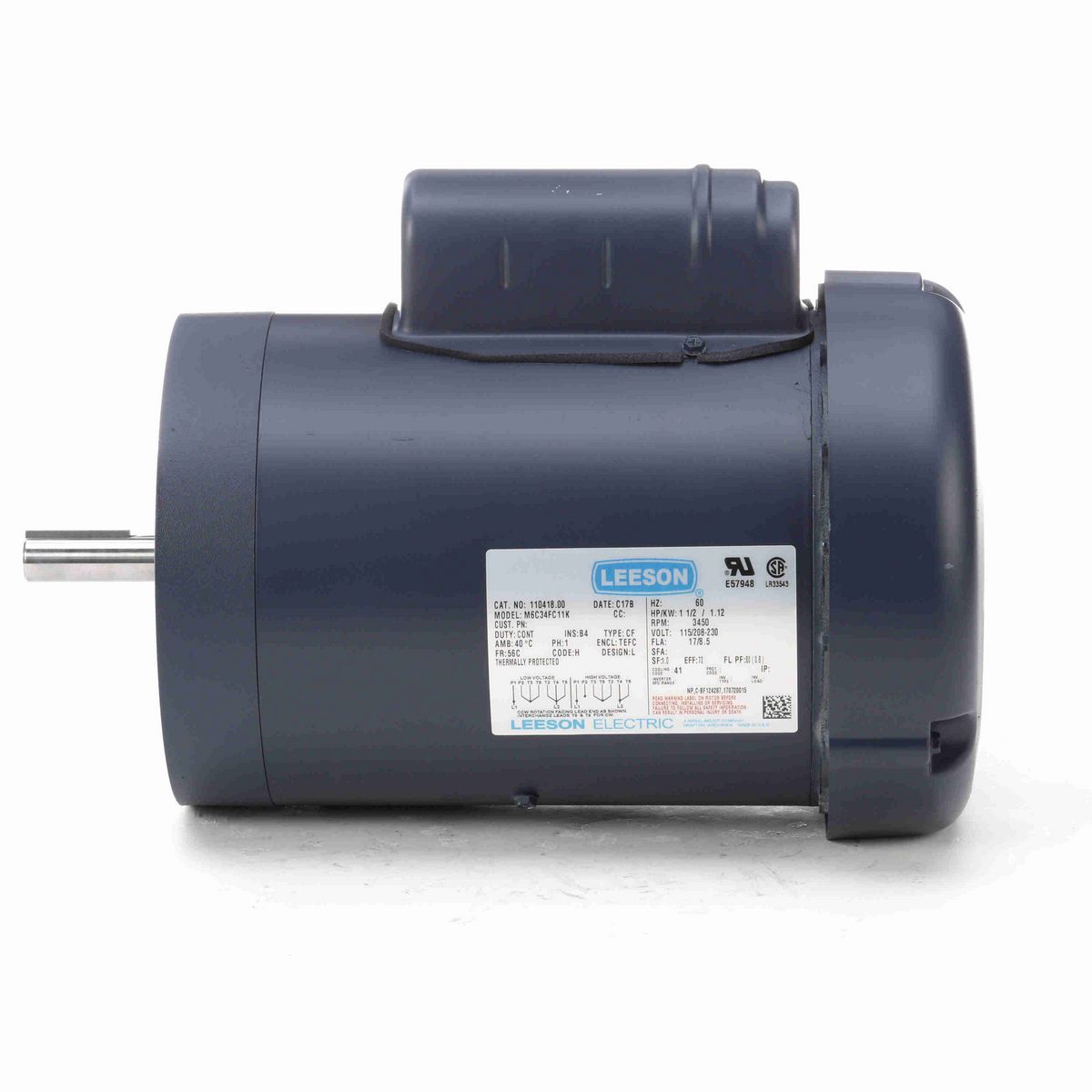

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	1.50 Hp
Output KW	1.1 kW
Voltage	115/230 V
Speed	3450 rpm
Service Factor	1.0
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Manual
Efficiency	72 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	17.0/8.5 A
Power Factor	80
Duty	Continuous
Insulation Class	B
Design Code	L
KVA Code	H
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	2
Rotation	Selective Counterclockwise
Resistance Main	1.32 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	12.49 in
Frame Length	7.00 in
Shaft Diameter	0.625 in
Shaft Extension	2.06 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720008768
Weight	34.00 LB
Packaged Length	14.44 IN
Packaged Width	10.44 IN
Packaged Height	10.88 IN
Country of Origin	United States of America
