• Split phase design motors
• Belt driven or fan-on-shaft applications
• Resilient base for quiet operation
• Automatic overload protection
• Built-in terminal panel for easy connection
• LEESON® motors. Motors and solutions at our core™

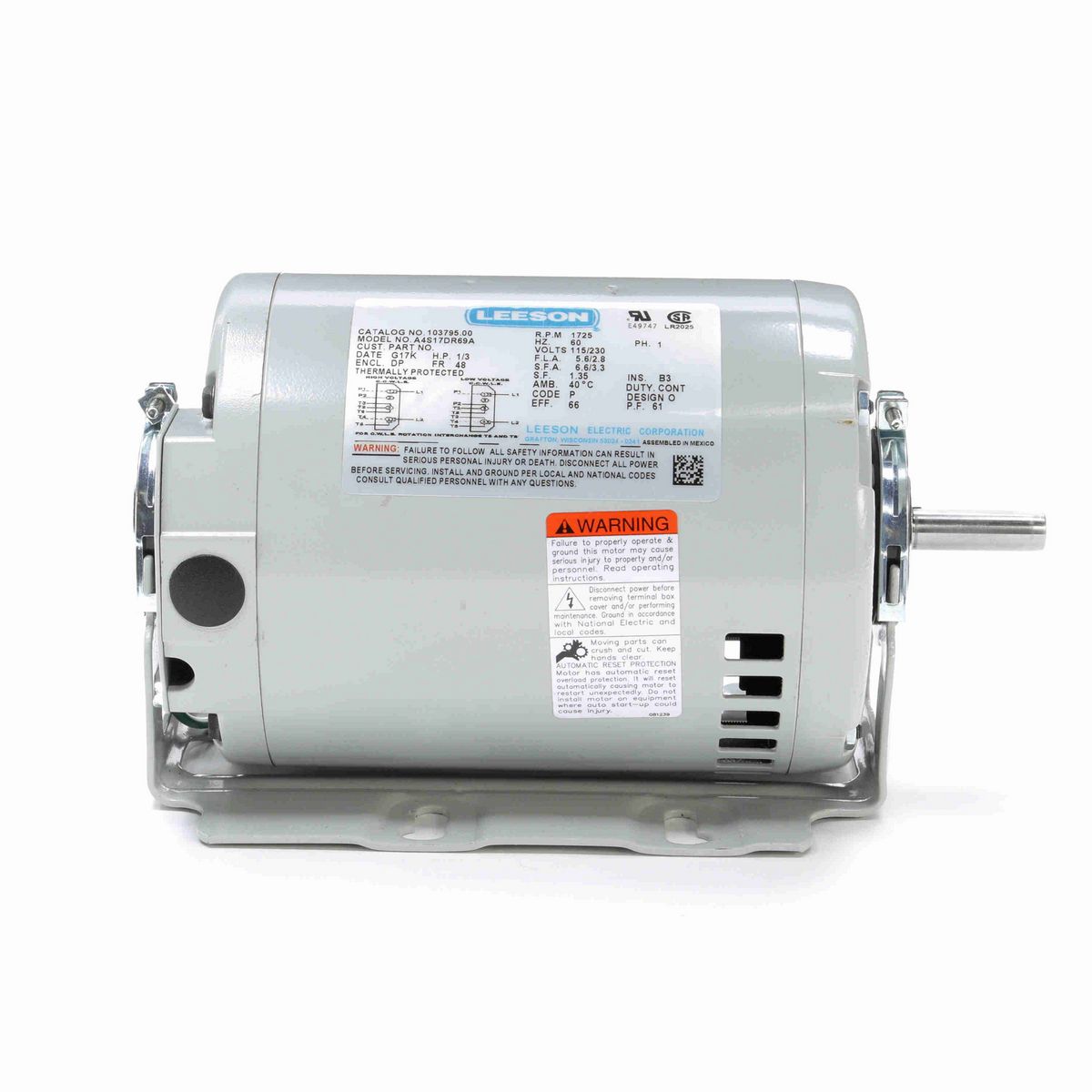

Nameplate Specifications

Phase	1
Output HP	0.33 Hp
Output KW	0.25 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.35
Frame	48
Enclosure	Drip Proof
Thermal Protection	Automatic
Efficiency	66 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.6/2.8 A
Power Factor	61
Duty	Continuous
Insulation Class	B
Design Code	O
KVA Code	P
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	22
Number of Speeds	1

Technical Specifications

Electrical Type	Split Phase
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	0 Ohms
Mounting	Resilient Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 48
Overall Length	10.18 in
Frame Length	5.75 in
Shaft Diameter	0.500 in
Shaft Extension	1.5 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720053904
Weight	16.00 LB
Packaged Length	13.75 IN
Packaged Width	7.88 IN
Packaged Height	8.75 IN
Country of Origin	Mexico
