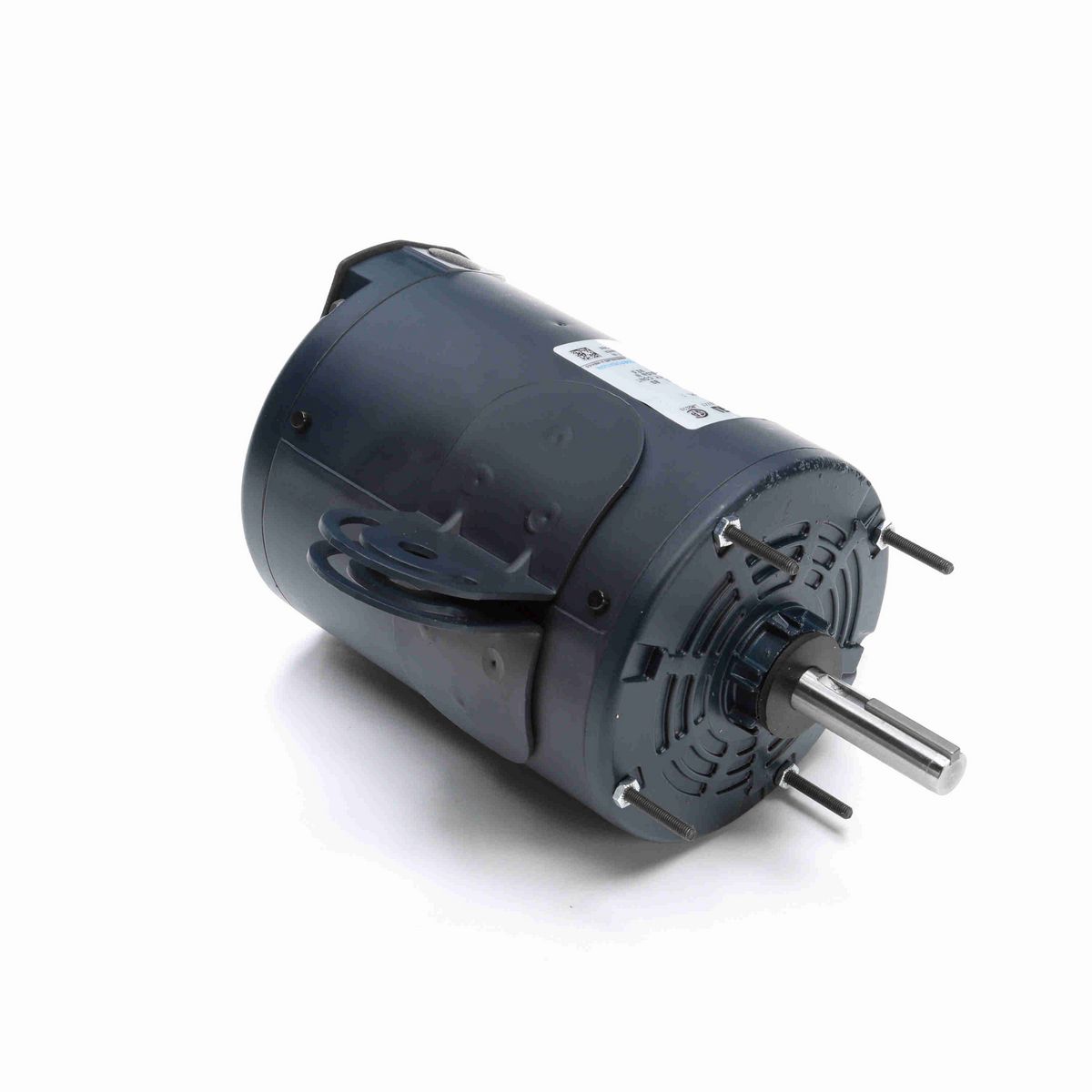

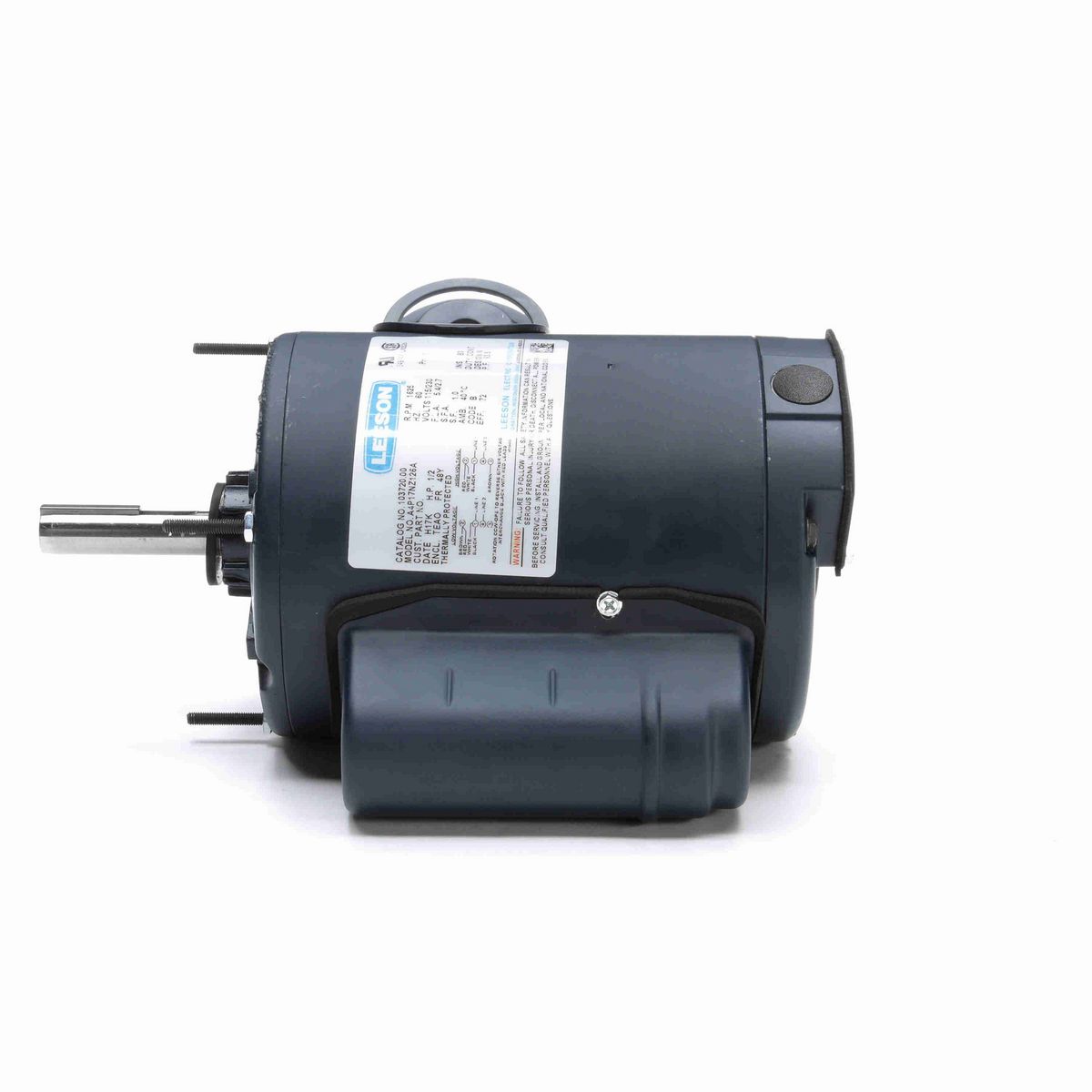

• Drop-in replacement for most standard belted-fan motors
• Extremely quiet running compared to standard fan motors
• Consumes approximately half of the power of a standard fan motor
• Permanent split capacitor type
• Ball bearing design
• Heavy-gauge steel yoke is welded to the motor frame
• 10-32 mounting studs are extended 1.0” on 5.14” bolt circle
• Motors are UL and CSA recognized for both the U.S. and Canadian markets
• Automatic overload protection

Nameplate Specifications

Phase	1
Output HP	0.50 Hp
Output KW	0.37 kW
Voltage	115/230 V
Speed	1625 rpm
Service Factor	1
Frame	48YZ
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Efficiency	72 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.4/2.7 A
Power Factor	93.5
Duty	Continuous
Insulation Class	B
Design Code	N
KVA Code	B
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	0 Ohms
Mounting	Round - Swing Arm
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Overall Length	11.06 in
Frame Length	6.25 in
Shaft Diameter	0.625 in
Shaft Extension	2.56 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720021873
Weight	25.00 LB
Packaged Length	15.50 IN
Packaged Width	12.25 IN
Packaged Height	9.38 IN
Country of Origin	Mexico
