• Durable rolled steel construction
• NEMA Design B performance
• Meets or exceed NEMA service factors
• Double shielded ball bearings
• Continuous duty
• UL recognized component listing and CSA certified
• LEESON® motors. Motors and solutions at our core™

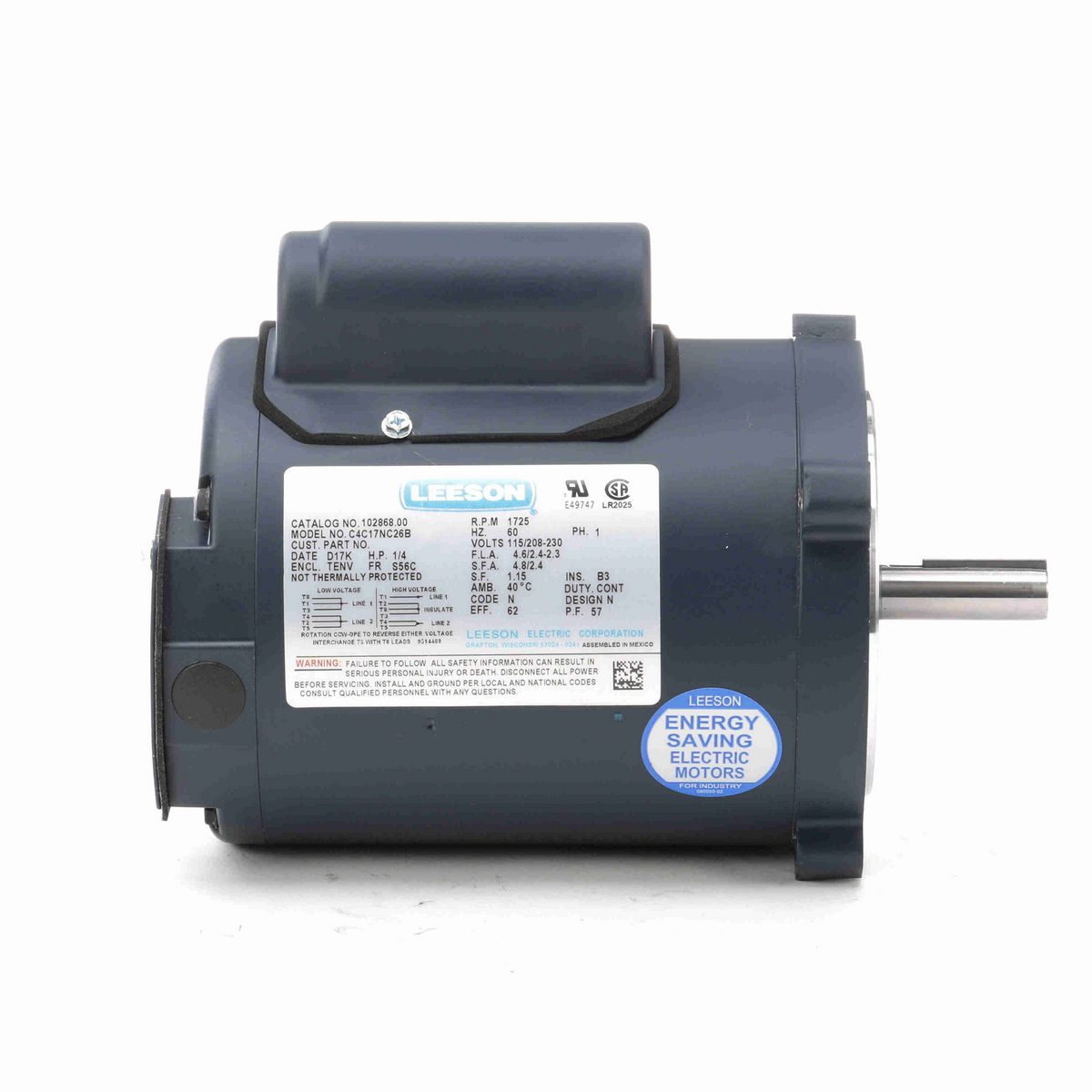

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	0.25 Hp
Output KW	0.19 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.15
Frame	S56C
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Efficiency	62 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.6/2.3 A
Power Factor	57
Duty	Continuous
Insulation Class	B
Design Code	N
KVA Code	N
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	59.9 Ohms
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	9.80 in
Frame Length	5.75 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720326480
Weight	20.00 LB
Packaged Length	13.75 IN
Packaged Width	7.88 IN
Packaged Height	8.75 IN
Country of Origin	Mexico
