• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Double-shielded bearings extend the service life of the motor.
• Single and three phase, TEFC, TEAO, and ODP construction.
• Overload protection prevents motor from overheating.
• LEESON® motors. Motors and solutions at our core™

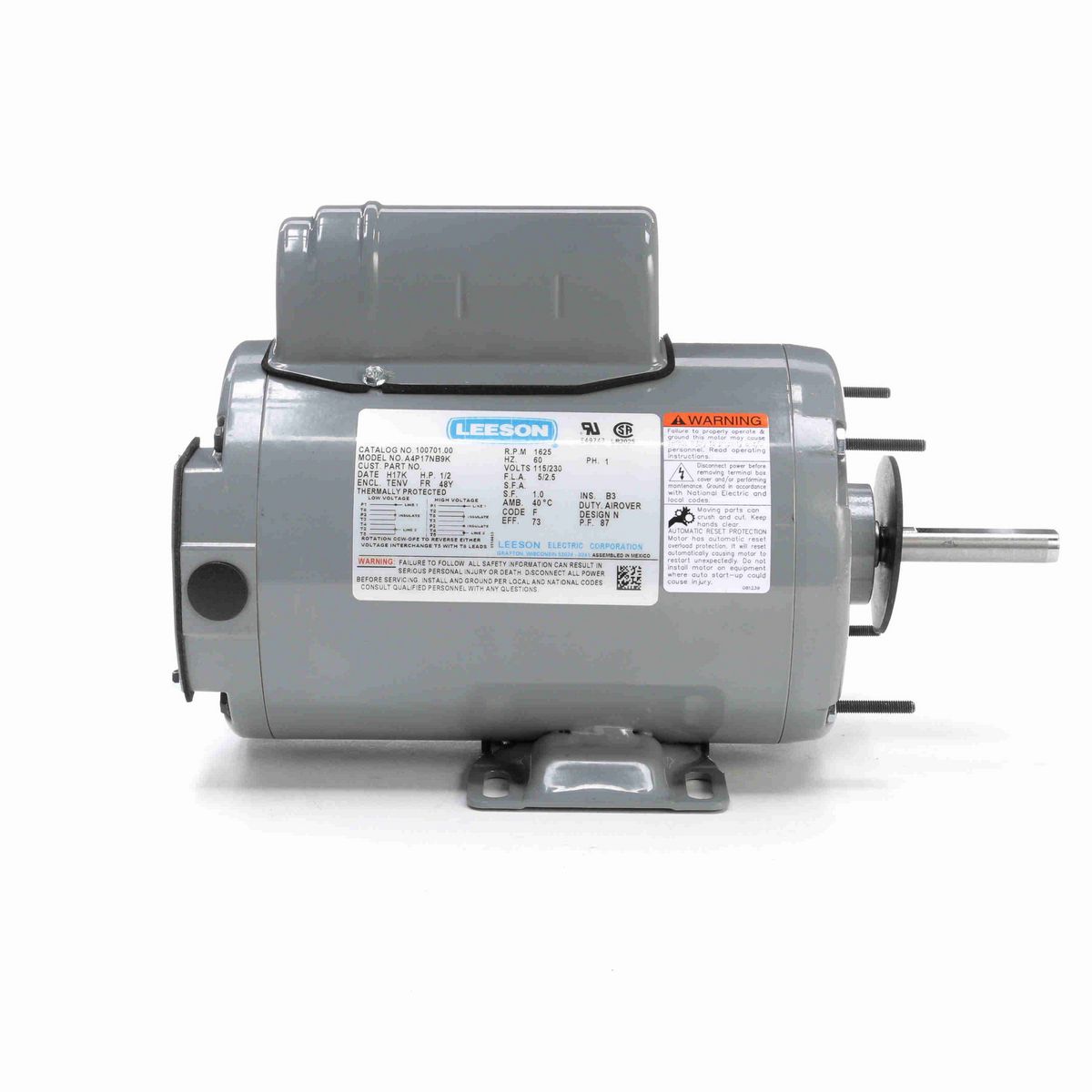

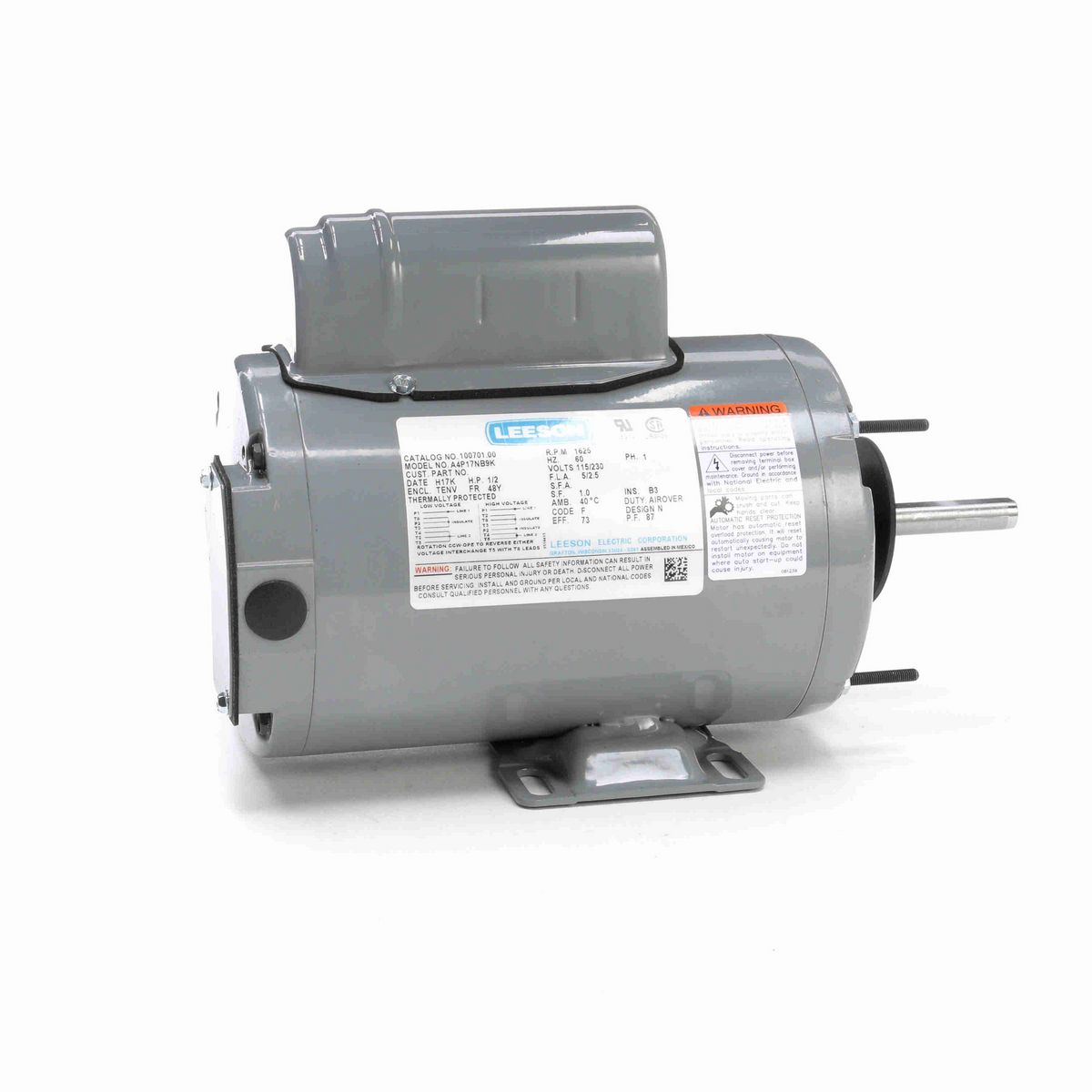

Nameplate Specifications

Phase	1
Output HP	0.50 Hp
Output KW	0.37 kW
Voltage	115/230 V
Speed	1625 rpm
Service Factor	1
Frame	48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Efficiency	73 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.0/2.5 A
Power Factor	87
Duty	Continuous
Insulation Class	B
Design Code	N
KVA Code	F
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	N
IP Code	43
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	1.2 Ohms
Mounting	Rigid Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Overall Length	12.15 in
Frame Length	7.00 in
Shaft Diameter	0.500 in
Shaft Extension	2.5 in
Assembly/Box Mounting	F1 ONLY

General Specifications

UPC	691720005019
Weight	24.00 LB
Packaged Length	14.44 IN
Packaged Width	7.94 IN
Packaged Height	10.88 IN
Country of Origin	Mexico
