Алюминиевая каретка с кулачковыми роликами (версия «super») Bosch Rexroth LWA-020-SKS-FN-E-0 [R190611900]

Version

Cam roller guide

Nominal size [mm]

20

Preload class

C0 - Without preload (clearance)

Width of runner block [mm]

56

Length of runner block [mm]

50

Height of runner block [mm]

8.5

Height runner block with guide rail [mm]

22

Lubrication

Without initial lubrication and without preservation

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

10

Note: maximum permissible speed vmax

For average load.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]

1,6

Maximum dynamic load in y-direction Fy max [N]

350

Note: Maximum dynamic load in y-direction Fy max

Observe the permissible lateral force of the guide rail (see instruction for mounting).

Operating temperature (min. … max.)

-20 °C ... +80 °C

Maximum static load due to a resulting force in the y-direction F0y max [N]

350

Note: maximum static load due to a resulting force in y-direction F0y max

Observe the permissible lateral force of the guide rail (see notes for mounting).

Weight [kg]

0.12

Maximum operating temperature [°C]

+80

Maximum dynamic load in z-direction Fz max [N]

200

Minimum operating temperature [°C]

-20

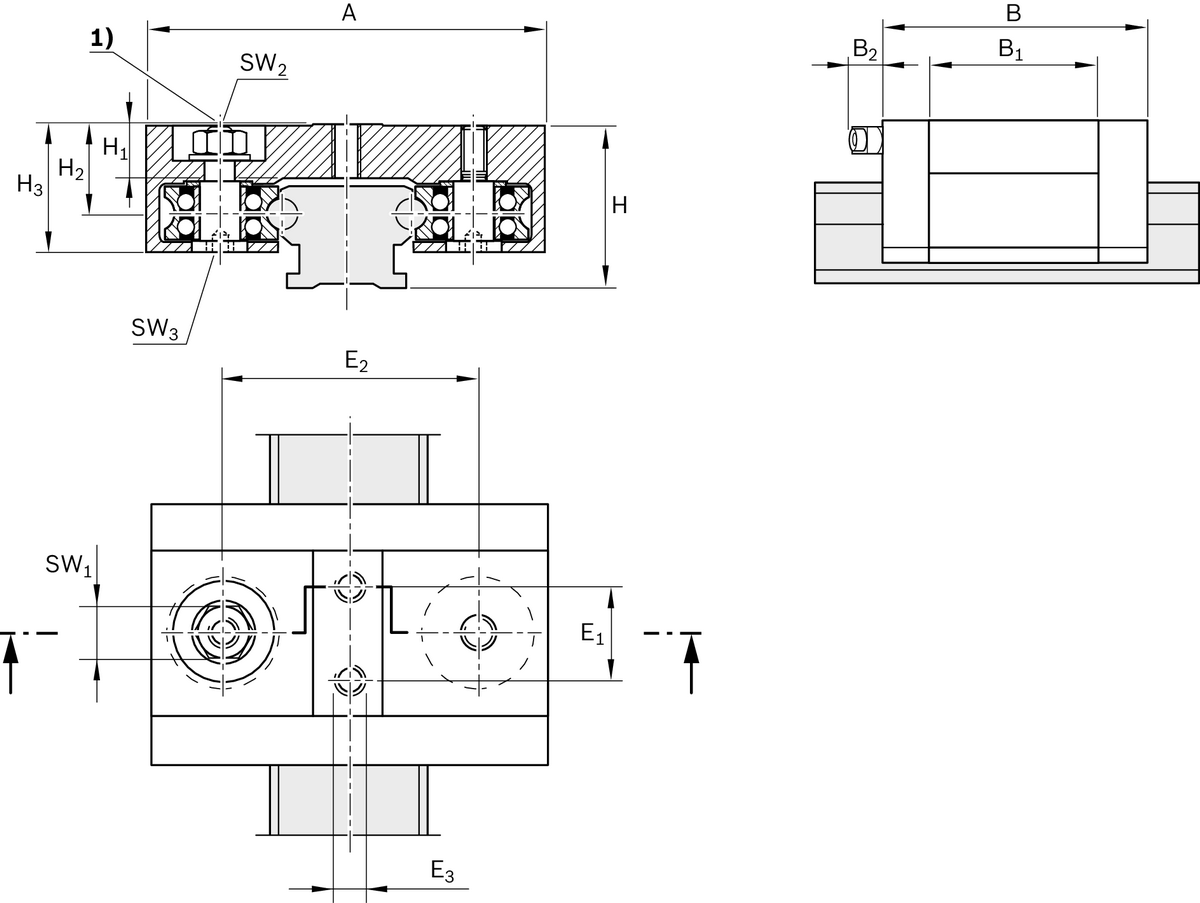

Dimension A (profiled rail systems) [mm]

56

Dimension B (profiled rail systems) [mm]

50

Dimension B1 [mm]

30

Dimension B2 (profiled rail systems) [mm]

7

Dimension E1 [mm]

17

Dimension E2 (profiled rail systems) [mm]

34

Dimension E3 thread

M5

Dimension H [mm]

22

Dimension H1 (profiled rail systems) [mm]

8.5

Dimension H2 (profiled rail systems) [mm]

13

Dimension H3 [mm]

13

Dimension SW1 [mm]

7

Dimension SW2 [mm]

2

Dimension SW3 [mm]

2
