Плоскопрофильная алюминиевая каретка с кулачковыми роликами Bosch Rexroth LWA-042-SNS-C1-E-0 [R190714200]

Version

Cam roller guide

Nominal size [mm]

42

Preload class

C0 - Without preload (clearance)

Width of runner block [mm]

116

Length of runner block [mm]

150

Height of runner block [mm]

18

Height runner block with guide rail [mm]

39

Lubrication

Without initial lubrication and without preservation

Maximum acceleration rate amax [m/s²]

50

Maximum permissible linear speed vmax [m/s]

10

Note: maximum permissible speed vmax

For average load.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]

27

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]

63

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]

127

Maximum dynamic load in y-direction Fy max [N]

3000

Note: Maximum dynamic load in y-direction Fy max

Observe the permissible lateral force of the guide rail (see instruction for mounting).

Operating temperature (min. … max.)

-20 °C ... +80 °C

Maximum static load due to a resulting force in the y-direction F0y max [N]

3000

Note: maximum static load due to a resulting force in y-direction F0y max

Observe the permissible lateral force of the guide rail (see notes for mounting).

Weight [kg]

1.13

Maximum operating temperature [°C]

+80

Maximum dynamic load in z-direction Fz max [N]

1500

Minimum operating temperature [°C]

-20

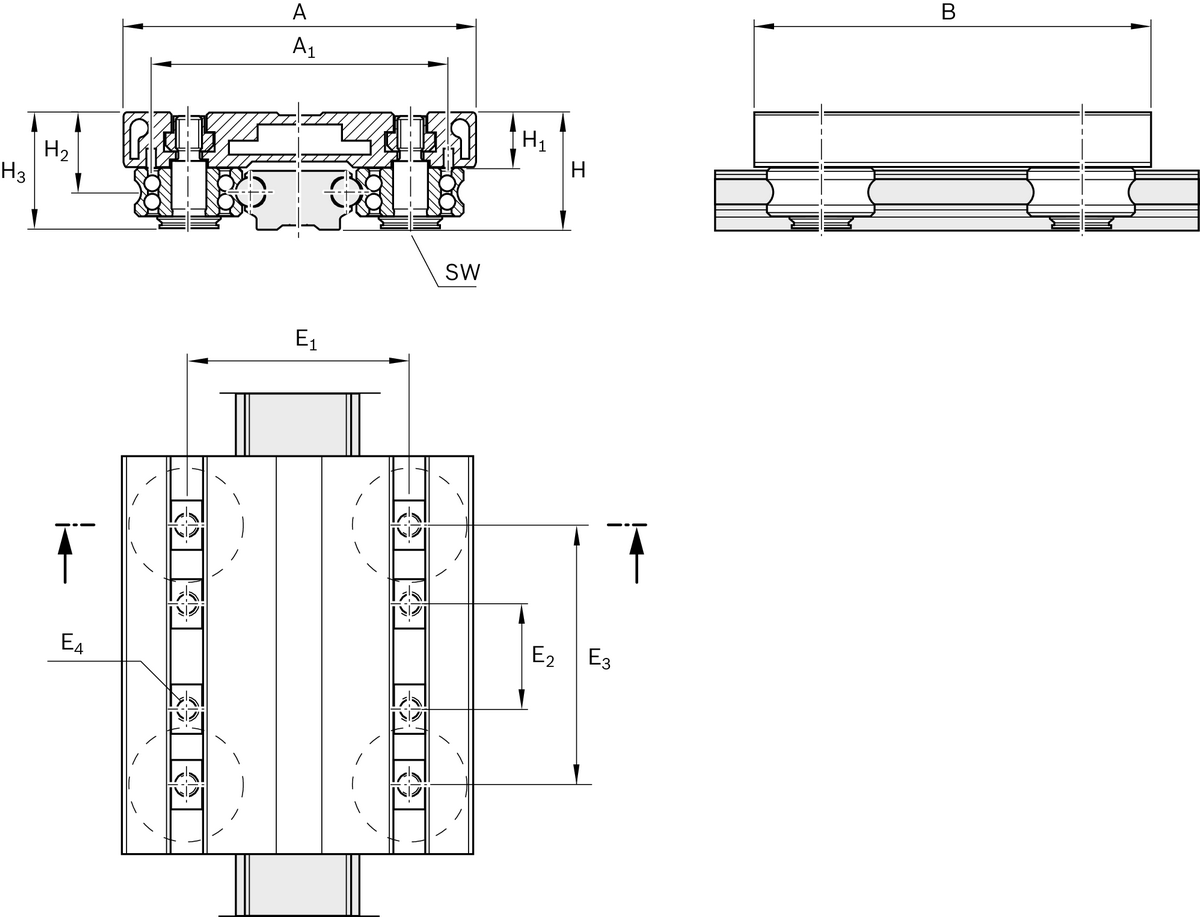

Dimension A (profiled rail systems) [mm]

116

Dimension A1 (profiled rail systems) [mm]

98.5

Dimension B (profiled rail systems) [mm]

150

Dimension E1 [mm]

73

Dimension E2 (profiled rail systems) [mm]

15 - 55

Dimension E3 (profiled rail systems) [mm]

85

Dimension E4 thread

M8

Dimension H [mm]

39

Dimension H1 (profiled rail systems) [mm]

18

Dimension H2 (profiled rail systems) [mm]

26.4

Dimension H3 [mm]

38.1

Dimension SW1 [mm]

6
