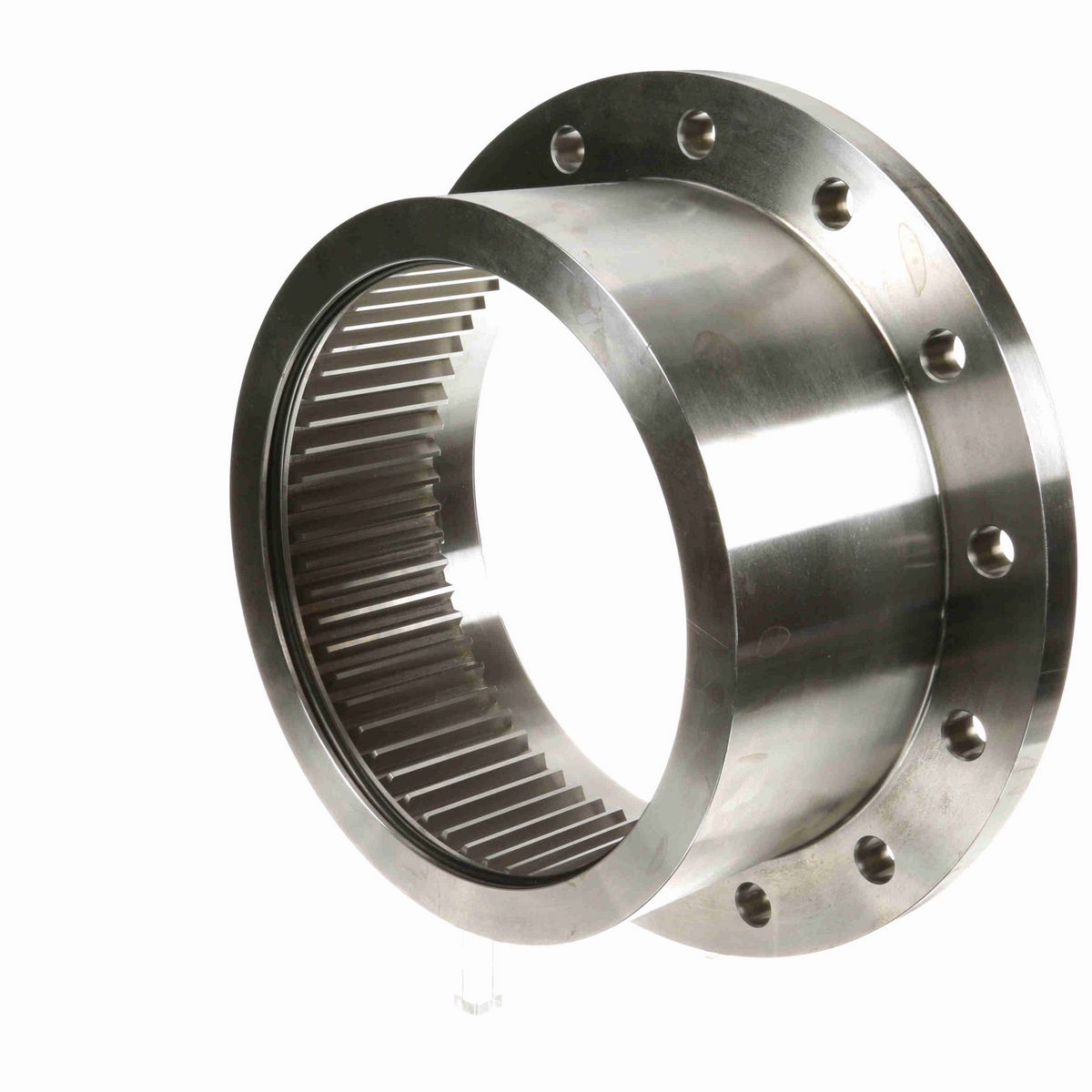

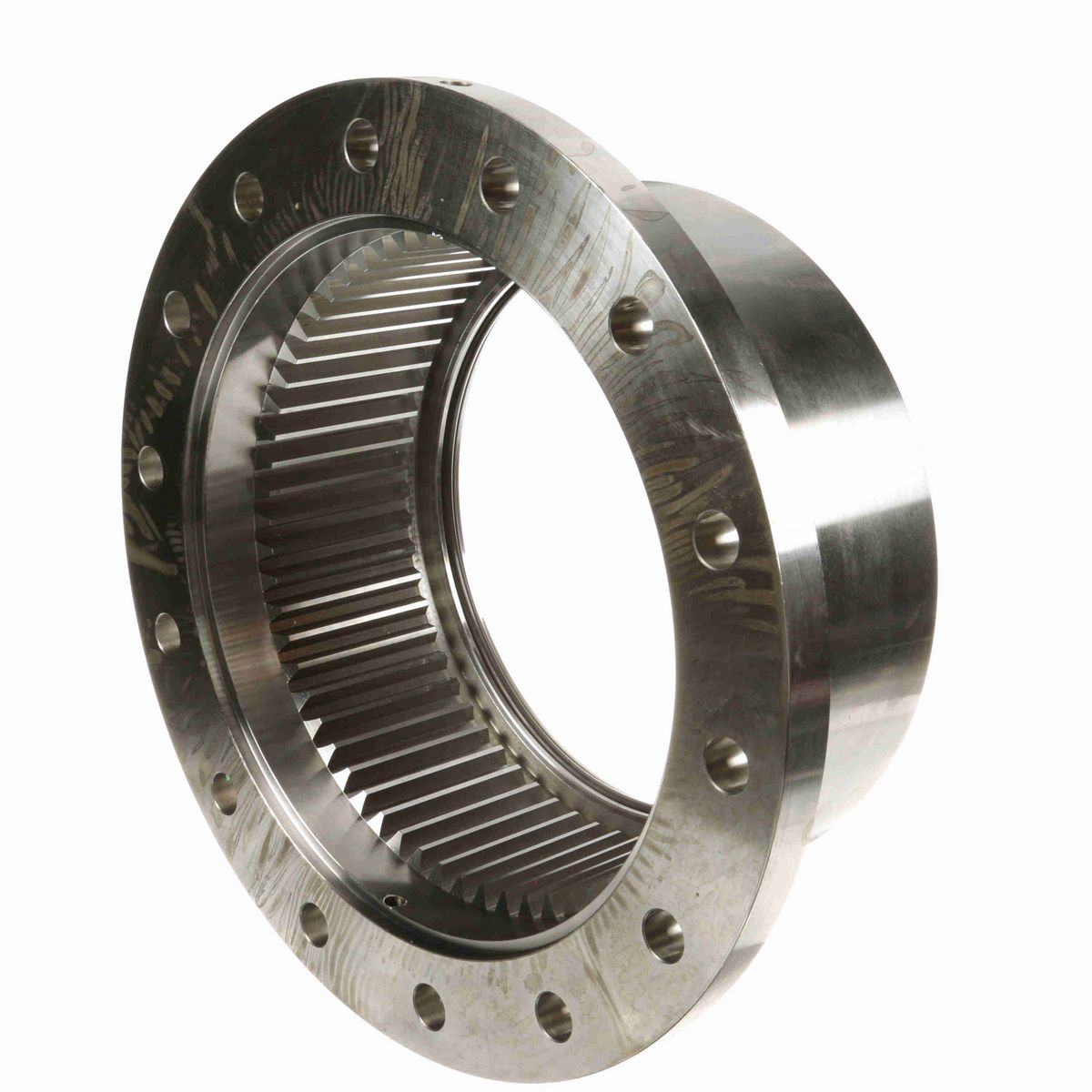

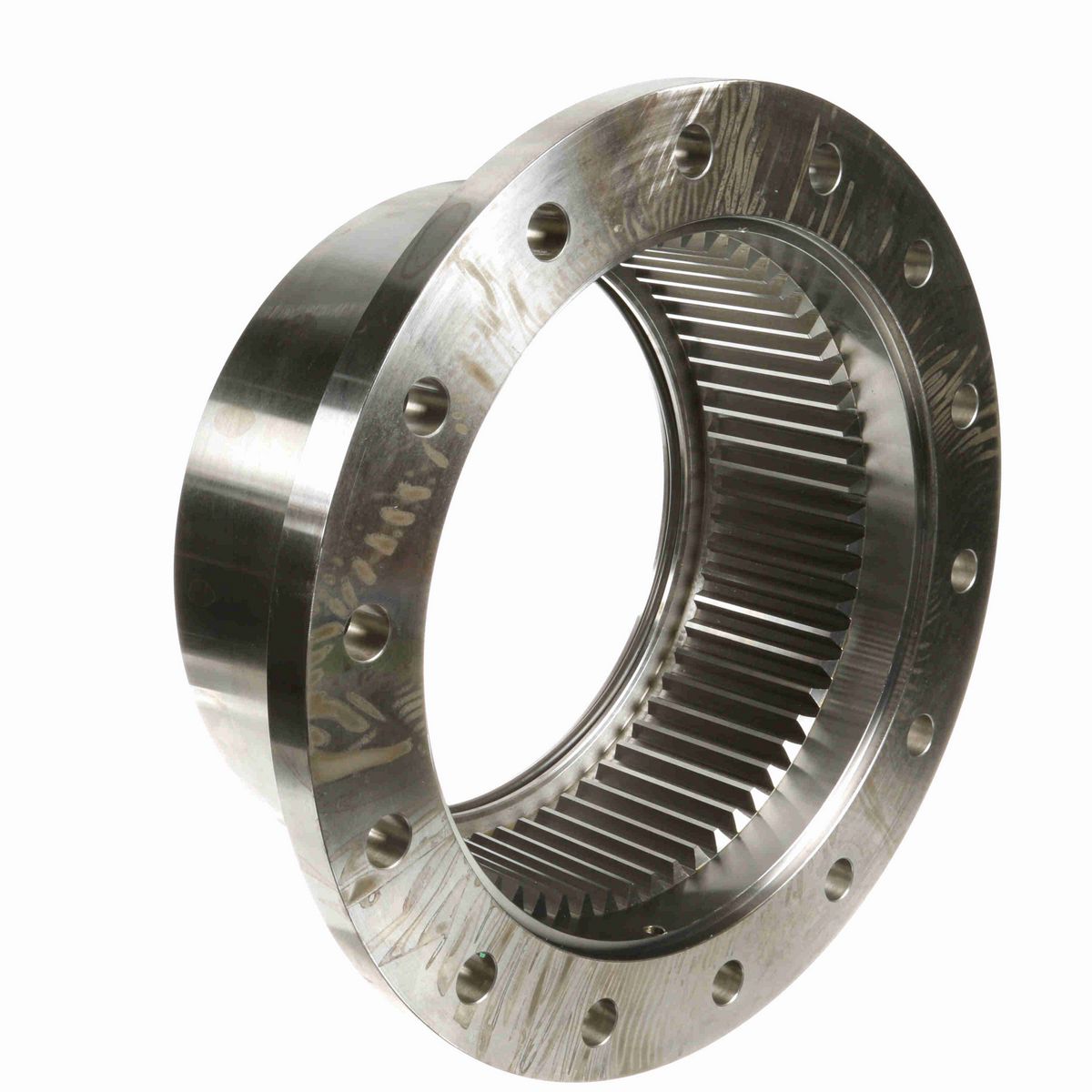

• Large bore capacity with o-ring seal design. The most economical gear coupling design.
• Curved face teeth (sizes 1 through 7) for up to 1.5 degrees static misalignment capability.
• Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves.

Technical Specifications

Bolt Type	Exposed
Model	Series H
Coupling Size	7
Component Type	Slide Sleeve
Lube/Non-Lube	Lubricated
Coupling Type	Gear Coupling
Measurement System	Imperial
Total Slide	4.875
Sleeve Overall Length (in)	7.6875 in
Sleeve Type	Slide
Sleeve Material	Steel
Bolt Circle	18.25 in
Outside Diameter (in)	20.75 in
Speed Max (rpm)	3,000 rpm
Torque Rating (in-lb)	1,160,000 in/lbs
Tooth Profile	Crowned
Configuration	Gear Sleeve

General Specifications

UPC	662384949179
Weight	125.00 LB
Packaged Length	21.00 IN
Packaged Width	21.00 IN
Packaged Height	21.00 IN
HTC	8483.90.8010
Country of Origin	Mexico
