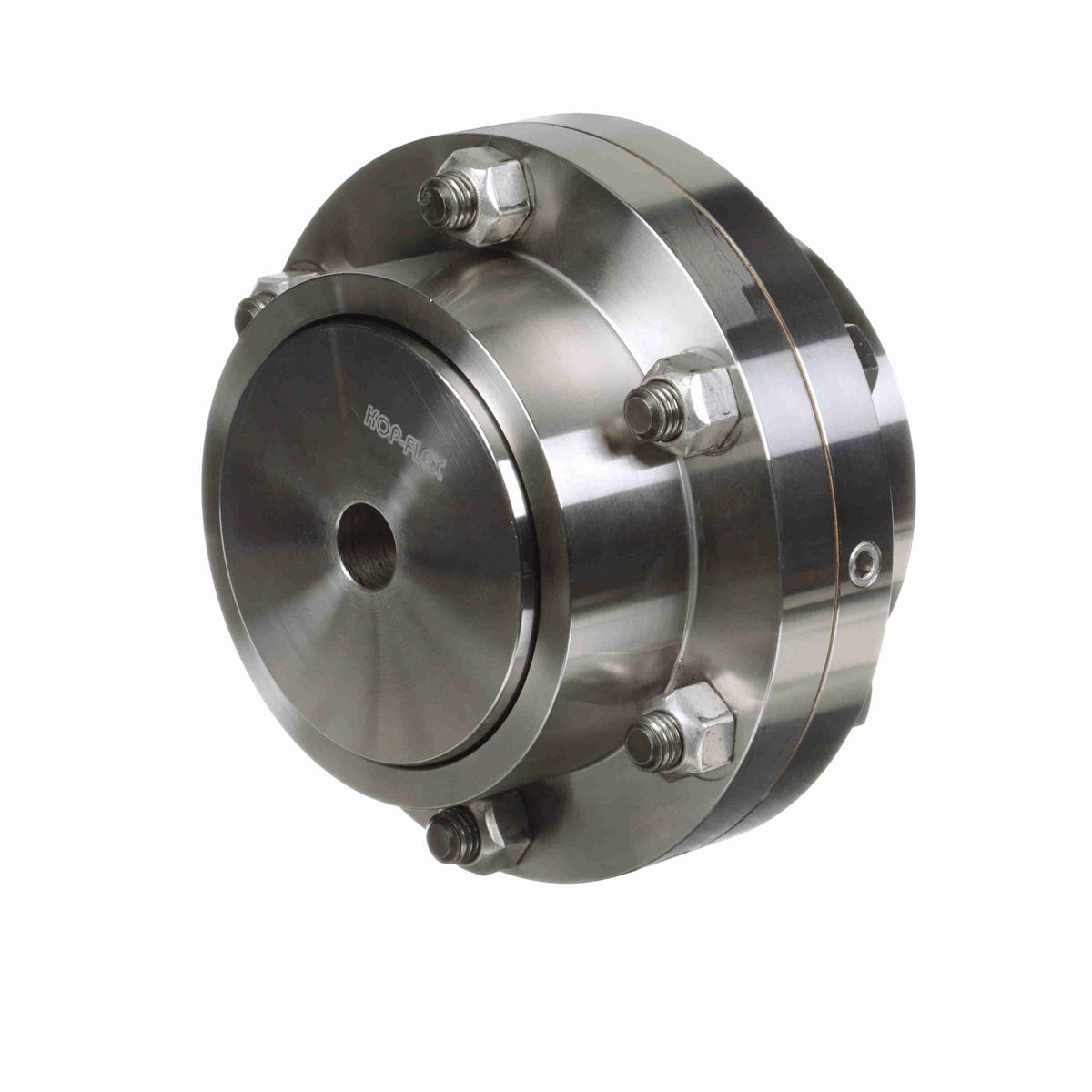

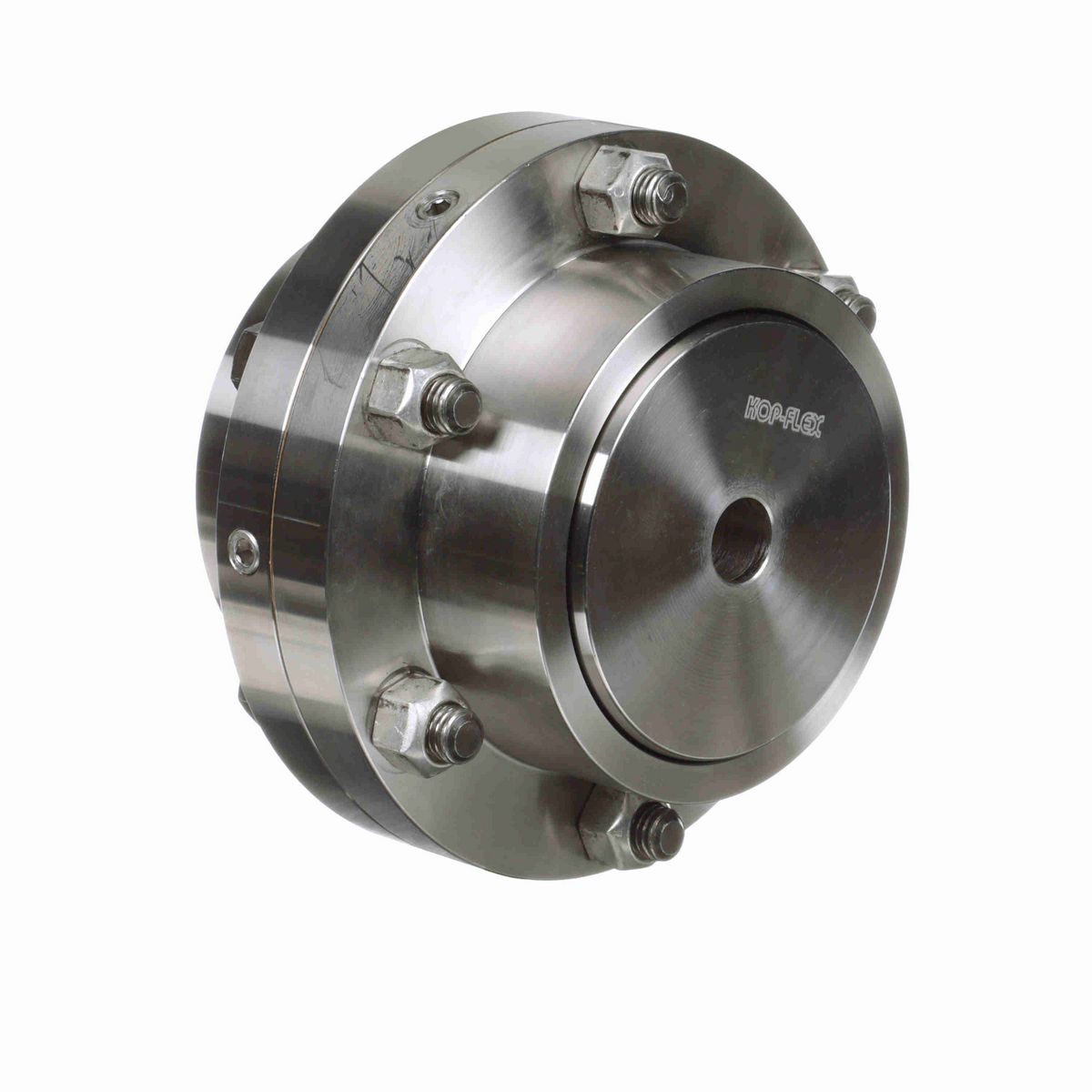

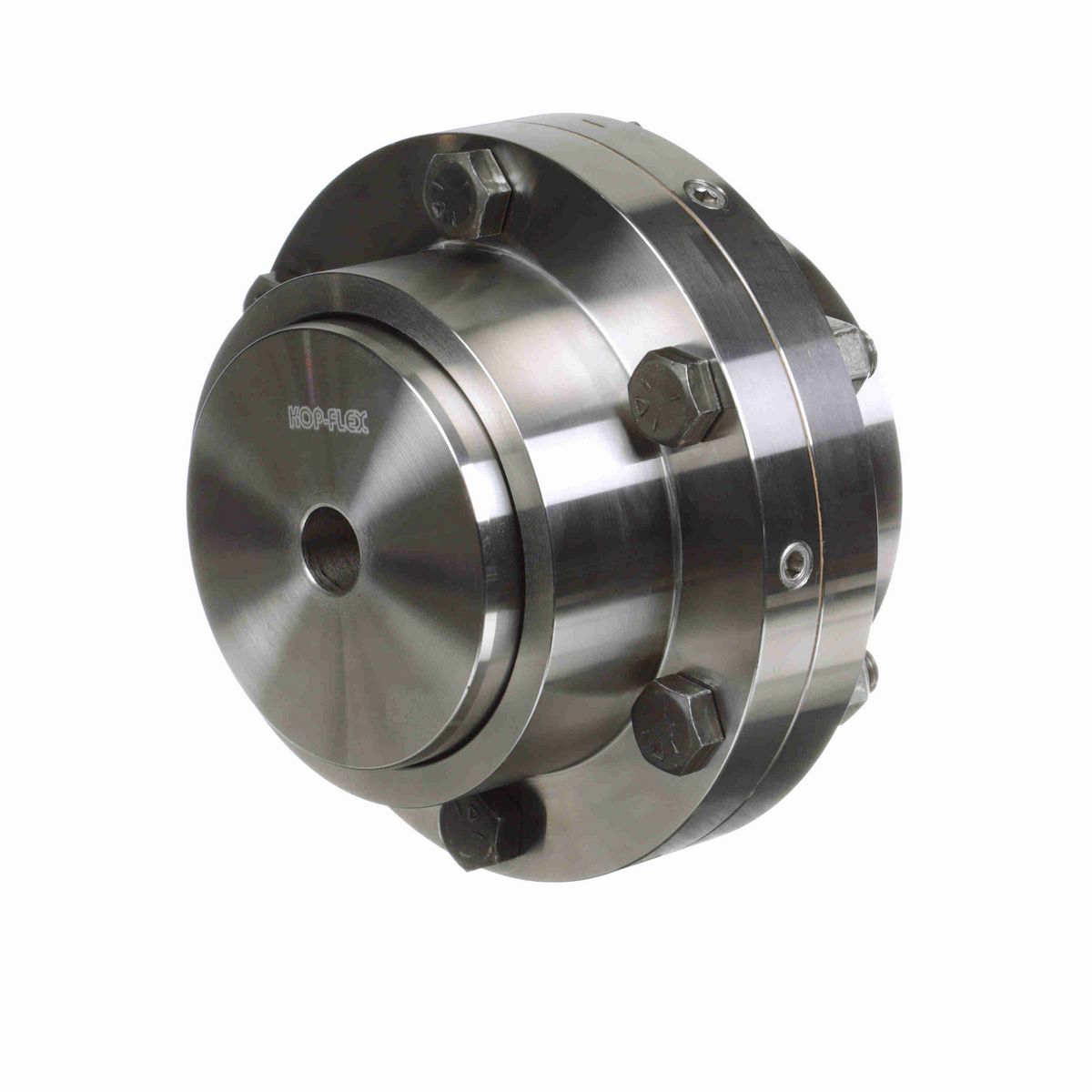

• Large bore capacity with o-ring seal design. The most economical gear coupling design.
• Curved face teeth (sizes 1 through 7) for up to 1.5 degrees static misalignment capability.
• Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves.
• Precision-drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection.

Technical Specifications

Length Through Bore (in)	7.40625 in
Coupling Type	Gear Coupling
Outside Diameter (in)	18 in
Fastener Quantity	14
Rating HP @ 100 RPM	1,205
Bore Type	Rough Bore
Material	Medium Carbon Steel
Coupling Size	6
Tooth Profile	Straight faced, Involute Stub Tooth
Model Name	H1-7FF_Master
Bolt Type	Exposed
Bolt Circle	15.75 in
Measurement System	Imperial
Compatible Bore Size [Min] (in)	3.5 in
Overall Length (in)	13.3125 in
Speed Max (rpm)	3,600 rpm
Configuration	Full Flex
Torque [Max] (in-lb)	1,518,000 in/lbs
Style	Series H
Torque Rating (in-lb)	759,000 in/lbs
Lube/Non-Lube	Lubricated
Hub Diameter (in)	11.5 in
Features	Exposed Bolt / Full Flex Coupling
Includes	Hubs (2) Sleeves (2) Seals (2)
Sleeve Type	Flanged
Temperature Range	-40 to +190 °F
Maximum Operating Angular Misalignment	1.5 °
Performance	Lubrication Hole
Fastener Size	7/8 x 3 1/4
Bore Size Max (in)	8.88 in

General Specifications

UPC	662384140101
Weight	543.92 LB
