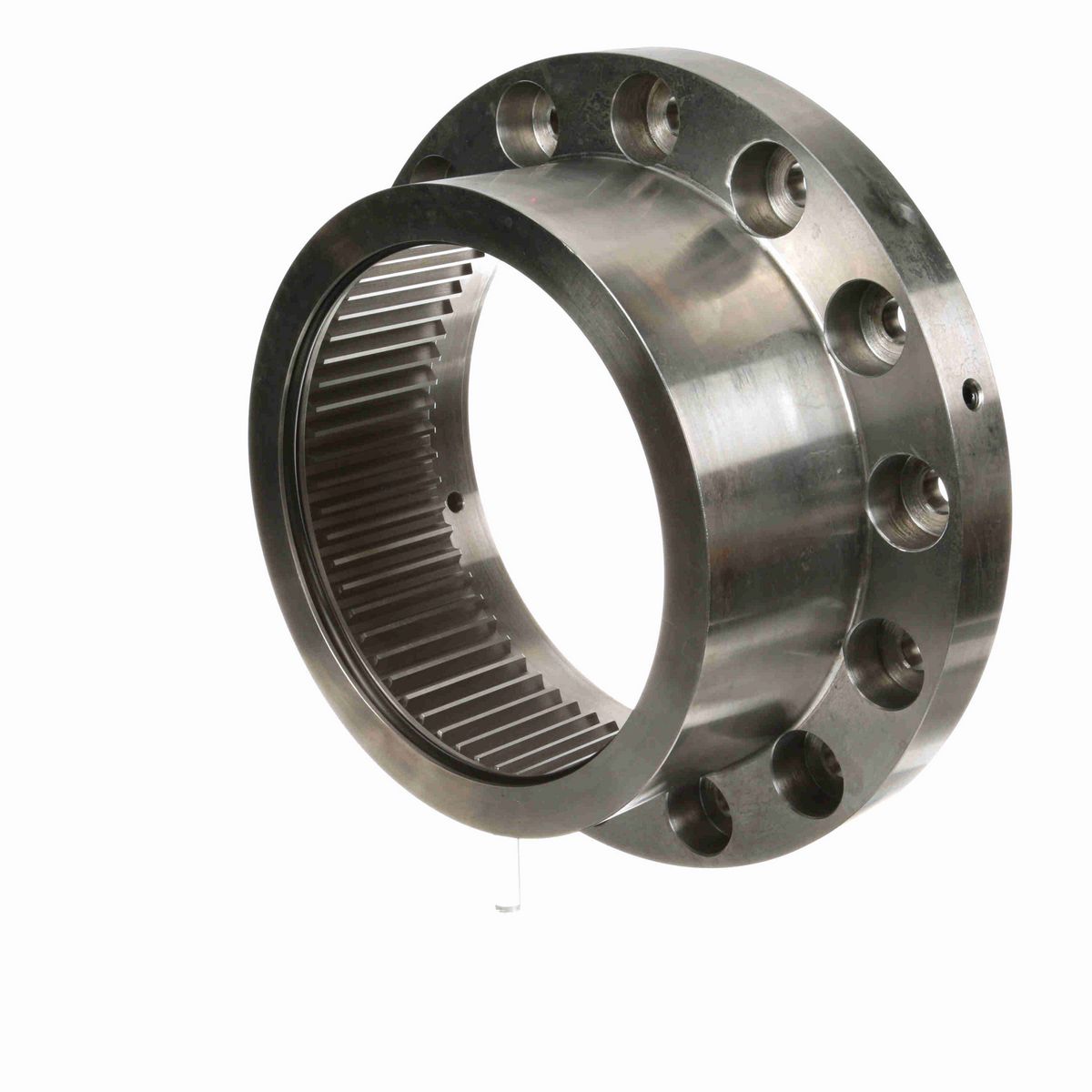

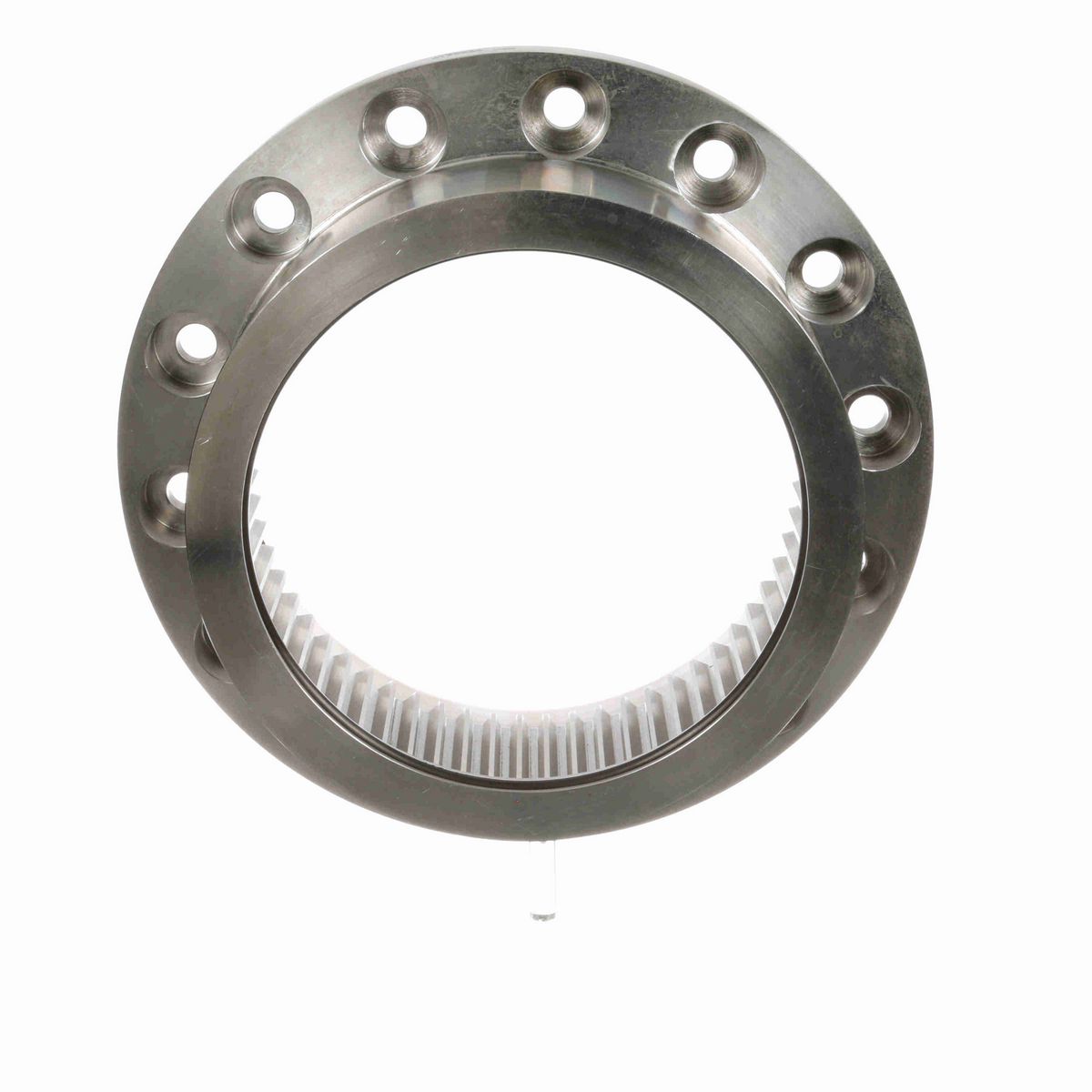

• Large bore capacity with o-ring seal design. The most economical gear coupling design.
• Curved face teeth (sizes 1 through 7) for up to 1.5 degrees static misalignment capability.
• Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves.

Technical Specifications

Component Type	Standard Sleeve
Coupling Size	5
Model	Series H
Bolt Type	Shrouded
Coupling Type	Gear Coupling
Measurement System	Imperial
Lube/Non-Lube	Lubricated
Sleeve Type	Flanged
Outside Diameter (in)	15.3125 in
Bolt Circle	13.1875 in
Sleeve Overall Length (in)	5.53125 in
Speed Max (rpm)	4,300 rpm
Sleeve Material	Steel
Torque Rating (in-lb)	441,000 in/lbs
Tooth Profile	Crowned
Configuration	Gear Sleeve

General Specifications

UPC	662384405101
Weight	56.24 LB
Packaged Length	15.75 IN
Packaged Width	15.75 IN
Packaged Height	15.75 IN
HTC	8483.90.8010
