• Large bore capacity with o-ring seal design. The most economical gear coupling design.
• Curved face teeth (sizes 1 through 7) for up to 1.5 degrees static misalignment capability.
• Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves.
• Precision-drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection.

Technical Specifications

Material	Carbon Steel
Bolt Type	Exposed
Coupling Size	5
Model	Series H

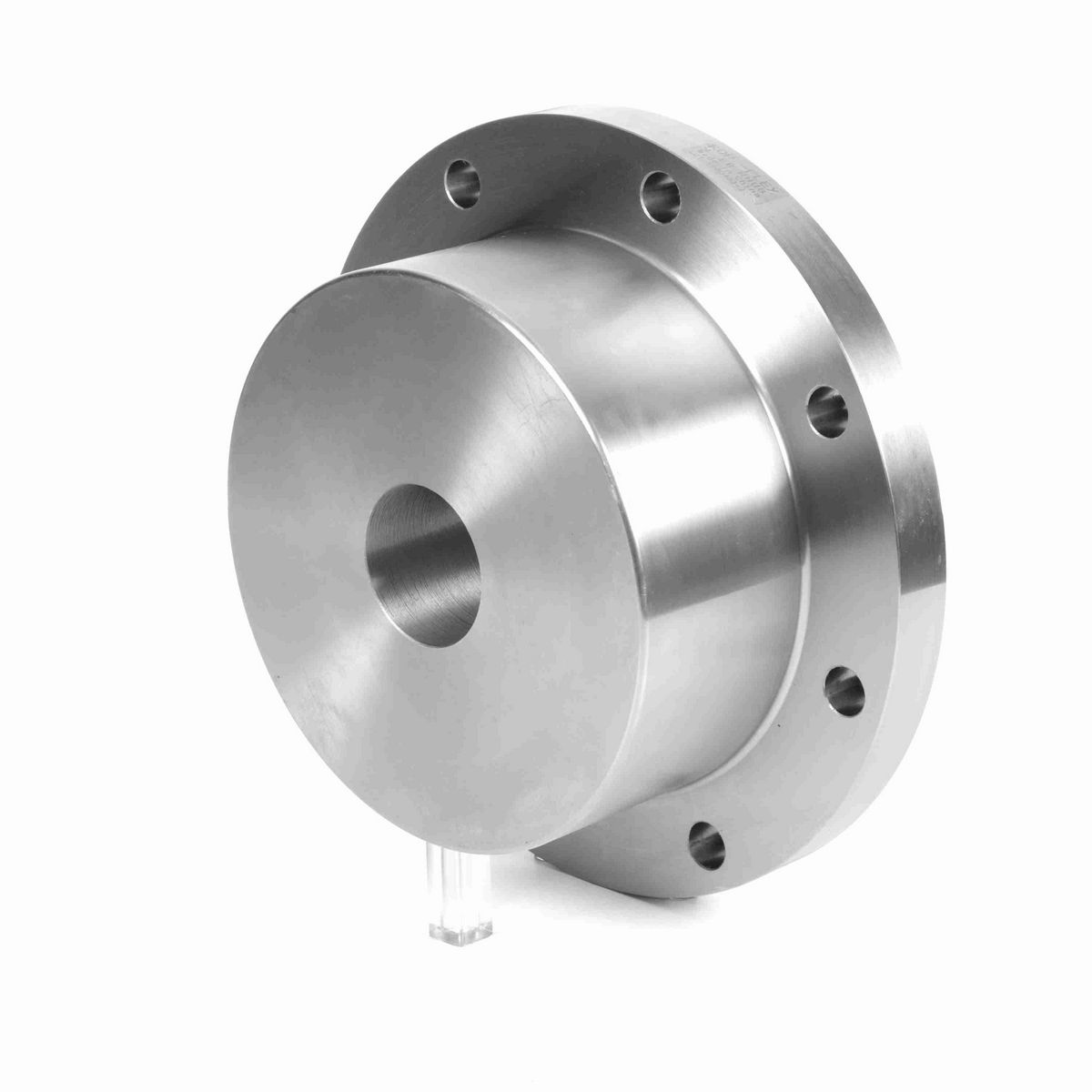

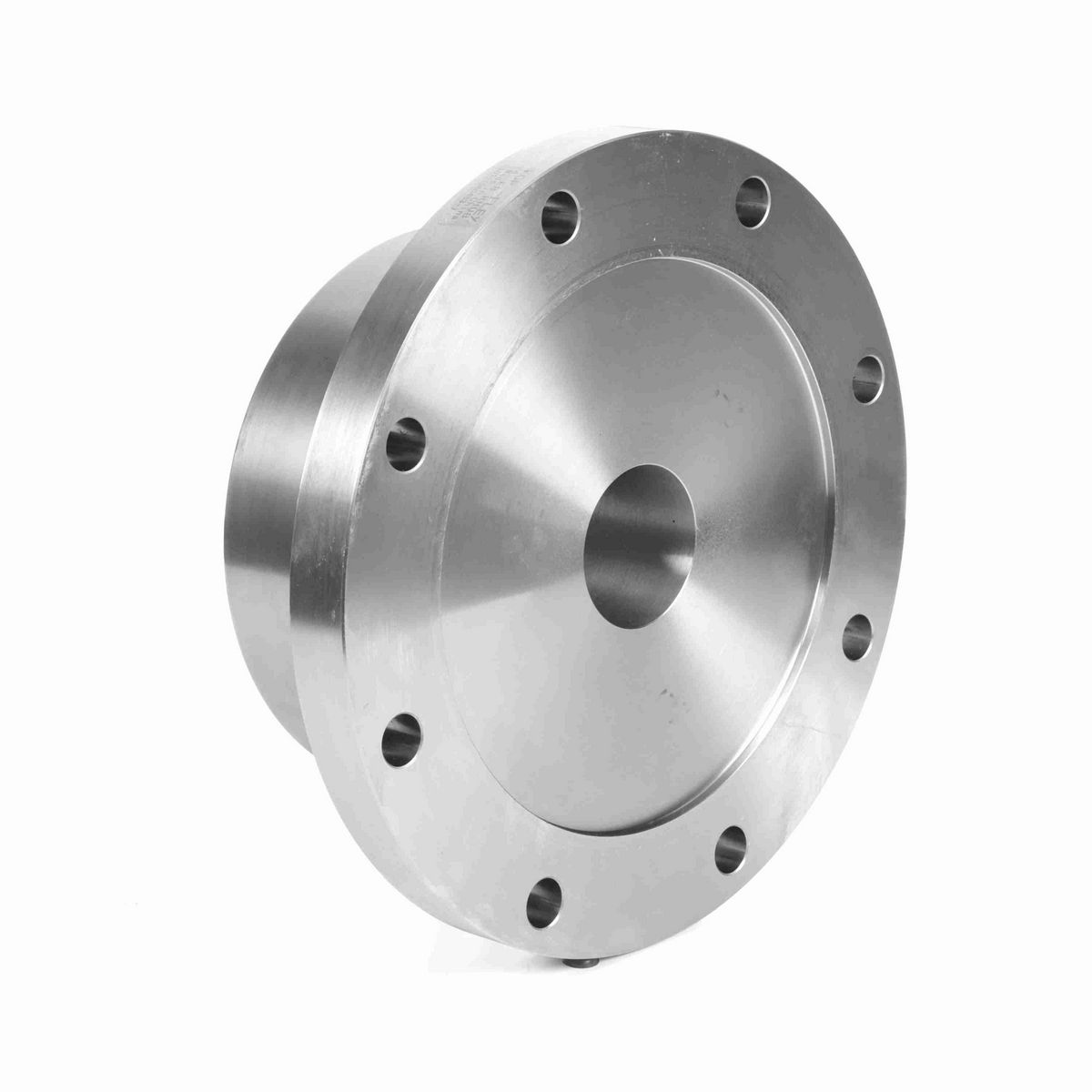

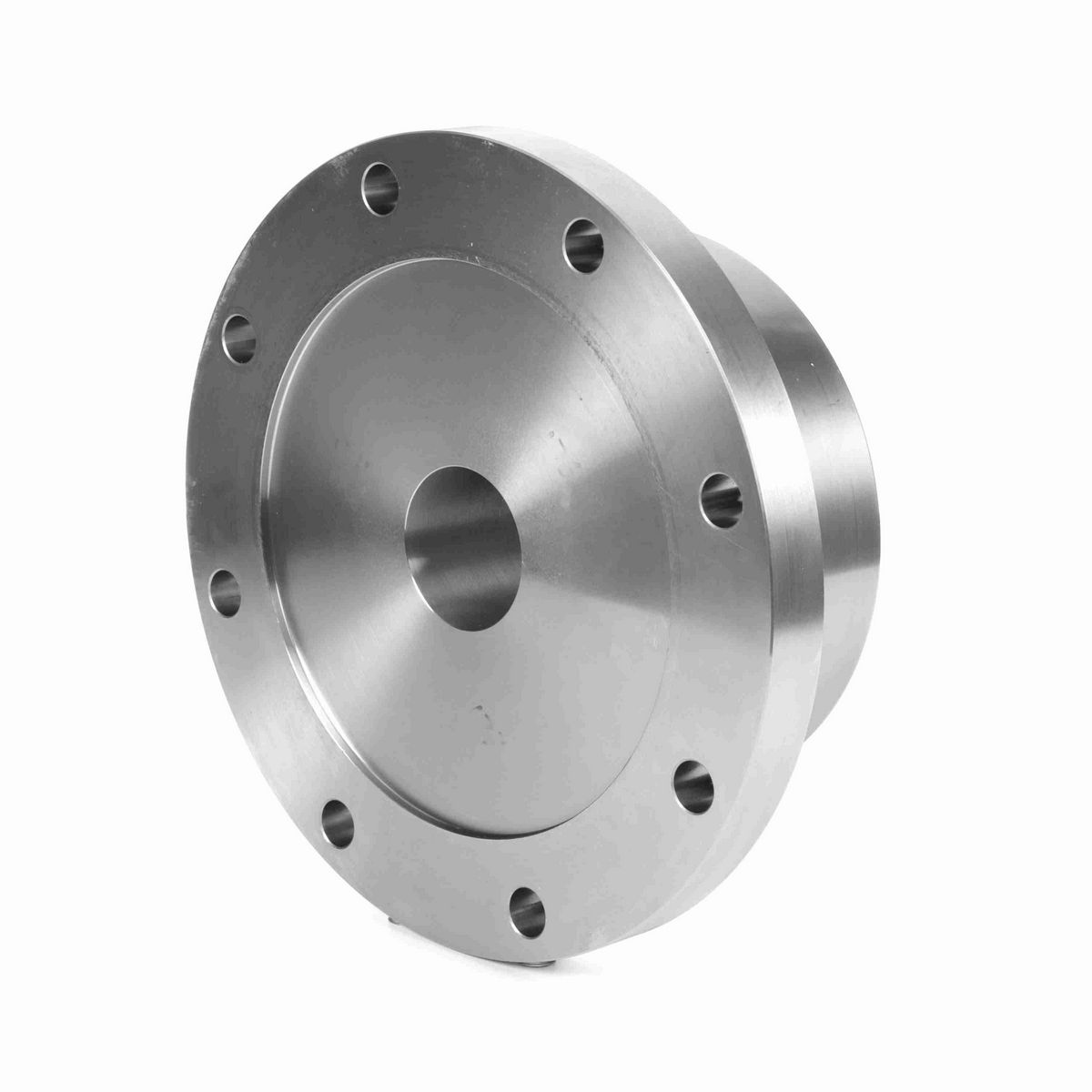

Component Type	Rigid Hub
Length Through Bore (mm)	144.4625 mm
Length Through Bore (in)	5.6875 in
Max Bore w/standard key for Rigid Hub	8.5 in
Outside Diameter (in)	15.3125 in
Size Code	5
Coupling Type	Gear Coupling
Measurement System	Imperial
Lube/Non-Lube	Lubricated
Bore Type	Rough Bore
Hub Diameter (in)	11.375 in
Speed Max (rpm)	4,300 rpm
Sleeve Outside Diameter (in)	15.3125 in
Torque Rating (in-lb)	441,000 in/lbs
Tooth Profile	Crowned
Configuration	Gear
Bore Size Max (in)	8.5 in

General Specifications

UPC	662384110135
Weight	185.50 LB
Packaged Length	16.00 IN
Packaged Width	16.00 IN
Packaged Height	16.00 IN
HTC	8483.90.8010
Country of Origin	China
