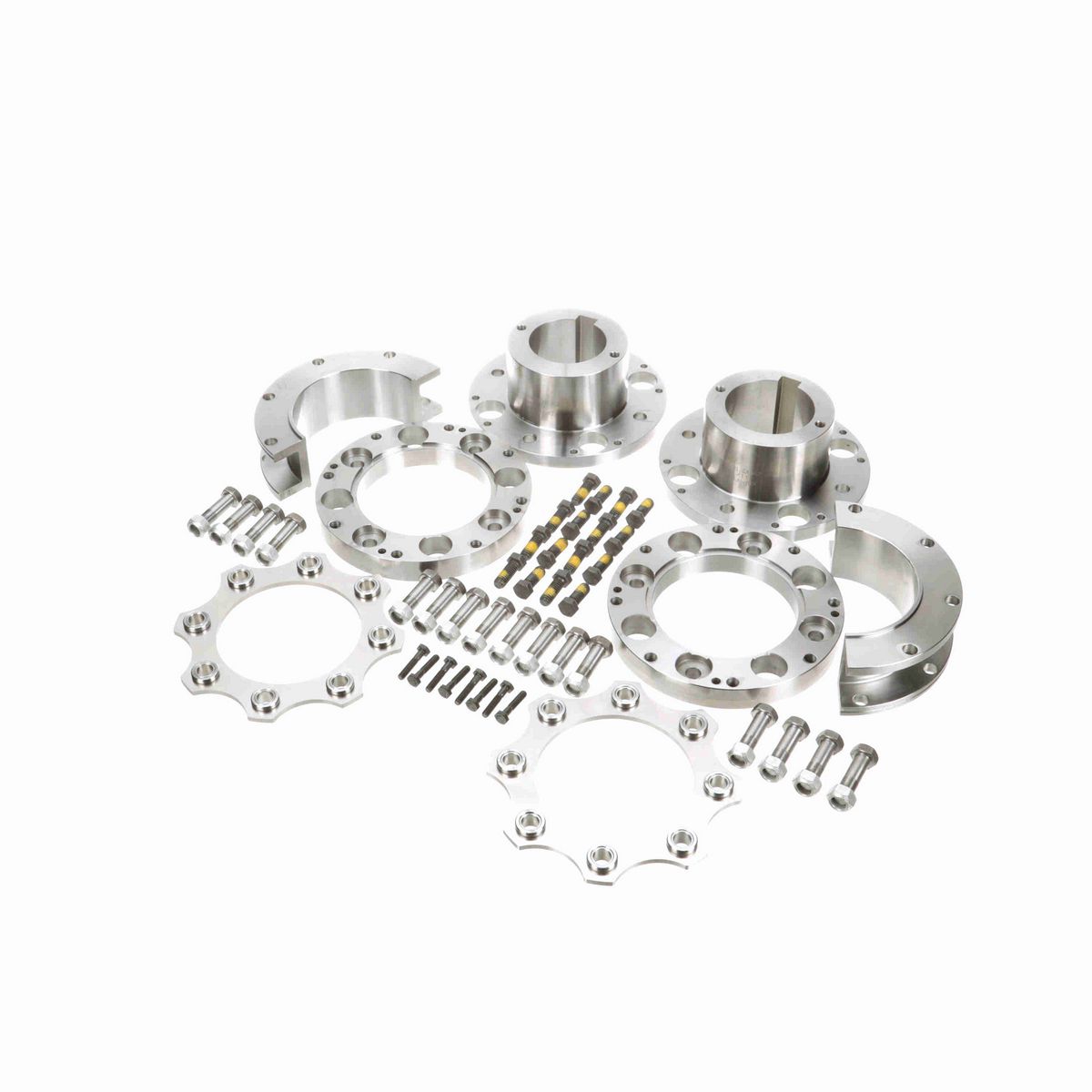

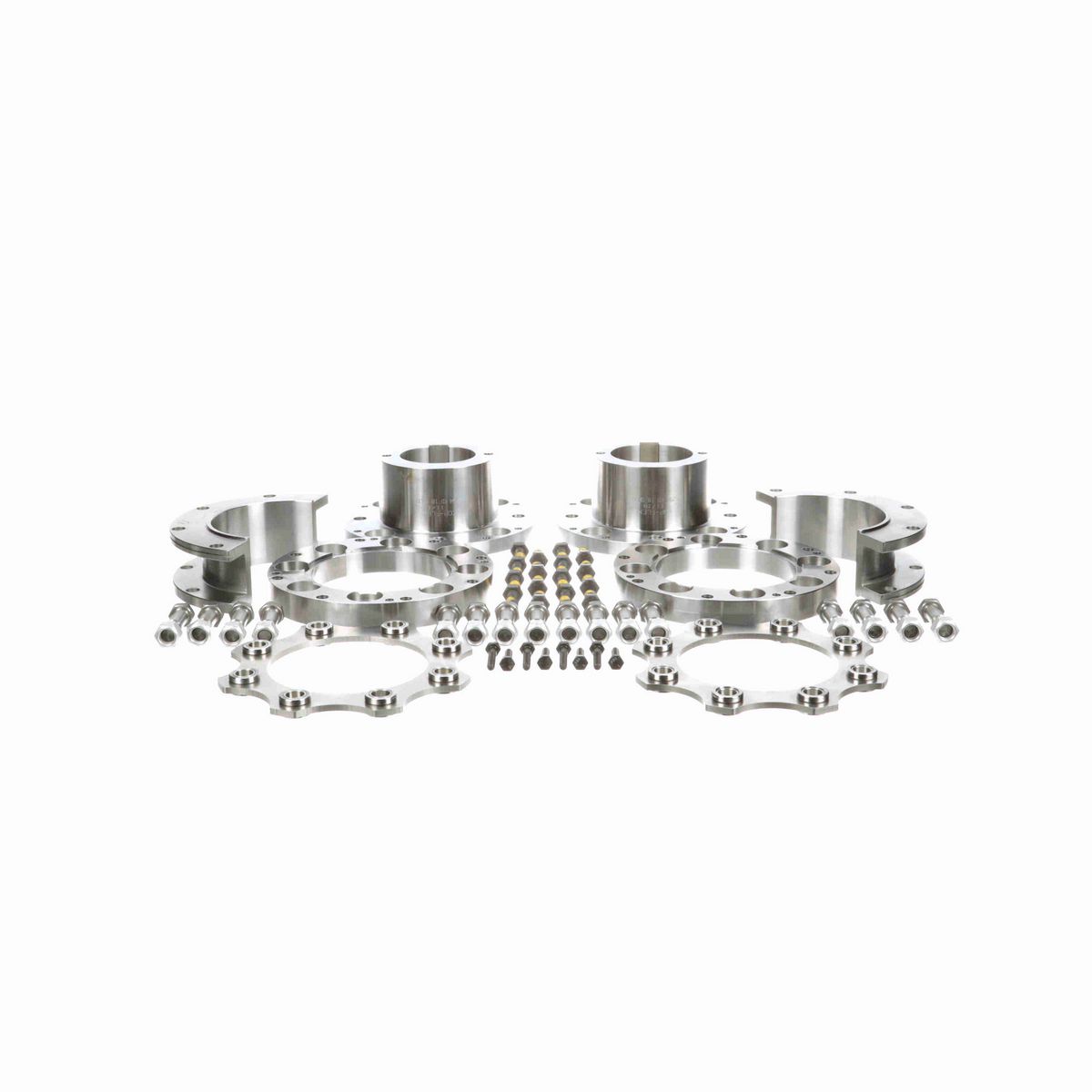

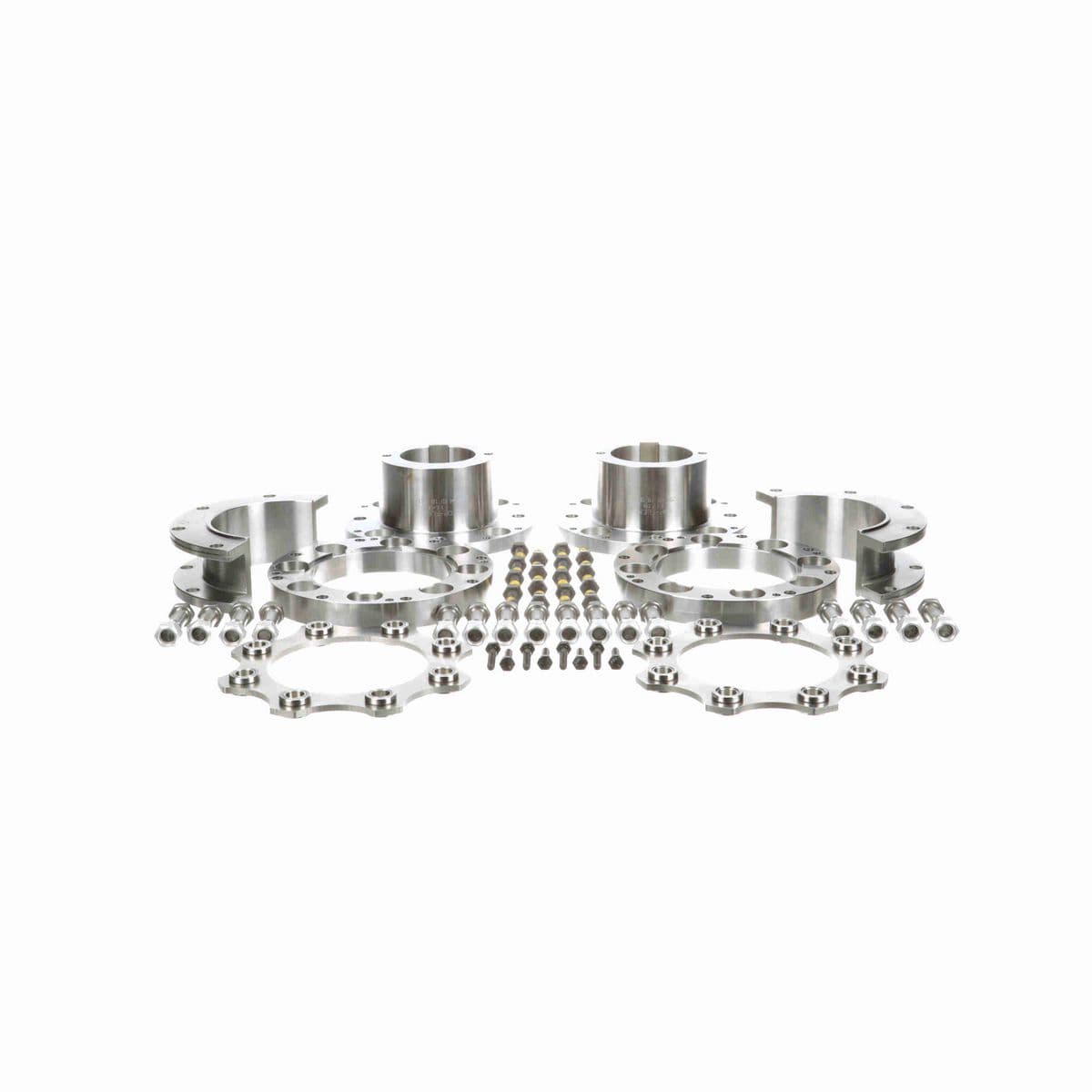

• Close Coupled disc coupling design with reversible hubs to accommodate various shaft separations.
• Semi-Unitized Disc Packs for ease of maintenance, replaceable without moving the connected equipment.
• HS (High Torque, Semi-unitized) disc packs for medium and heavy duty applications.
• Meet AGMA Class 8 balance off the shelf, and may be component balanced to AGMA Class 9.

Technical Specifications

Total Length (One Hub Reverse) (in)	8.72 in
Hub Material	Carbon Steel
Outside Diameter (in)	7.62 in
Bore Type	Finished Bore
Total Length (Std Hub Post) (in)	6.25 in
Total WR2 (lb-in2)	400 psi
Coupling Size	254
Axial Capacity (+/-)	0.14
Configuration	2 standard hubs
Style	KD10
Torque [Max] (ft-lb)	8,667 ft/lbs
Length Through Bore standard hub (in)	3.03 in
Speed Max Balanced (rpm)	5,600 rpm
Torque Rating (in-lb)	52,000 in/lbs
Bore Size Min (in)	1 in

General Specifications

UPC	662384153910
Weight	54.40 LB
